RECEIVING AND TRANSMITTING

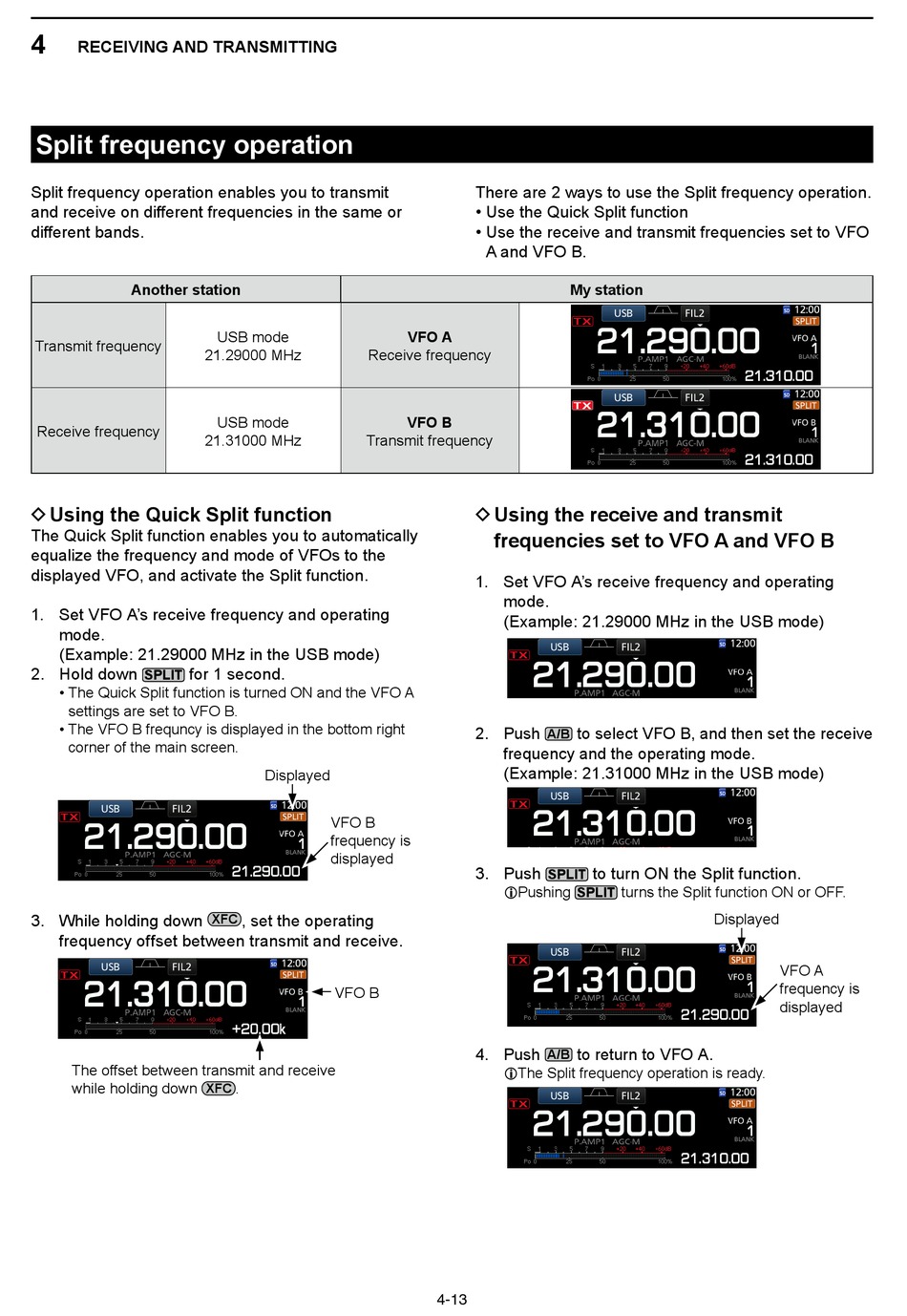

Split frequency operation

Split frequency operation enables you to transmit
and receive on different frequencies in the same or
different bands.
Another station
Transmit frequency
Receive frequency

D Using the Quick Split function

The Quick Split function enables you to automatically
equalize the frequency and mode of VFOs to the
displayed VFO, and activate the Split function.
1. Set VFO A's receive frequency and operating
mode.
(Example: 21.29000 MHz in the USB mode)
2. Hold down for 1 second.
SPLIT
• The Quick Split function is turned ON and the VFO A
settings are set to VFO B.
• The VFO B frequncy is displayed in the bottom right
corner of the main screen.
3. While holding down
frequency offset between transmit and receive.
The offset between transmit and receive
while holding down
USB mode
21.29000 MHz Receive frequency
USB mode
21.31000 MHz Transmit frequency
Displayed
VFO B
frequency is
displayed
, set the operating
XFC
VFO B
.
XFC
There are 2 ways to use the Split frequency operation.
• Use the Quick Split function
• Use the receive and transmit frequencies set to VFO
A and VFO B.
My station
VFO A
VFO B
D Using the receive and transmit
frequencies set to VFO A and VFO B
1. Set VFO A's receive frequency and operating
mode.
(Example: 21.29000 MHz in the USB mode)
2. Push to select VFO B, and then set the receive
A/B
frequency and the operating mode.
(Example: 21.31000 MHz in the USB mode)
3. Push
SPLIT
L Pushing
SPLIT
4. Push to return to VFO A.
A/B
LThe Split frequency operation is ready.
4-13
to turn ON the Split function.
turns the Split function ON or OFF.
Displayed
VFO A
frequency is
displayed
