5.2.2

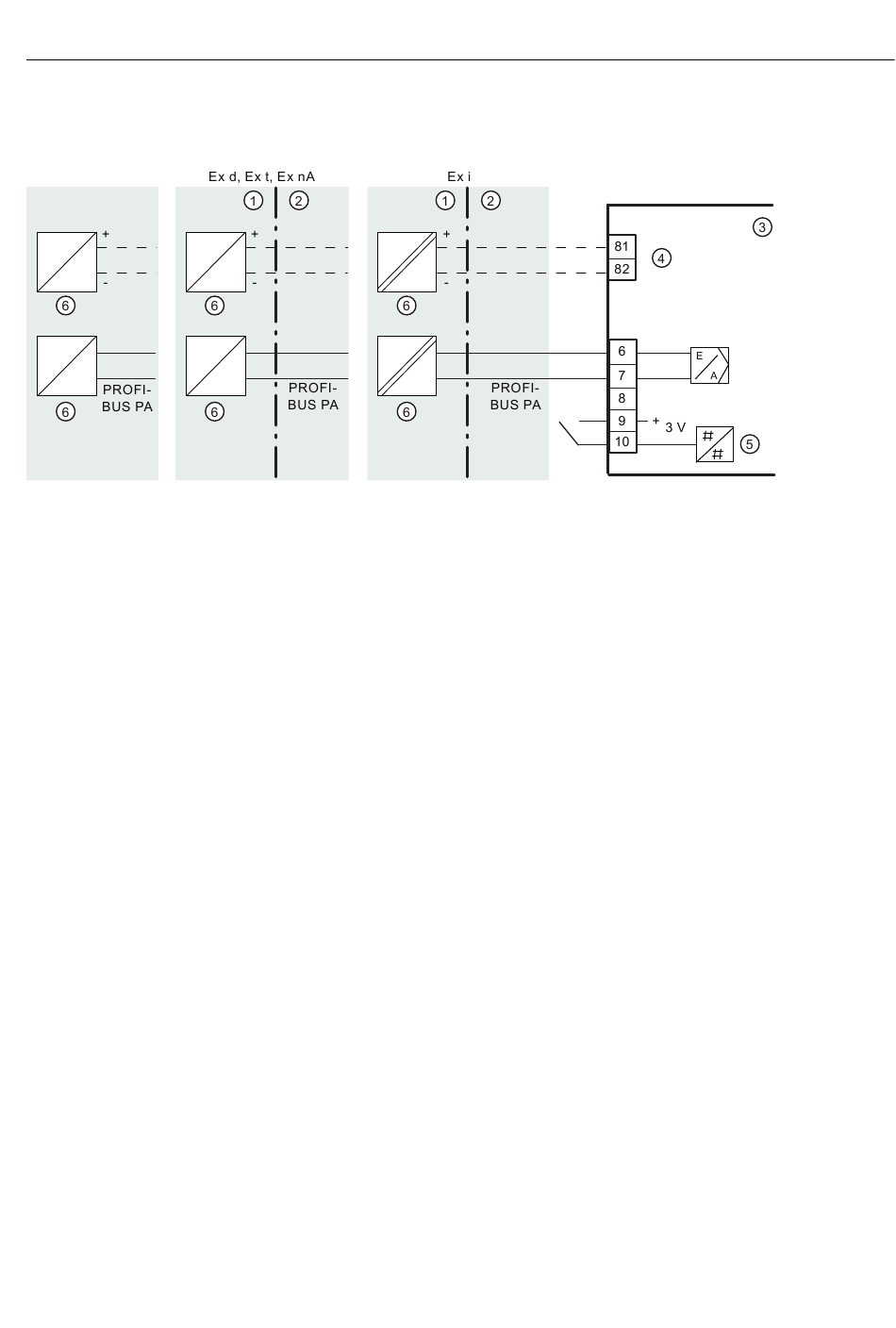

Wiring diagram for basic electronics
①
Non-hazardous area
②
Hazardous area
③
Basic electronics
Figure 5-5
Device version with PROFIBUS PA
SIPART PS2 with PROFIBUS PA
Operating Instructions, 02/2016, A5E00127926-AB
④
Input: Safety shutdown
⑤
Binary input 1
⑥
Signal source
Connect
5.2 Electrical wiring
85
