Exiting Safe Mode

When the administrator wants to exit safe mode, they will also need to return to Quick Setup > Admin

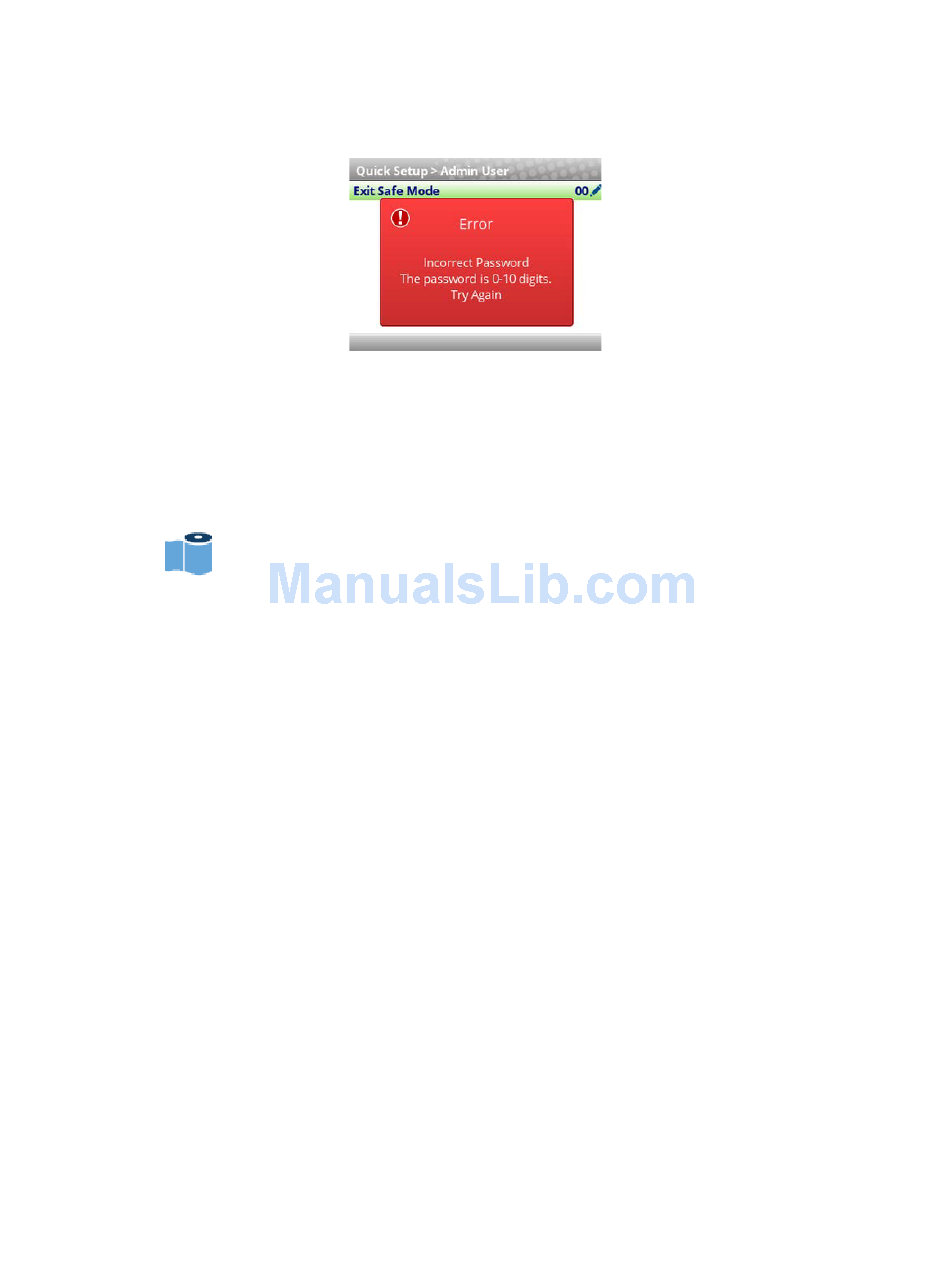

Users section and entering the Password via Quick Setup > Admin Users > Exit Safe Mode. If the wrong
password is entered, the following screen be shown.
There is no lockout if you enter the wrong password several times, so you can continue to try. If you cannot
find or remember the password, then see section "Forgot the Password" on page 61.

Forgot the Password

If you forget the password to exit Safe Mode, then contact your Printronix Customer Support team for more
help unlocking the printer.

Media

IMPORTANT
All distances under Media can be represented in inches or millimeters based on
the menu System > Control > Media Units.

Intro: Label Length

Understanding your media and application is very important when configuring the parameters in the menu
system. When setting label length, consider the following:
Label Length can be manually entered via the control panel Media > Image > Label Length menu or sent
via the host application (e.g., PGL job) using the appropriate software command. If sent via a software
command, that is referred to as a Host Form Length or Logical Label Length.
A Host Forms Length (Label Length) value sent from the host computer can override Media > Image >
Label Length value if the emulation chooses to do so. Often, the emulations will have a menu to configure
that behavior (e.g., Application > PGL Setup > Host Form Length).
Physical Label Length is the actual measurable length of the label. The following list of different media
types explains how the physical label lengths are determined:
•
Die-cut labels – measurable length of the removable label (leading edge to trailing edge). This
does not include the liner material or gap.
•
Tag Stock with notches or holes – measurable length from the trailing edge of one notch or
hole to the leading edge of the next notch or hole.
•
Tag Stock with black marks on underside – measurable length from the leading edge of one
black mark to the leading edge of the next black mark.
•
Continuous media (no label length indicators) – measurable length should be within ± 1-2%
the Label Length value entered in the Media > Image > Label Length menu or the value sent via
host software command.
Logical Label Length (or Host Forms Length) is the length that a user or programmer bases his
printable image on. In most cases this length should be slightly less than the Physical Label Length. This
61
