IMPORTANT
The rewinder supports a maximum diameter of 5 inches of liner. Exceeding this
diameter can cause the liner to rub on the bottom pan. The rewinder is designed
to support the full amount of liner from a standard 8 inch diameter media roll.

Removing Label Liner from the Rewinder

1. Open the media cover.
2. Open the front door.
3. Tear the liner at the tear bar.
4. Manually rewind the remaining liner onto the rewinder by turning the rewinder counterclockwise.
5. Turn the release lever on the rewinder clockwise.
6. Slide the roll of label liner off the rewinder and discard.

Removing the Paper Path

Remove the paper path from the front door when using Tear-Off or Tear-Off Strip media handling, because
you will need to tear the label downward against the tear bar.

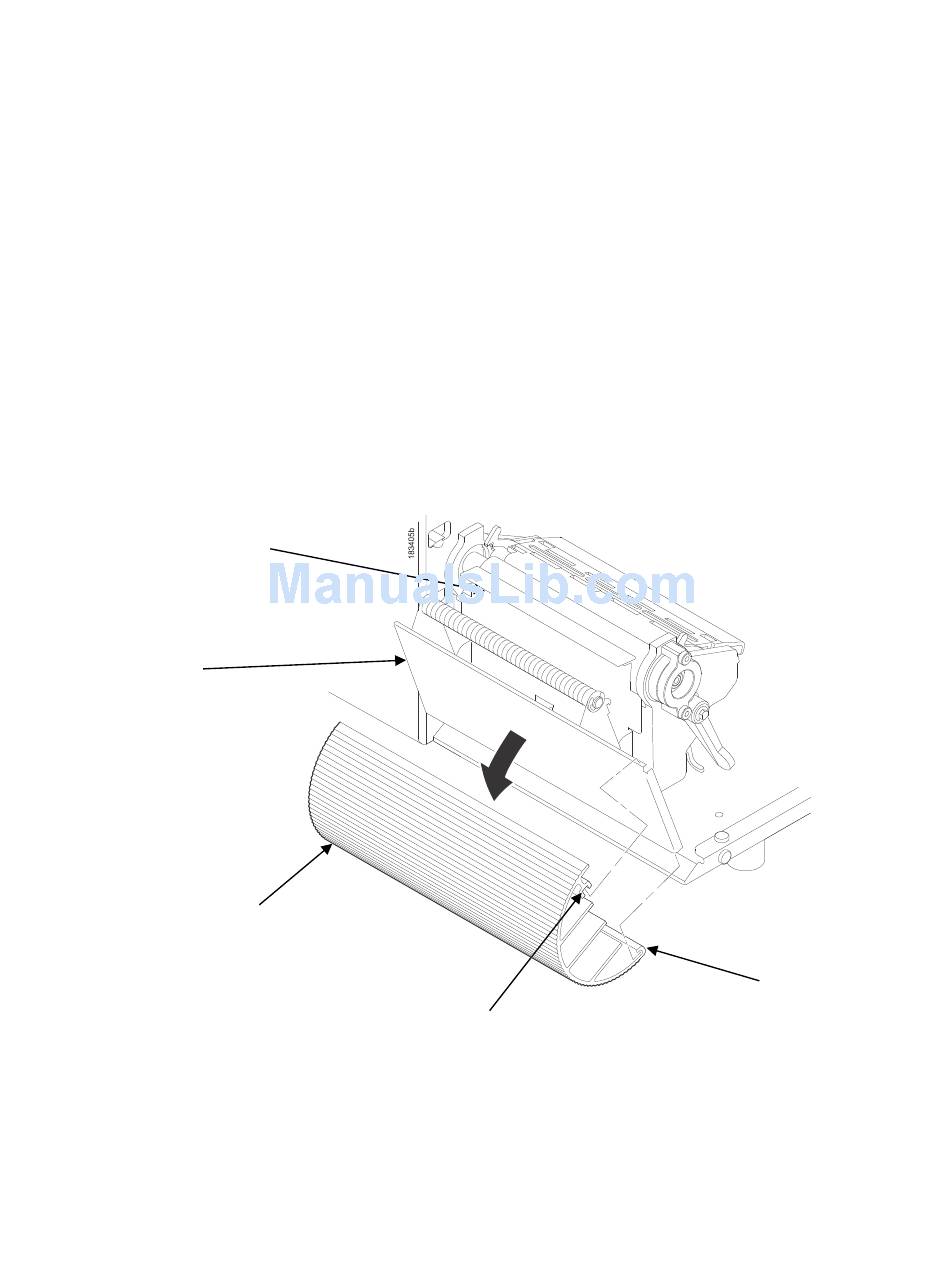

Tear Bar
Front Door
Paper
Path
1. Open the front door by pulling it upward, then forward.
2. Grasp the upper right corner of the paper path and pry it off of the top of the front door.
3. After removing the paper path, close the front door.
4. Open the pivoting deck and load paper and ribbon normally.
