Gap Sensing - Printronix t8000 Administrator's Manual

Paper Out (578)
Gap Mark (421)

Gap Sensing

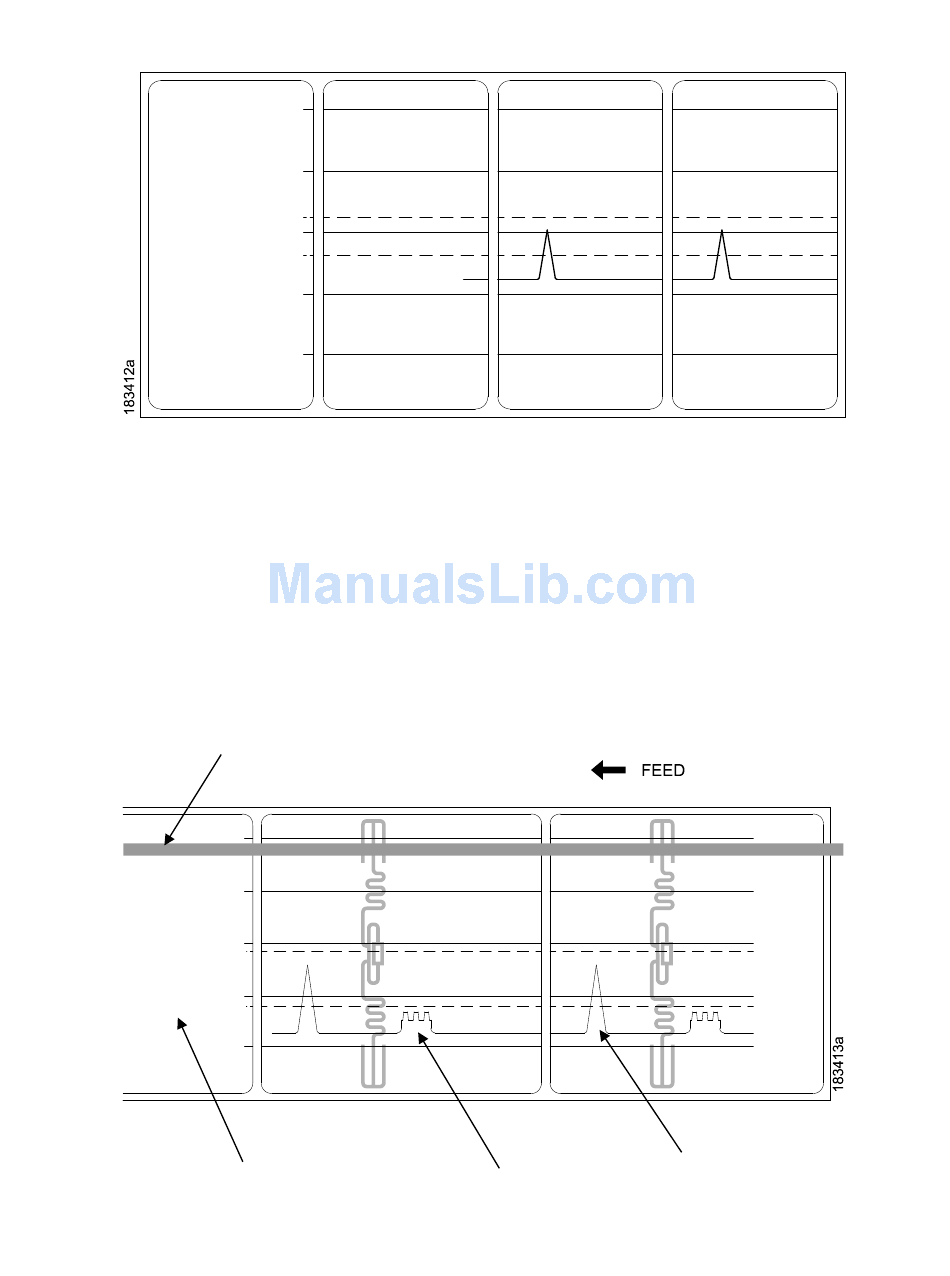

This figure shows a Media Profile printout of a smart label where Gap/Mark Sensor is set to Gap in the
Sensors > Control menu.
In this example, the gap threshold value the printer selected (represented by the Gap/Mark dotted line) is
too close to the amplitude of the antenna pulse. This may cause the printer to falsely use the antenna as
the gap (top-of-form).
Media Sensor
Position
1023
0767
0511
Paper Out (441)
0255
Gap (209)
0000
Indicates Type of Gap/Mark
Sensing Selected
1023
0767
1
0
2
3
0511
0
0255
7
6
7
0000
Figure 3 Media Profile Printout
Detected Amplitude
Detected Amplitude
of the Antenna
of the Gap
43
