Printronix t8000 Administrator's Manual page 275

I. Tag Specification
(Mark Sensing)
Black Mark (on underside)
Direction of Media Motion
A Label Width Range
B Backing Width Range
C Min. Gap/Hole/Notch Height
K Min. Refl. Mark Height
I Min Refl. Mark Width
E Media Thickness Range
G Width of Inter-label gap/hole
II. Tag Specification
(Gap Sensing)
Direction of Media Motion

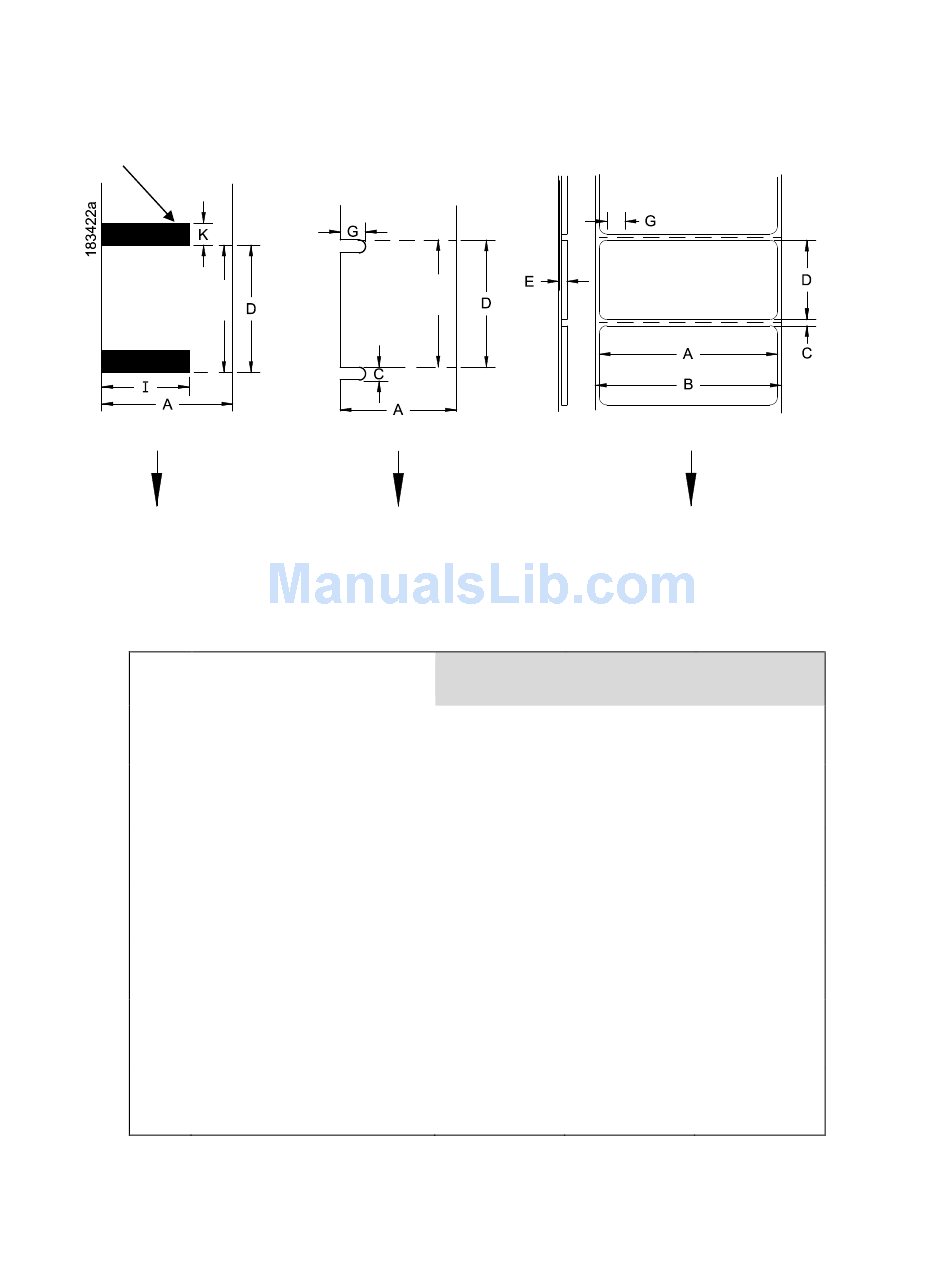

Figure 23 Media Dimensions
Table 16. Media Specifications
T8X04
1.00 -4.5 in.
19.1-114.3 mm
0.75-4.5 in.
19.1-114.3 mm
0.10 in.
2.54 mm
0.10 in.
2.54 mm
0.5 in.
12.7 mm
.0025-.010 in.
.0635-.254 mm
0.25-0.50 in.
.0635-12.7 mm
III. Label Specification
(Gap Sensing)
Direction of Media Motion
T8X06 T8X08
2.0-6.8 in. 3.0-8.75 in.
50.8-172.7 mm 76.2-222.3 mm
2.0-6.8 in. 3.0-8.75 in.
50.8-172.7 mm 76.2-222.3 mm
0.10 in. 0.10 in.
2.54 mm 2.54 mm
0.10 in. 0.10 in.
2.54 mm 2.54 mm
0.5 in. 0.5 in.
12.7 mm 12.7 mm
.0025-.010 in. .0025-.010 in.
.0635-.254 mm .0635-.254 mm
0.25-0.50 in 0.25-0.50 in
6.35-12.7 mm 6.35-12.7 mm
275
