HTML Configuration and Control, cont'd
3.
4.
When the uploading process is complete, the Uploading... button on the screen
changes back to Upload.
N As an alternative method of updating the MGP's firmware, you can use the

Using the File Management Page

The File Management page lets you upload files to the MGP 464 from your
computer or network, and to delete files from the unit. You can also upload
personalized Web pages via this screen. To access the File Management page, select
the File Management tab on the MGP 464 Web page.
You can use this function to load background images from your computer or the
internet to display on the output screen. All background image files must be 24-bit
bitmaps. The image files must be loaded to a folder named "nortxe-graphics."

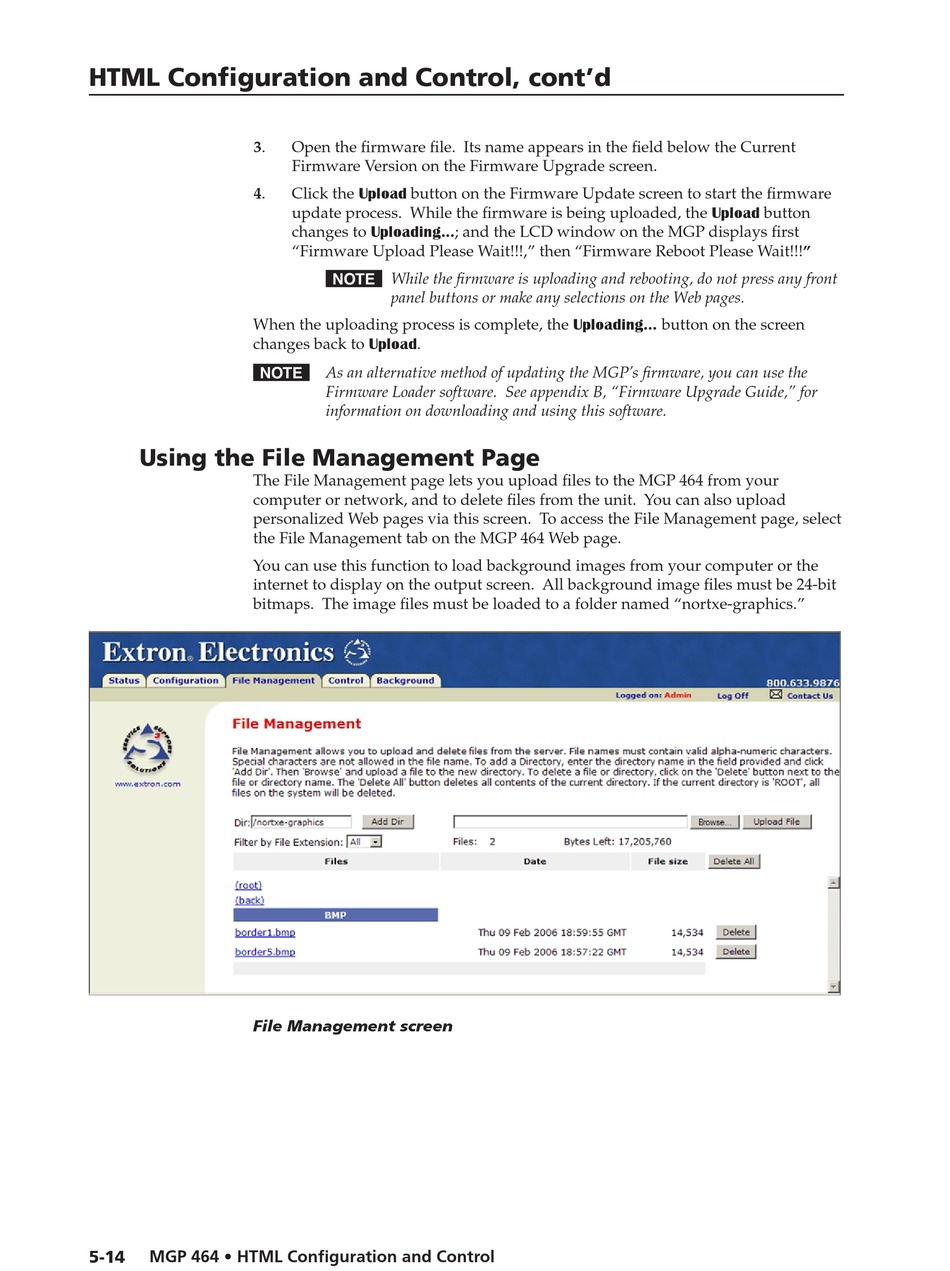

File Management screen
5-14 MGP 464 • HTML Configuration and Control
Open the firmware file. Its name appears in the field below the Current
Firmware Version on the Firmware Upgrade screen.
Click the Upload button on the Firmware Update screen to start the firmware
update process. While the firmware is being uploaded, the Upload button
changes to Uploading...; and the LCD window on the MGP displays first
"Firmware Upload Please Wait!!!," then "Firmware Reboot Please Wait!!!"
N While the firmware is uploading and rebooting, do not press any front
panel buttons or make any selections on the Web pages.
Firmware Loader software. See appendix B, "Firmware Upgrade Guide," for
information on downloading and using this software.
