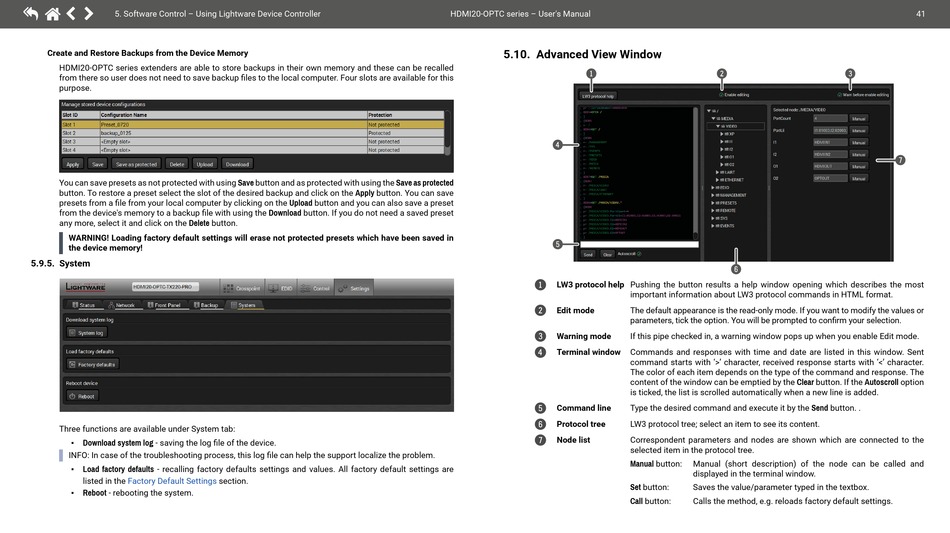

5. Software Control – Using Lightware Device Controller
Create and Restore Backups from the Device Memory
HDMI20-OPTC series extenders are able to store backups in their own memory and these can be recalled
from there so user does not need to save backup files to the local computer. Four slots are available for this
purpose.
You can save presets as not protected with using Save button and as protected with using the Save as protected
button. To restore a preset select the slot of the desired backup and click on the Apply button. You can save
presets from a file from your local computer by clicking on the Upload button and you can also save a preset
from the device's memory to a backup file with using the Download button. If you do not need a saved preset
any more, select it and click on the Delete button.
WARNING! Loading factory default settings will erase not protected presets which have been saved in
the device memory!
5.9.5. System
Three functions are available under System tab:
Download system log - saving the log file of the device.
▪
INFO: In case of the troubleshooting process, this log file can help the support localize the problem.
▪ Load factory defaults - recalling factory defaults settings and values. All factory default settings are
listed in the Factory Default Settings
Reboot - rebooting the system.
▪
section.
HDMI20-OPTC series – User's Manual
5.10. Advanced View Window
1
4
5
LW3 protocol help Pushing the button results a help window opening which describes the most
1
2 Edit mode
3 Warning mode
4 Terminal window
5 Command line
6 Protocol tree
7 Node list
2
6
important information about LW3 protocol commands in HTML format.
The default appearance is the read-only mode. If you want to modify the values or
parameters, tick the option. You will be prompted to confirm your selection.
If this pipe checked in, a warning window pops up when you enable Edit mode.
Commands and responses with time and date are listed in this window. Sent
command starts with '>' character, received response starts with '<' character.
The color of each item depends on the type of the command and response. The
content of the window can be emptied by the Clear button. If the Autoscroll option
is ticked, the list is scrolled automatically when a new line is added.
Type the desired command and execute it by the Send button. .
LW3 protocol tree; select an item to see its content.
Correspondent parameters and nodes are shown which are connected to the
selected item in the protocol tree.
Manual button: Manual (short description) of the node can be called and
displayed in the terminal window.
Set button: Saves the value/parameter typed in the textbox.
Call button: Calls the method, e.g. reloads factory default settings.
41
