3. Installation

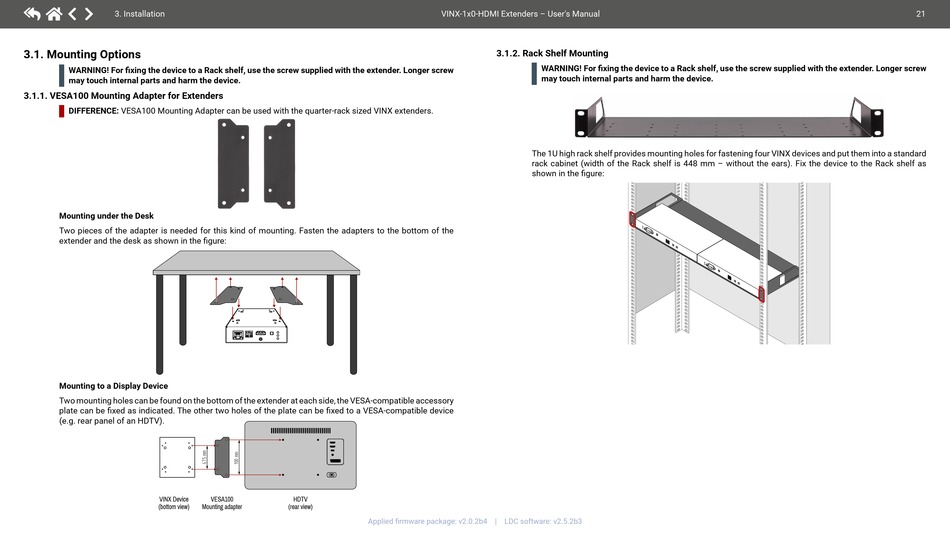

3.1. Mounting Options

WARNING!
For fixing the device to a Rack shelf, use the screw supplied with the extender. Longer screw
may touch internal parts and harm the device.

3.1.1. VESA100 Mounting Adapter for Extenders

DIFFERENCE:
VESA100MountingAdaptercanbeusedwiththequarter-racksizedVINXextenders.
Mounting under the Desk
Two pieces of the adapter is needed for this kind of mounting. Fasten the adapters to the bottom of the
extenderandthedeskasshowninthefigure:
Mounting to a Display Device
Two mounting holes can be found on the bottom of the extender at each side, the VESA-compatible accessory
platecanbefixedasindicated.TheothertwoholesoftheplatecanbefixedtoaVESA-compatibledevice
(e.g. rear panel of an HDTV).
VINX Device
(bottom view) Mounting adapter
VESA100 HDTV
(rear view)
Appliedfirmwarepackage:v2.0.2b4 | LDCsoftware:v2.5.2b3
VINX-1x0-HDMI Extenders – User's Manual

3.1.2. Rack Shelf Mounting

WARNING! For fixing the device to a Rack shelf, use the screw supplied with the extender. Longer screw
may touch internal parts and harm the device.
The 1U high rack shelf provides mounting holes for fastening four VINX devices and put them into a standard
rackcabinet(widthoftheRackshelfis448mm–withouttheears).FixthedevicetotheRackshelfas
showninthefigure:
