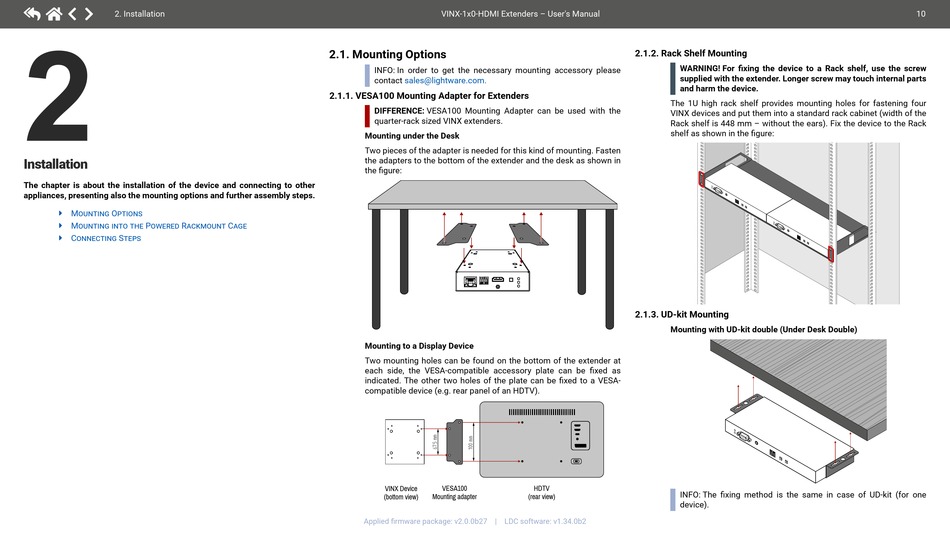

2. Installation

2
Installation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps.
ç MountingOptions
ç MountingintothePoweredRackmountCage
ç ConnectingSteps
VINX-1x0-HDMI Extenders – User's Manual

2.1. Mounting Options

INFO: In order to get the necessary mounting accessory please
contact sales@lightware.com.

2.1.1. VESA100 Mounting Adapter for Extenders

DIFFERENCE:
VESA100 Mounting Adapter can be used with the
quarter-racksizedVINXextenders.
Mounting under the Desk
Two pieces of the adapter is needed for this kind of mounting. Fasten
the adapters to the bottom of the extender and the desk as shown in
thefigure:
Mounting to a Display Device
Two mounting holes can be found on the bottom of the extender at
each side, the VESA-compatible accessory plate can be fixed as
indicated.The other two holes of the plate can be fixed to a VESA-
compatible device (e.g. rear panel of an HDTV).
VINX Device VESA100
(bottom view) Mounting adapter
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2

2.1.2. Rack Shelf Mounting

WARNING!
supplied with the extender. Longer screw may touch internal parts
and harm the device.
The 1U high rack shelf provides mounting holes for fastening four
VINX devices and put them into a standard rack cabinet (width of the
Rackshelfis448mm–withouttheears).FixthedevicetotheRack
shelfasshowninthefigure:

2.1.3. UD-kit Mounting

Mounting with UD-kit double (Under Desk Double)
HDTV
INFO:
The fixing method is the same in case of UD-kit (for one
(rear view)
device).
For fixing the device to a Rack shelf, use the screw
