7558-xxx

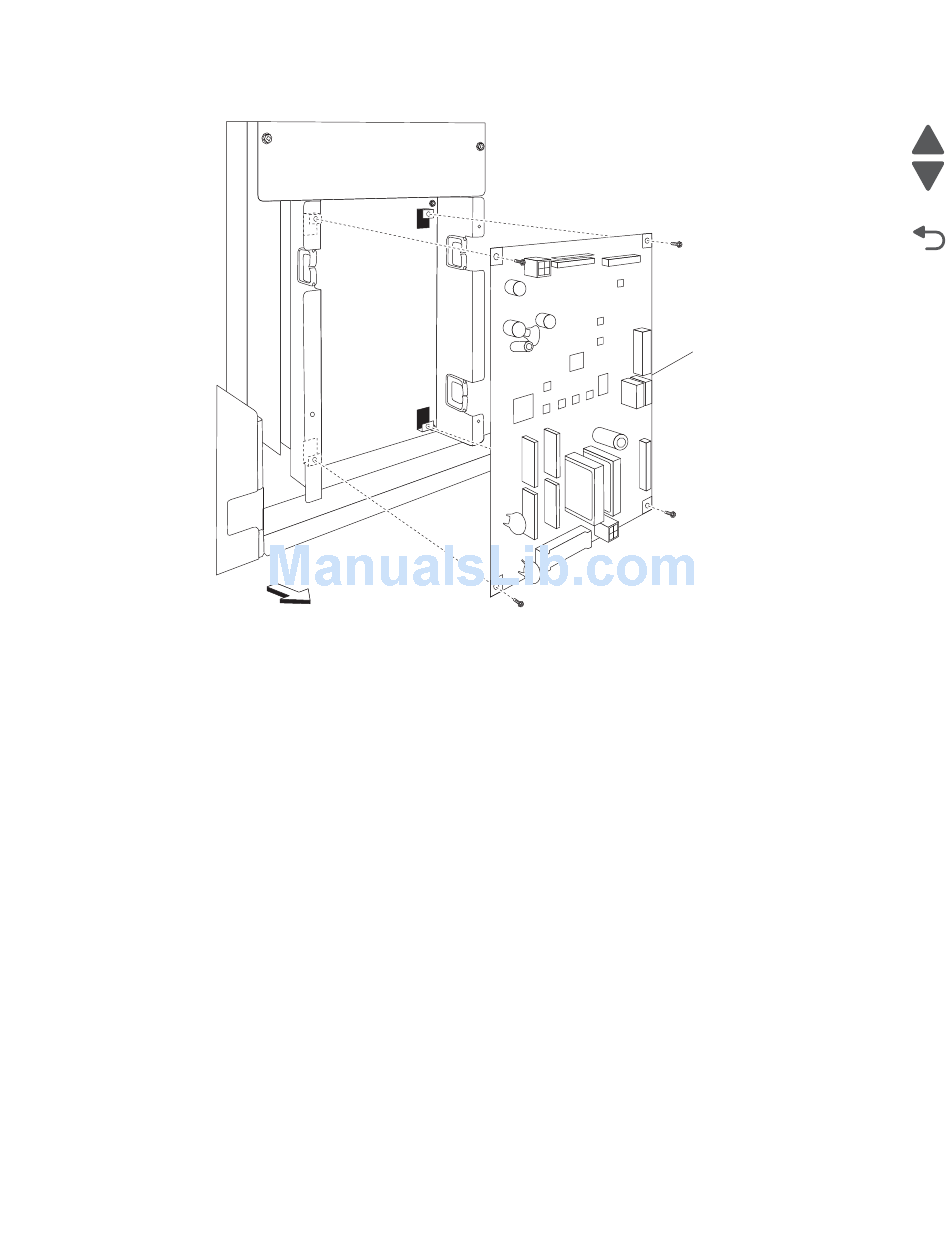

Remove the booklet controller card assembly (A).
7.
Booklet diverter gate removal
Remove the rear upper cover. See
1.
2.
Remove the two screws securing the booklet diverter gate (A) to the machine.
Remove the booklet diverter gate (A).
3.
Release the harness from the clamp.
4.
Service Manual
4-326
Rear
"Rear upper cover removal" on page
A
4-383.
