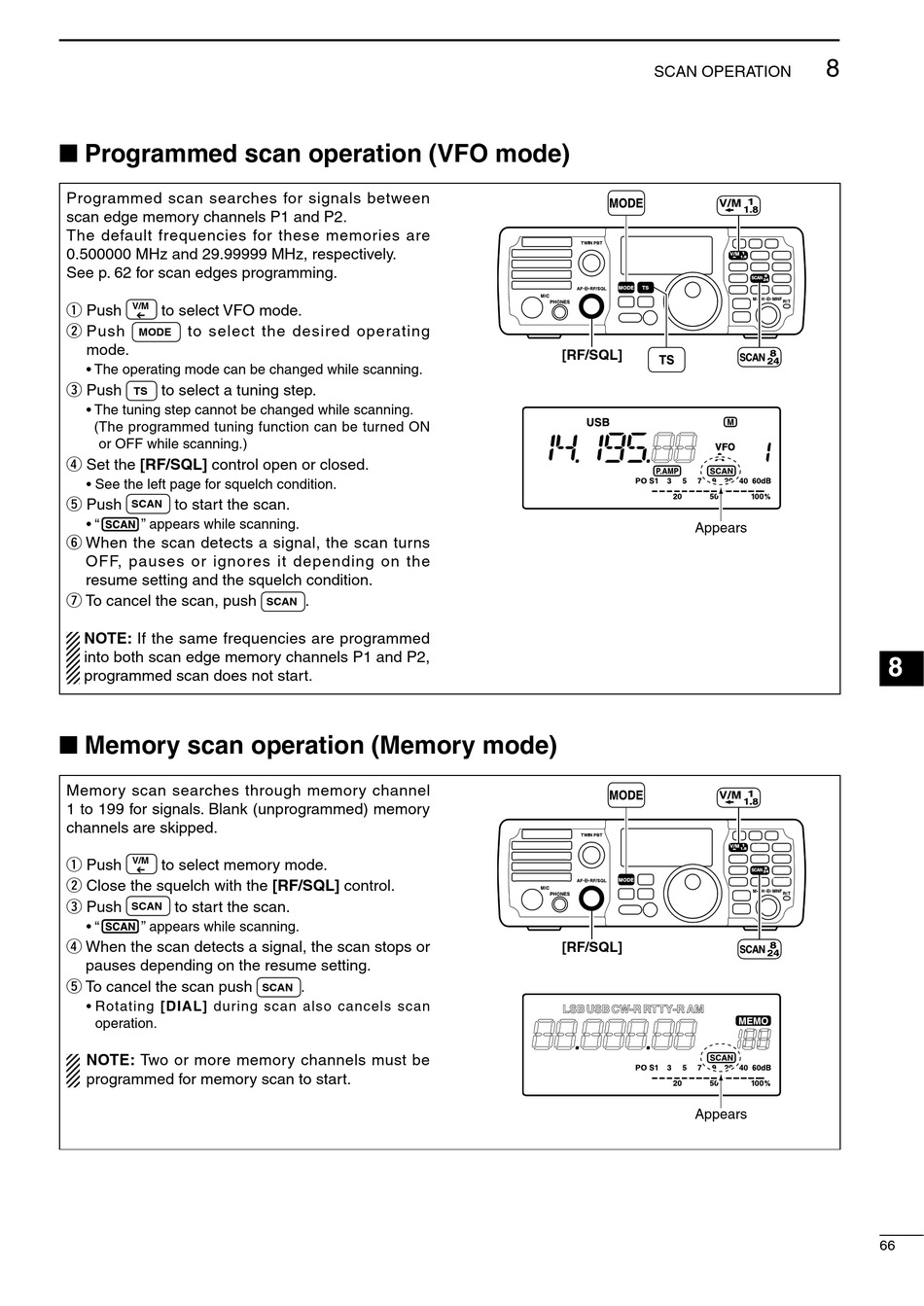

■ Programmed scan operation (VFO mode)

Programmed scan searches for signals between
scan edge memory channels P1 and P2.
The default frequencies for these memories are
0.500000 MHz and 29.99999 MHz, respectively.
See p. 62 for scan edges programming.
V/M
q Push to select VFO mode.
➔
w Push to select the desired operating
MODE
mode.
• The operating mode can be changed while scanning.
e Push to select a tuning step.
TS
• The tuning step cannot be changed while scanning.
( The programmed tuning function can be turned ON
or OFF while scanning.)
r Set the [RF/SQL] control open or closed.
• See the left page for squelch condition.
t Push to start the scan.
SCAN
• " " appears while scanning.
y When the scan detects a signal, the scan turns
OFF, pauses or ignores it depending on the
resume setting and the squelch condition.
u To cancel the scan, push
NOTE: If the same frequencies are programmed
into both scan edge memory channels P1 and P2,
programmed scan does not start.

■ Memory scan operation (Memory mode)

Memory scan searches through memory channel
1 to 199 for signals. Blank (unprogrammed) memory
channels are skipped.
q Push V/M to select memory mode.
➔
w Close the squelch with the [RF/SQL] control.
e Push to start the scan.
SCAN
• " " appears while scanning.
r When the scan detects a signal, the scan stops or
pauses depending on the resume setting.
t To cancel the scan push
• Rotating [DIAL] during scan also cancels scan
operation.
NOTE: Two or more memory channels must be
programmed for memory scan to start.
.
SCAN
.
SCAN
SCAN OPERATION
NB
V/M
MW
COMP
MODE TS
RIT
TUNER FILTER P.AMP
M-CH/RIT
SPCH
[RF/SQL]
Appears
NB
V/M
MW
COMP
MODE TS
RIT
TUNER FILTER
P.AMP
M-CH/RIT
SPCH
[RF/SQL]
Appears
8
NR ANF
METER
1 A/B 2 3
SPLIT
= 3.5
1.8 7
4 5 6
M-CL AGC
10 14 18
7
8 9
SCAN VOX
21 24 28
.
0
F-INP ENT
MNF
GENE 50
BAND
ATT
SET
1
2
3
4
5
6
7
8
9
10
11
12
NR ANF
METER
1 A/B 2 3
SPLIT
=
1.8 3.5 7
13
4 5 6
M-CL AGC
10
14 18
7 8 9
SCAN VOX
21 24 28
.
0 F-INP ENT
MNF
GENE 50
BAND
14
ATT
SET
15
16
17
18
19
20
21
66
