6. Other
6.3.44

Tray 2 Vertical Transport Motor (M103)

[2]
[1]
[5]
[6]
100
[3]
4037F2C095DA
[4]
4037F2C096DA
[7]
4037F2C098DB
Field Service Ver. 1.0 Mar. 2005

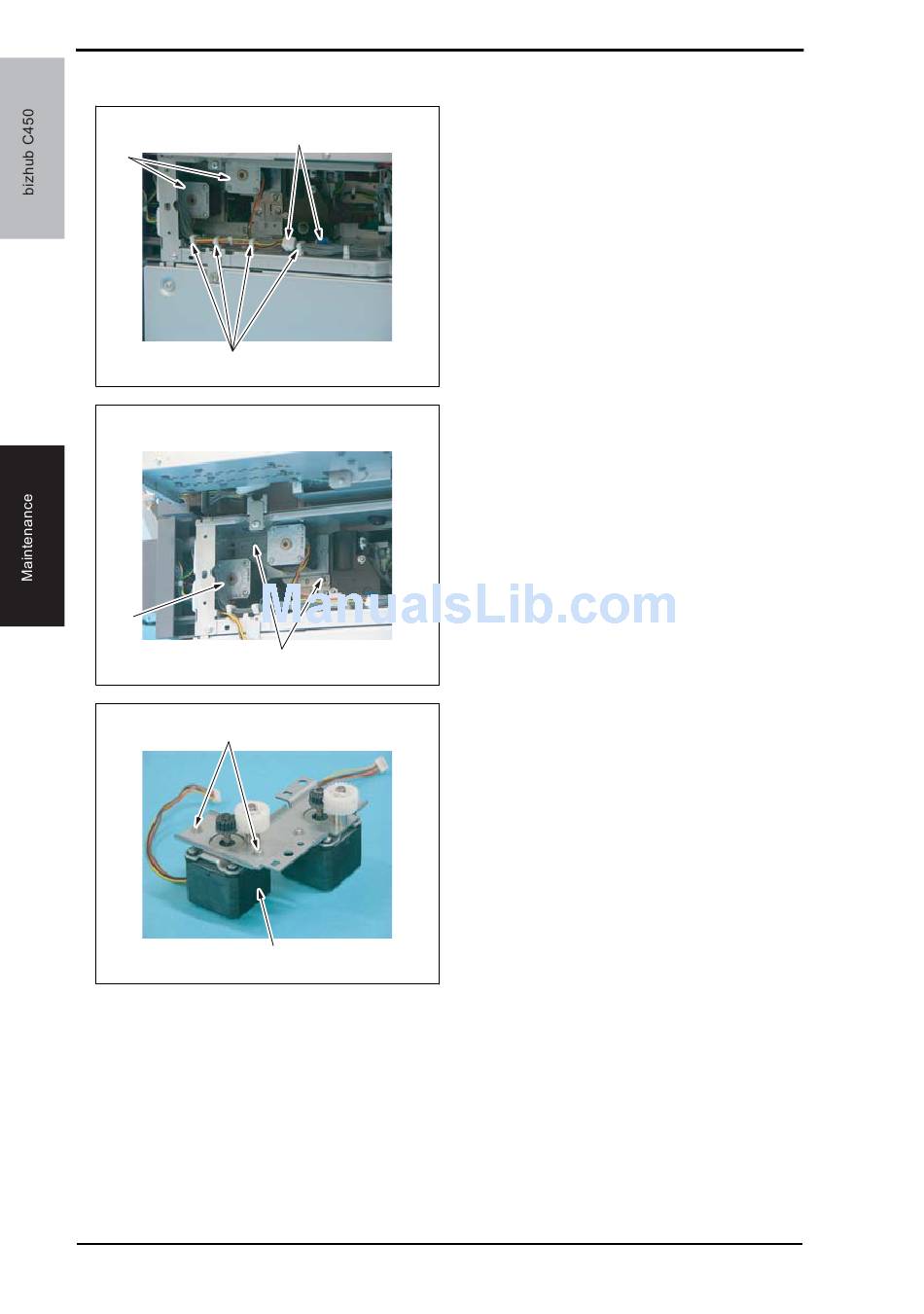

1. Pull out the Tray 2.
2. Remove the Tray 2 Rear Cover.
☞ 52
3. Remove the Harness Assy [2] from
four wire saddles [1].
4. Remove two connectors [3].
5. Remove two screws [4] and the
Motor Assy [5].
6. Remove two screws [6] and the Tray
2 Vertical Transport Motor [7].
