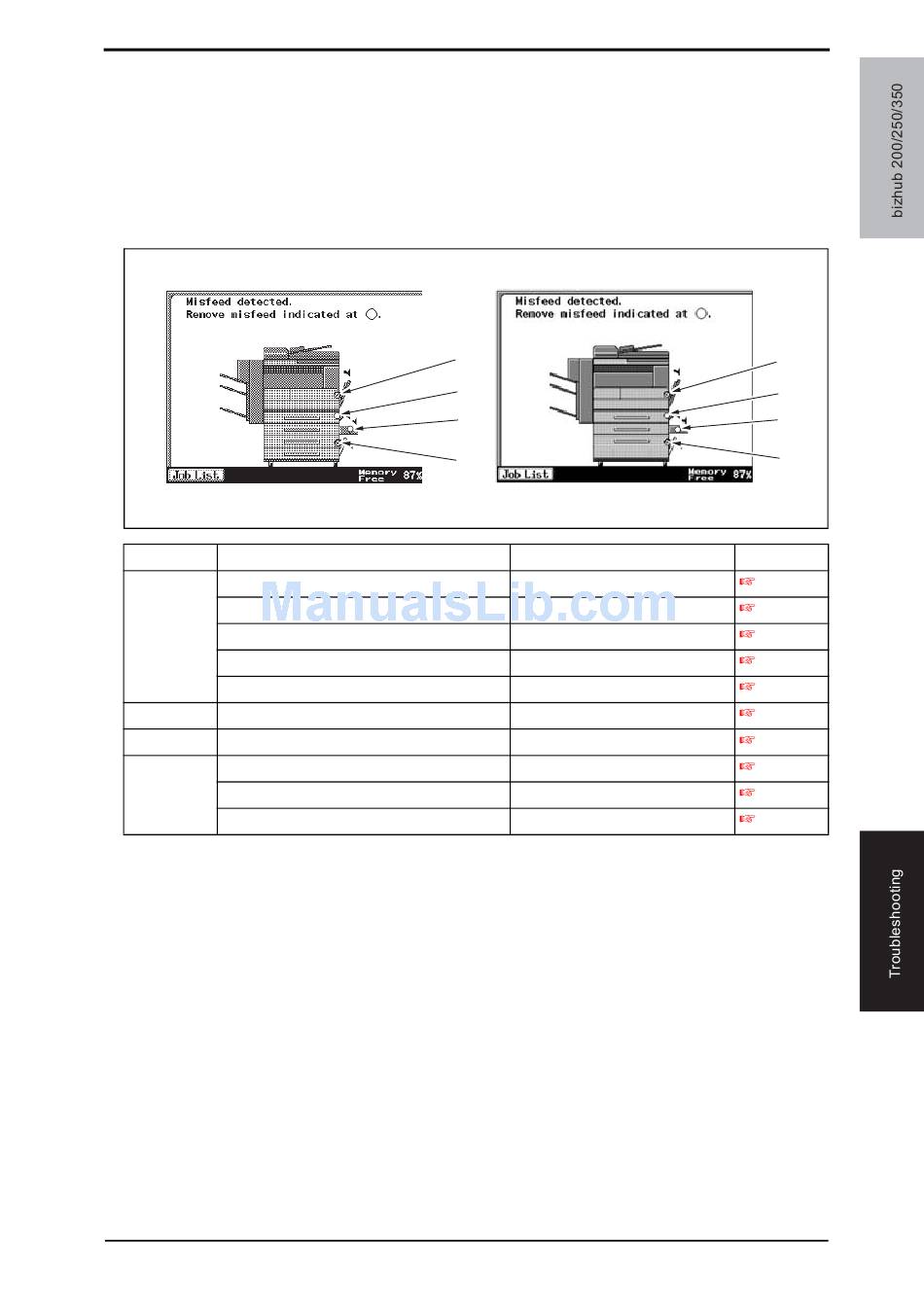

18. Jam Display
18.1 Misfeed Display
• When a paper misfeed occurs, the misfeed message, misfeed location, and paper loca-
tion are displayed on the Touch Panel of the machine.
Display
Tray 1 take-up section
Image Transfer section
[1] Fusing/Paper Exit section
Duplex Unit transport section
Duplex Unit take-up section
[2] Tray 2 take-up/Vertical Transport section
[3] Manual Bypass take-up section
Tray 3 take-up section
[4] Tray 4 take-up section
LCT take-up section
18.1.1 Misfeed Display Resetting Procedure
• Open the corresponding door, clear the sheet of paper misfeed, and close the
door.
[1]
[2]
[3]
[4]
Misfeed Location Misfeed Processing Location
Right Lower Door
Right Door
Right Door
Duplex Unit Right Door
Duplex Unit Right Door
Right Lower Door
Manual Bypass Slide Board
Paper Feed Unit Right Door
Paper Feed Unit Right Door
LCT Right Door
18. Jam Display
[1]
[2]
[3]
[4]
