Develop ineo 250 Service Manual Field page 41

1. System configuration

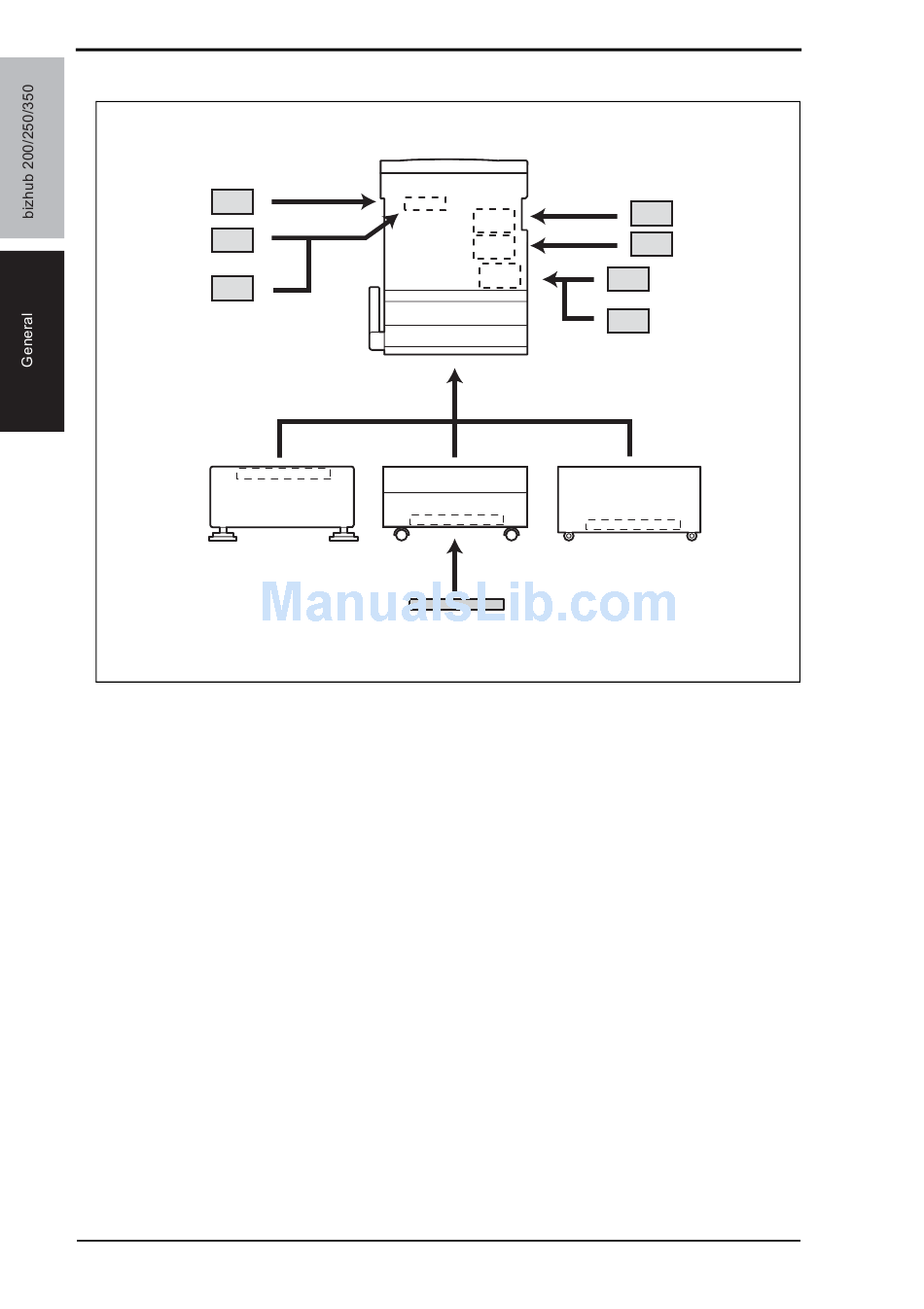

2/2 System Rear View
[9]
[8]
[7]
DK-501
[1] Machine
[2] Fax Kit (FK-503)
[3] Fax Multi Line (ML-502)
[4] Local Interface kit (EK-502)
*1:The Expanded Memory Unit and Scanner Unit cannot be mounted at the same time.
2
Field Service Ver. 1.0 Aug. 2005
[1]
PC-202
[6]
[5] Dehumidifier Heater 1C
[6] Scanner Unit (SU-501)*2
Expanded Memory Unit
[7]
(EM-303/EM-304/EM-305)*2
[8] Hard Disk (HD-504)
[2]
[3]
[4]
[5]
PC-402
4040T1J504AA
