6. Firmware upgrade
6.2.2

Engine

NOTE
• Make sure that the MSC firmware has not been copied to the compact flash card.
• To upgrade both the engine firmware and Finisher firmware at the same time, they
must first be copied onto a single compact flash.
For the Finisher firmware upgrading procedures, see FS-508 Service Manual.
• If the files copied to the compact flash card are those of either the engine or Fin-
isher, or wrong, no screen display is given and thus no firmware can be down-
loaded.
[1]
[2]
44

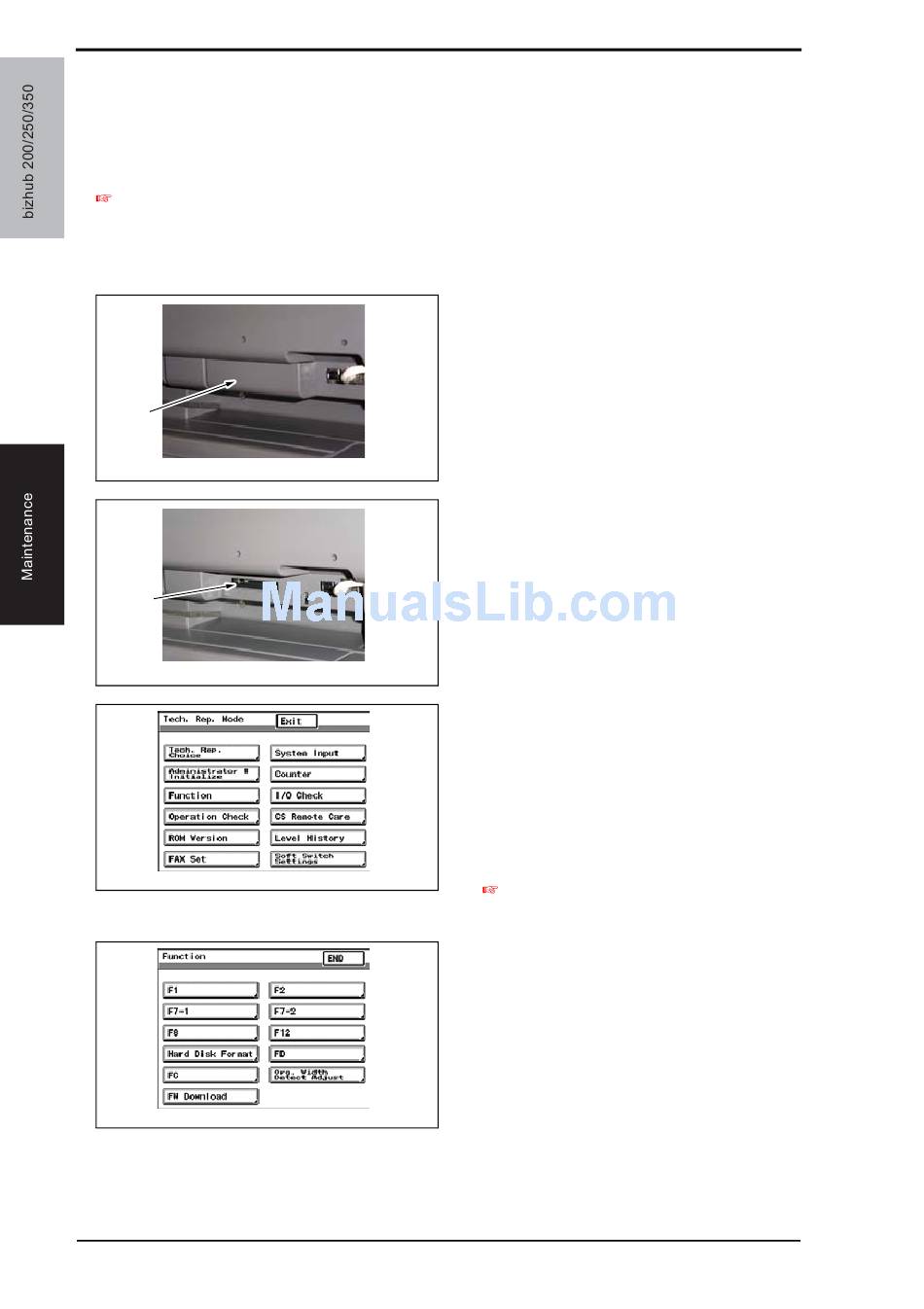

1. Turn OFF the main power switch.
2. Remove the Compact flash Cover
[1].
4040F2C596DA
3. Insert the compact flash card [2], to
which the engine upgrading files
have been copied, into the slot.
4040F2C597DA
4. Open the Right Door.
NOTE
• Be sure to open the Right Door
before turning ON the main power
switch.
5. Turn ON the main power switch.
6. Call the Tech. Rep. Mode to the
screen.
4040F2E767DA
148
7. Touch [Function].
8. Touch [FW Download].
4040F2E766DA
