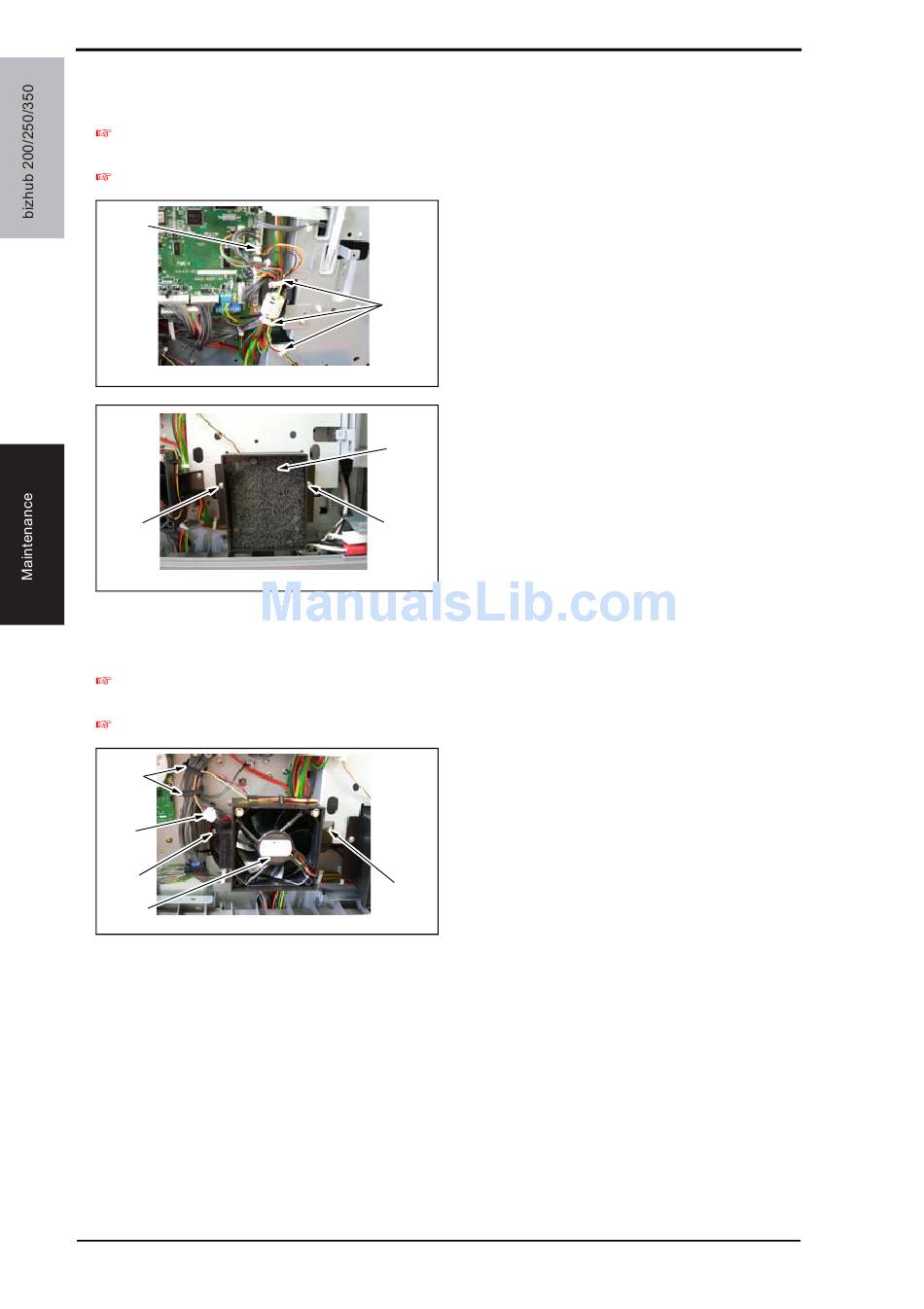

Fusing Unit Cooling Fan Motor

1. Remove the Upper Rear Cover.
50
2. Remove the Rear Cover.
51
[2]
[3]
7.3.37

Toner Suction Fan Motor

1. Remove the Upper Rear Cover.
50
2. Remove the Rear Cover.
51
[2]
[3]
[1]
[4]
86
3. Remove three wiring saddles [1] and
disconnect the connector (PJ33) [2].
[1]
4040F2C622DA
4. Remove two screws [3] and the Fus-
ing Unit Cooling Fan Motor [4].
[4]
[3]
4040F2C623DA
3. Remove two screws [1] and two wir-
ing saddles [2], disconnect the con-
nector [3], and remove the Toner
Suction Fan Motor [4].
[1]
4040F2C621DA
