Exposure Lamp - Develop ineo 250 Service Manual Field

Field Service Ver. 1.0 Aug. 2005
7.3.32

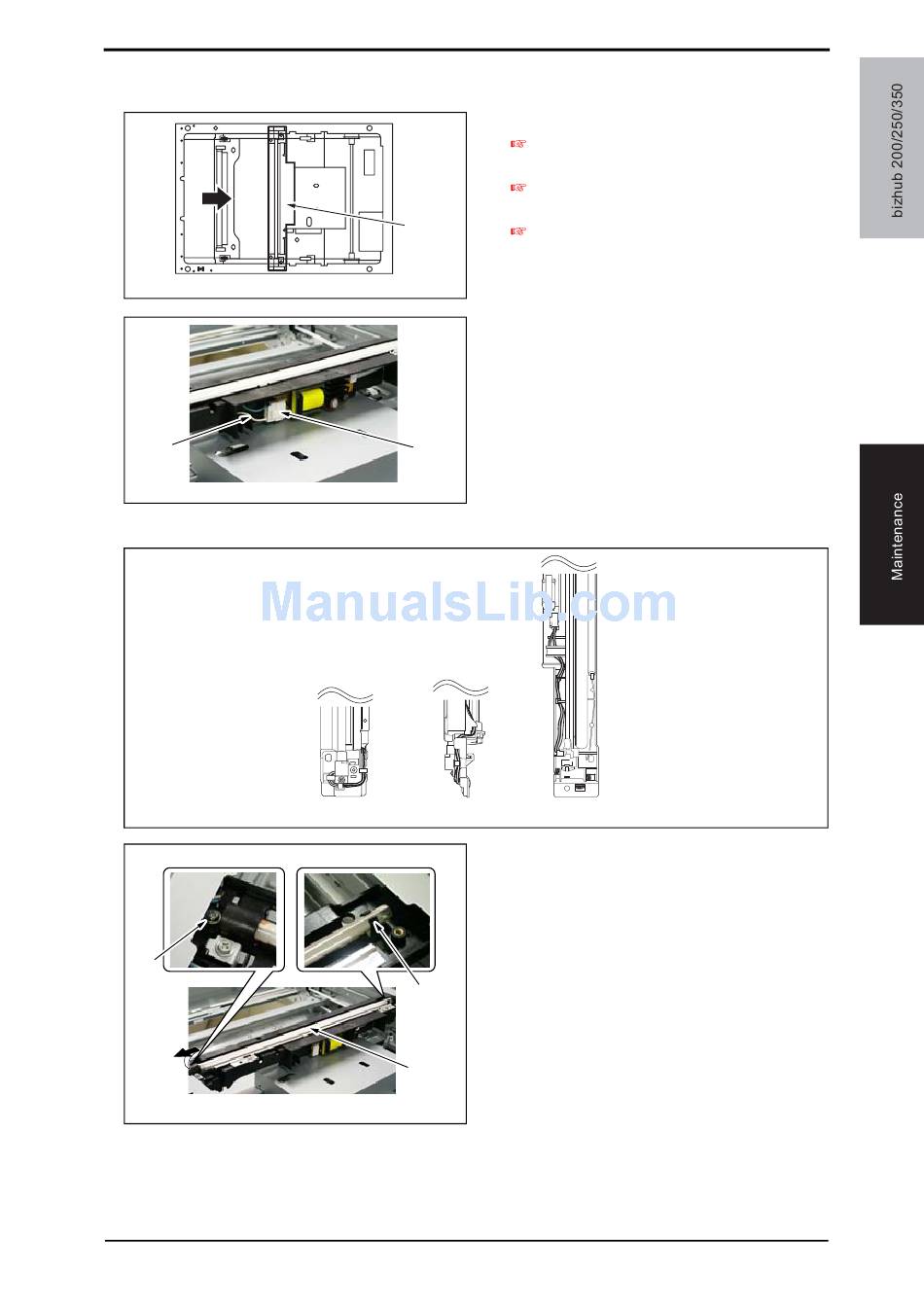

Exposure Lamp

[3]
• Reinstall the Exposure Lamp harness as follows.
[4]
[1]
4040F2C705DA
[2]
4040F2C709DA
Front View Side View
[6]
[5]
4040F2C710DA
1. Remove the IR Upper Left Cover.
49
2. Remove the Front Holding Bracket.
49
3. Remove the Original Glass.
49
4. Move the Exposure Unit [1] to the
removal position.
5. Disconnect the connector [2] and
remove the Exposure Lamp harness
[3].
Back View
6. Remove the screw [4].
7. Slide the Exposure Lamp [5] to the
front and pull it off the holder [6].
7. Other
4040F2C706DA
79
