Field Service Ver. 1.0 Aug. 2005

17. Functions of switches and parts on PWBs

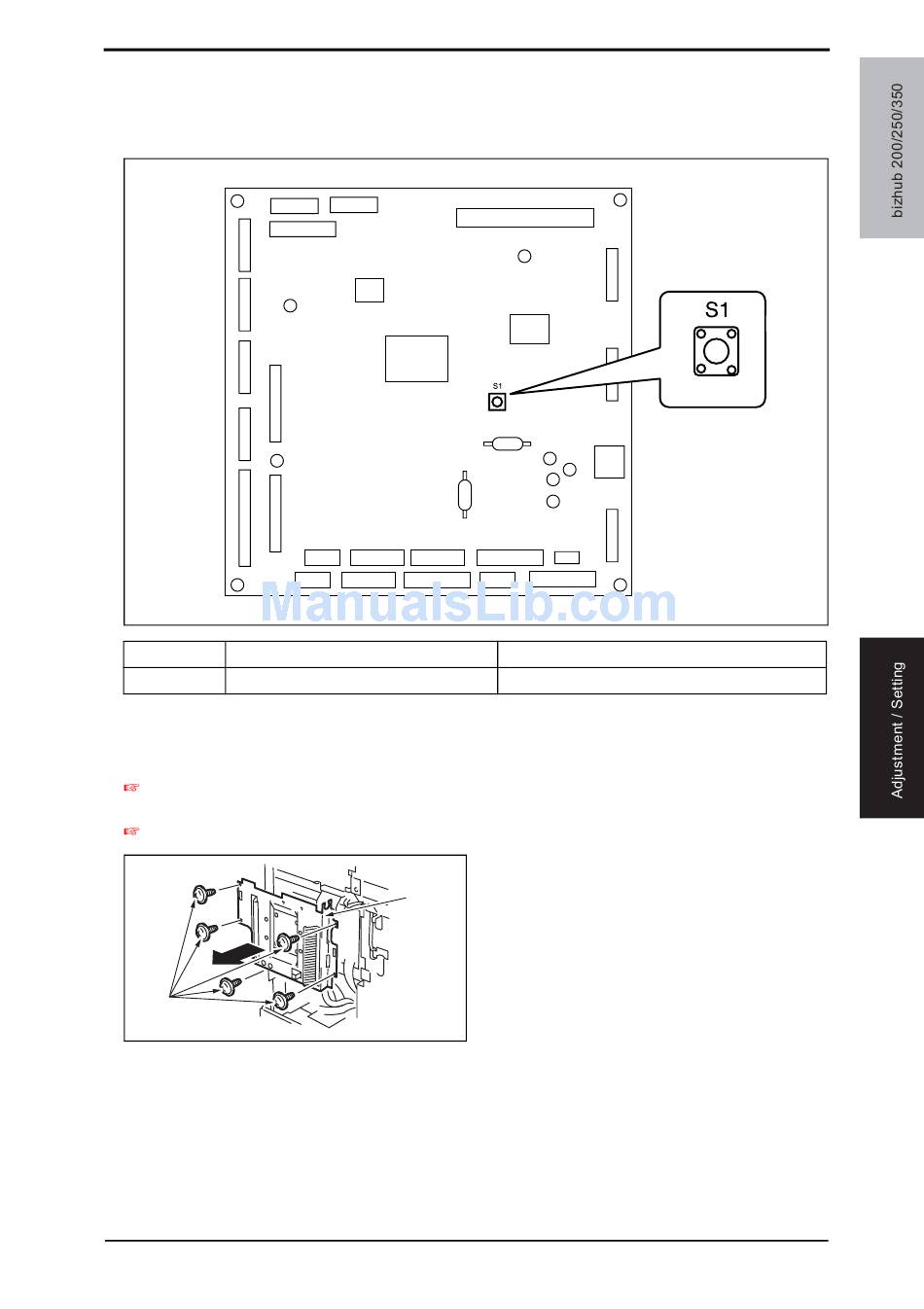

17.1 Test Print Switch (S1)
Symbol
S1
17.1.1 Procedure
1. Remove the
Upper Rear Cover.
50
2. Remove the Rear Cover.
51
[1]
4. Press S1 to start the feed operation.
5. Press S1 a second time to stop the feed operation.
17. Functions of switches and parts on PWBs
Name
Test Print Switch
[2]
4040F2C561DA
Description
Produces the test pattern for Function F12.
3. Remove the five [1] and the Mechan-
ical Control Board Cover [2].
4040F3C527DA
217
