7. Other
7.3.21

BCRS Board

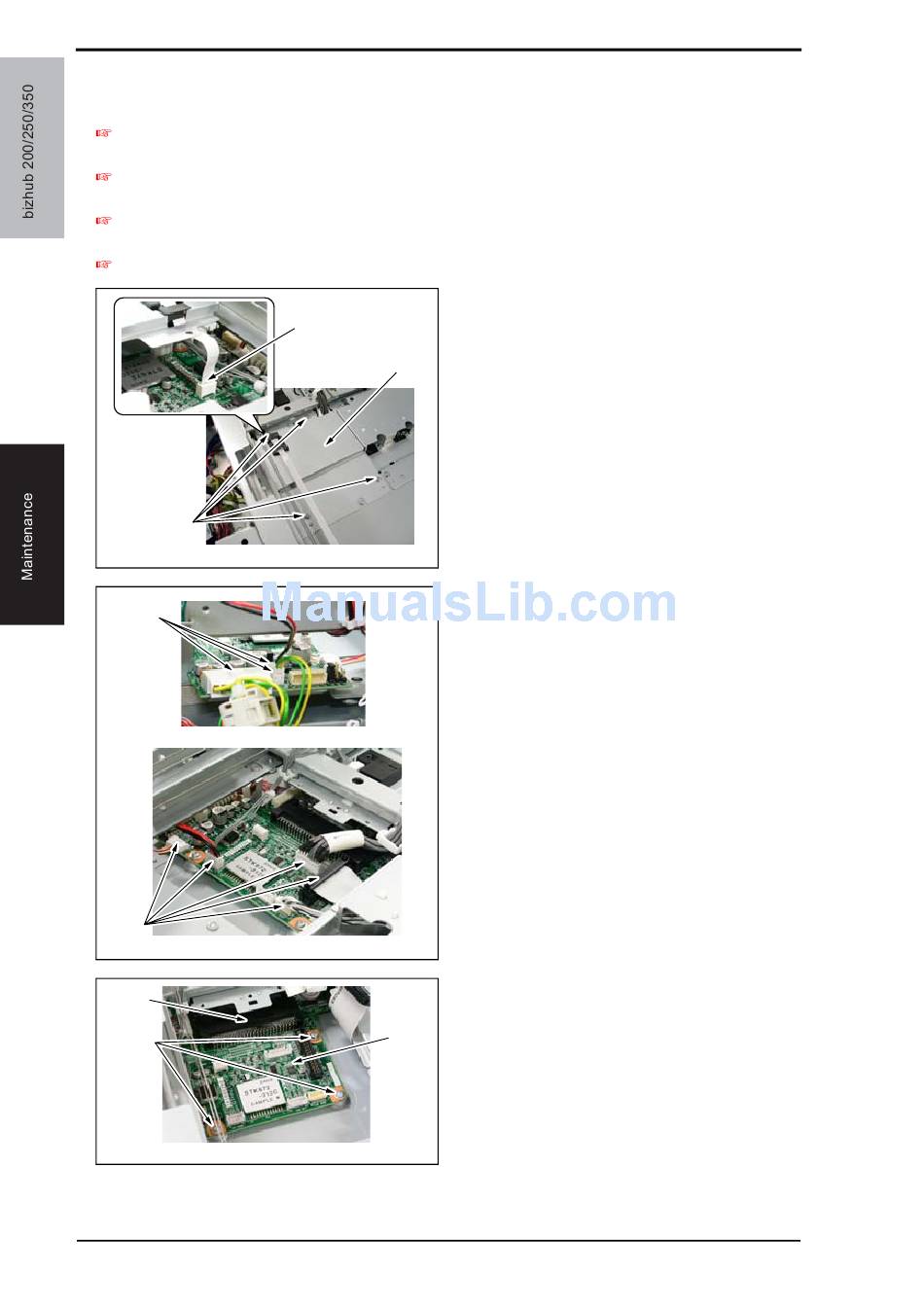

1. Remove the Upper Rear Cover.
50
2. Remove the IR Upper Left Cover.
49
3. Remove the Front Holding Bracket.
49
4. Remove the Original Glass.
49
[1]
[3]
[3]
[5]
[4]
64
[2]
[3]
4040F2C696DA
4040F2C697DA
[6]
4040F2C698DA
Field Service Ver. 1.0 Aug. 2005
5. Remove four screws [1], flat cable
[2], and the BCRS Board cover [3].
6. Unplug eight connectors [3].
7. Remove three screws [4], disconnect
the connector [5], and remove the
BCRS Board [6].
