7. Other
7.3.7
Paper Output Cover/Lower Front Cover
[3]
[2]

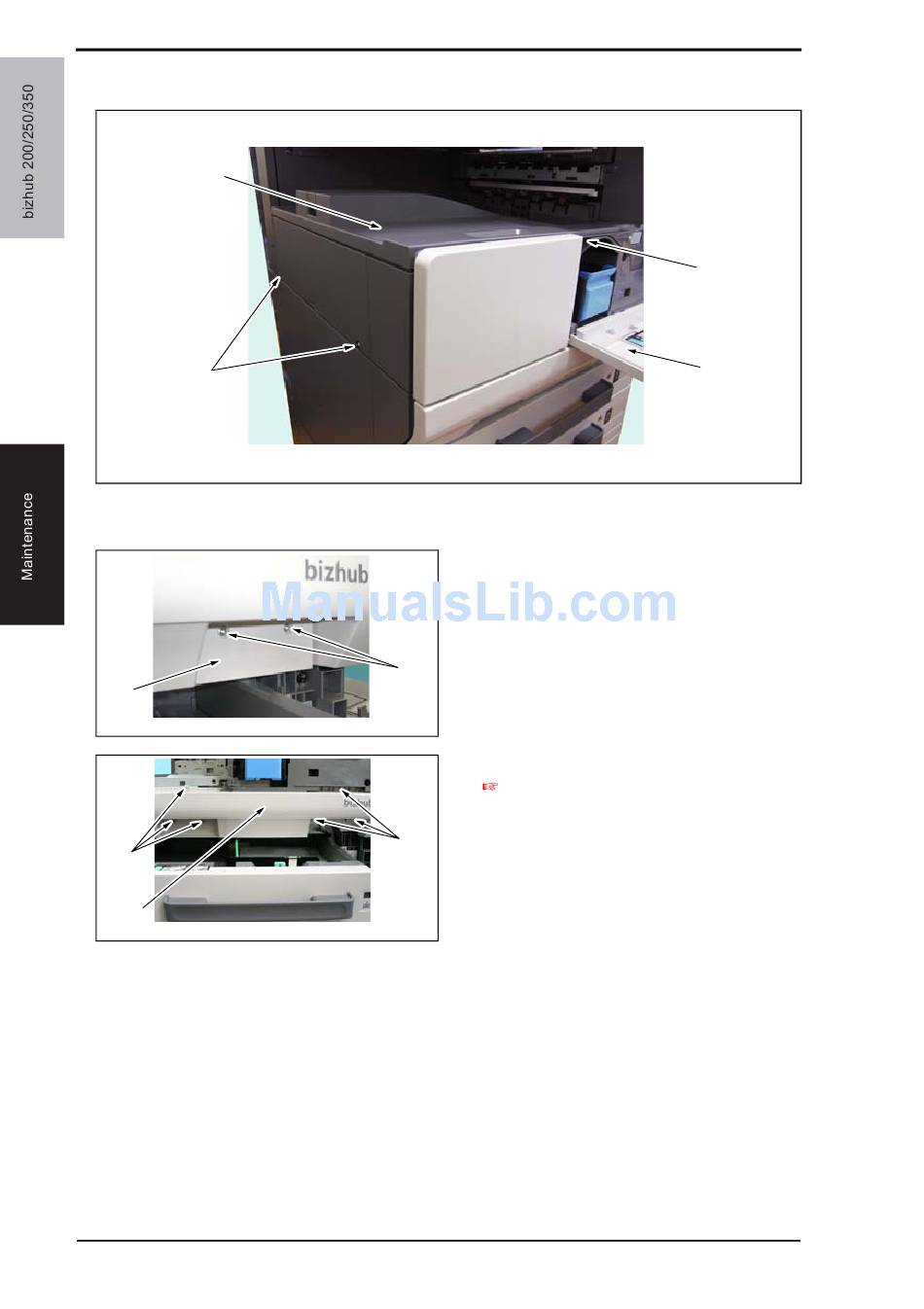

1. Open the Front Door [1].
2. Remove three screws [2] and the Paper Output Cover [3].
[5]
[6]
[7]
52
3. Slide out the Tray 1.
4. Remove two screws [4] and the Con-
nector Cover [5].
[4]
4040F2C666DA
5. Remove the Front Door.
51
6. Remove six screws [6] and the
Lower Front Cover [7].
[6]
4040F2C668DA
Field Service Ver. 1.0 Aug. 2005
[2]
[1]
4040F2C575DA
