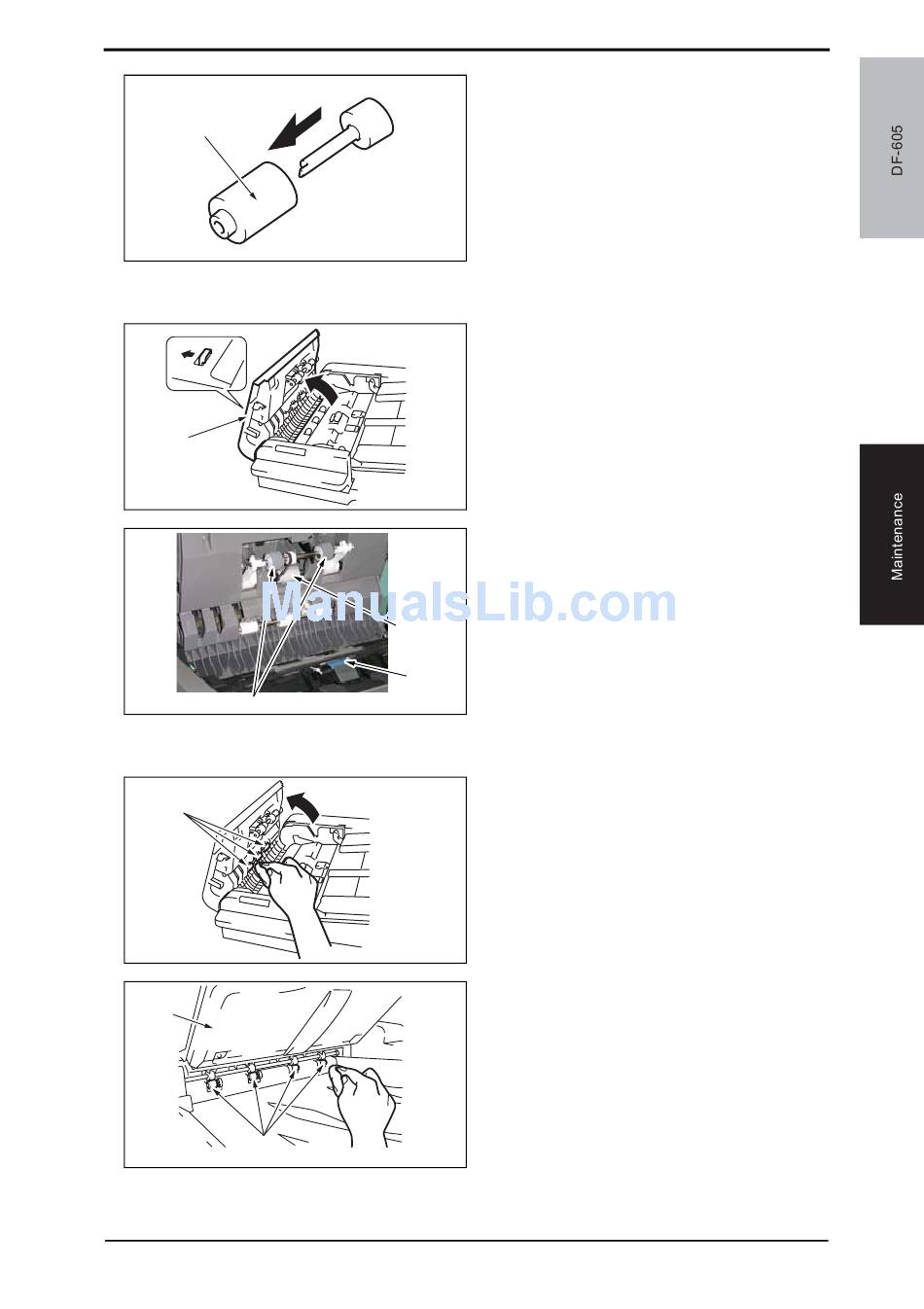

[7]
2.1.3

Cleaning of the Pick-up Roller, Feed Roller and Separation Roller

[1]
[2]
2.1.4

Cleaning of Miscellaneous Rolls

[2]
[3]
[4]
5. Remove the Separation Roller [7]
from the shaft.
4344F2C508DA
1. Open the Upper Door [1].
4344F2C500DA
2. Using a soft cloth dampened with
alcohol, wipe the Pick-up Roller [2],
Feed Roller [3] and Separation
Roller [4].
[3]
[4]
4344F2C509DA
1. Open the Upper Door [1].
2. Using a soft cloth dampened with
alcohol, wipe the roll [2].
4344F2C510DA
3. Lift up the Original Feed Tray [3].
4. Using a soft cloth dampened with
alcohol, wipe the roll [4].
4344F2C511DA
