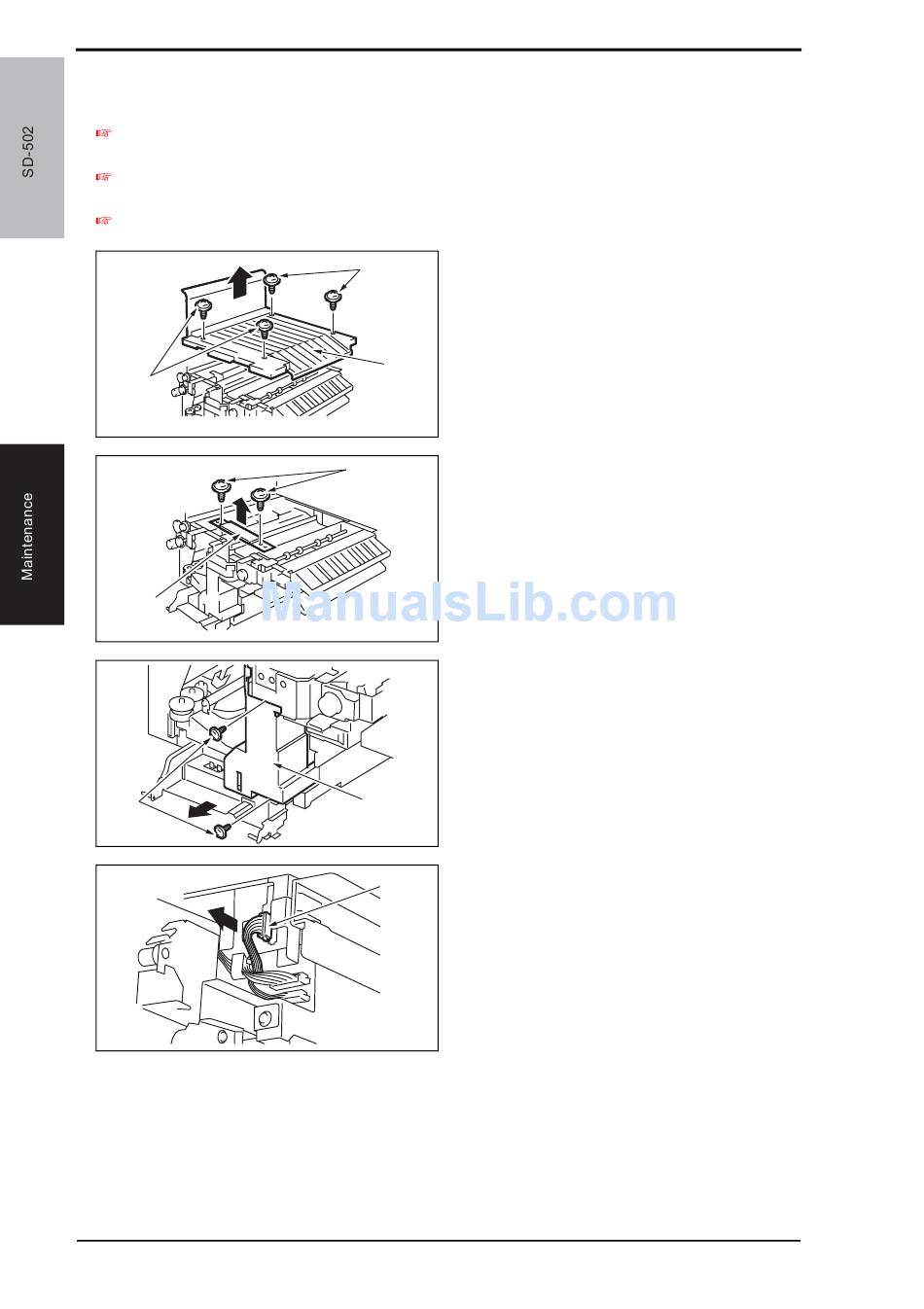

4.3.5 Crease Unit
1. Remove the Saddle Unit.
7
2. Remove the Elevator Tray.
For details, see FS-508 Service Manual.
3. Remove the Horizontal Transport Unit.
For details, see FS-508 Service Manual.
[1]
[4]
[5]
8
4. Remove four screws [1], and remove
[1]
the Horizontal Transport Upper
Cover [2].
[2]
4349F2C516DA
[3] 5. Remove two screws [3], and remove
the Reinforcement Bracket [4].
4511F2C509DA
6. Remove two screws [5], and remove
the Horizontal Transport Lower Front
Cover [6].
[6]
4511F2C510DA
7. Unplug the connector [7].
[7]
4511F2C511DA
