7. Other
7.3.33

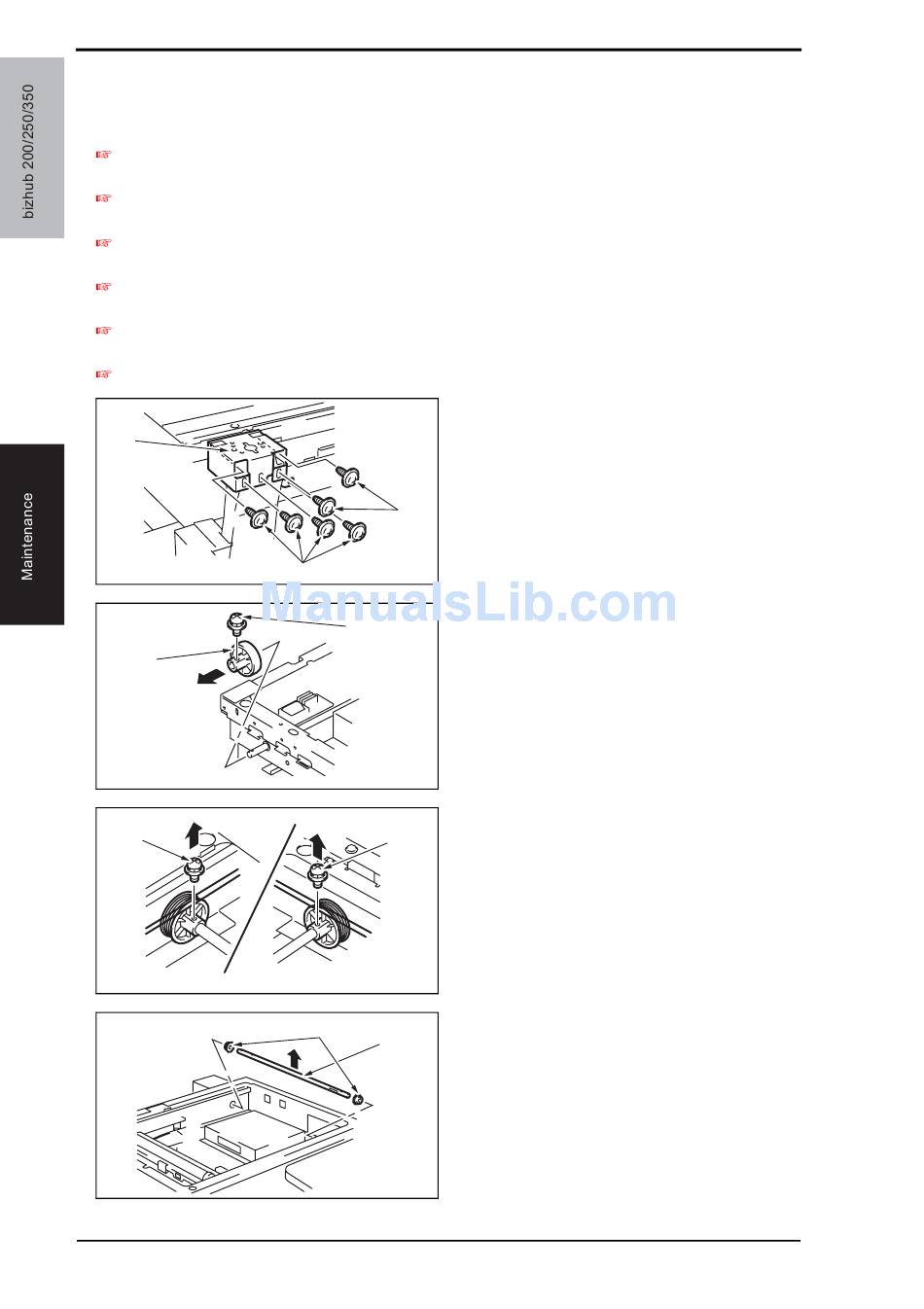

Scanner Drive Cables

A. Removal Procedure
1. Remove the Upper Rear Cover.
50
2. Remove the IR Upper Left Cover.
49
3. Remove the Front Holding Bracket.
49
4. Remove the Original Glass.
49
5. Remove the Exposure Unit.
78
6. Remove the Scanner Motor.
77
[2]
[4]
[5]
80
[1]
[1]
4040F2C707DA
[3]
4040F2C711DA
[5]
4040F2C712DA
[6]
[7]
4040F2C713DA
Field Service Ver. 1.0 Aug. 2005
7. Remove six screws [1] and the Origi-
nal Cover hinge support [2].
8. Remove the screw [3] and the Scan-
ner Drive Gear [4] from the shaft.
9. Remove two screws [5] and the front
and rear pulleys.
10. Remove the bearing [6] and shaft
[7].
11. Remove the Scanner Drive Cables
from each hook.
