Field Service Ver. 1.0 Aug. 2005
Maintenance
2.

Periodical check

2.1

Maintenance procedure (Periodical check parts)

NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the
isopropyl alcohol.
2.1.1

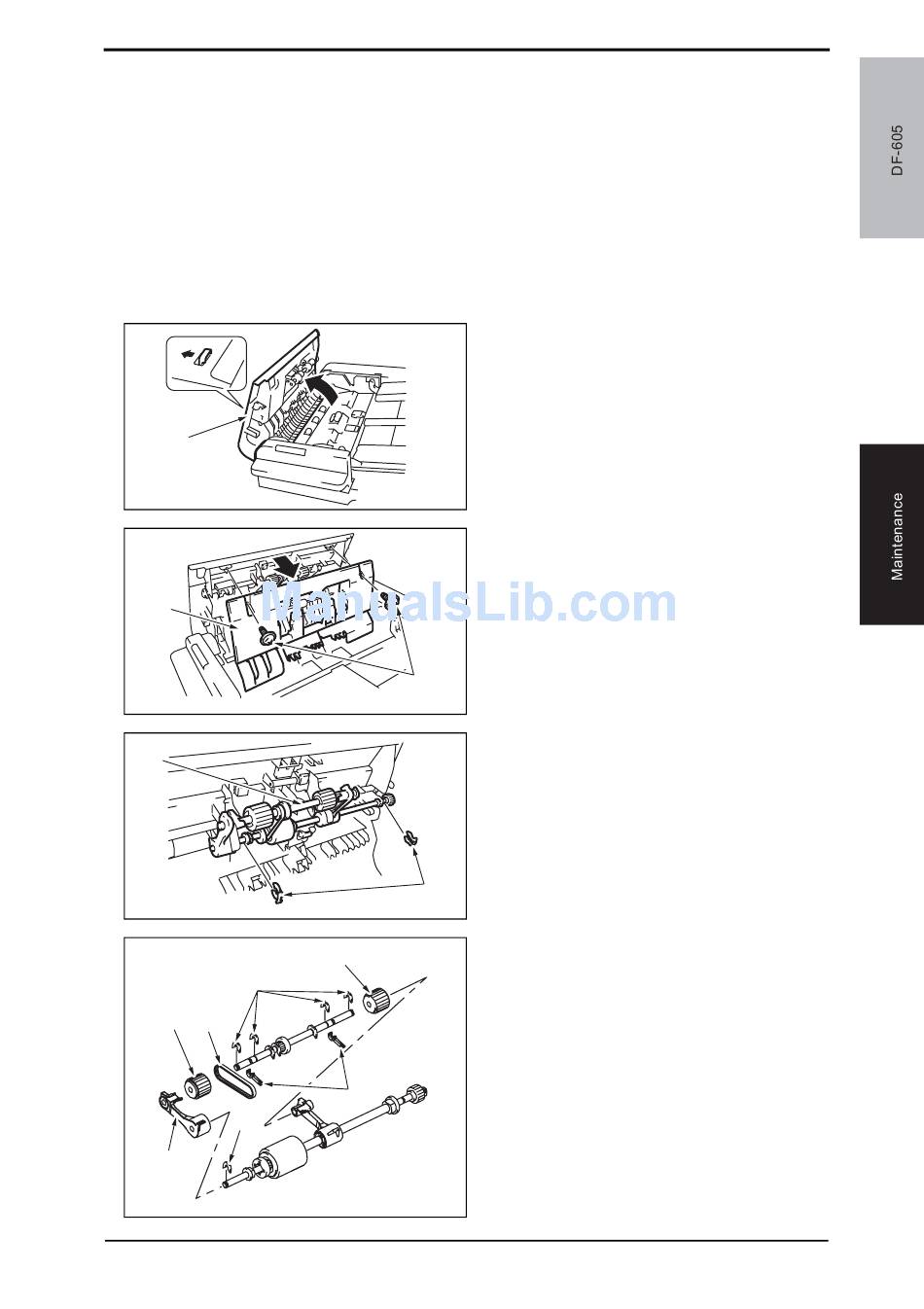

Replacing the Pick-up Roller and Feed Roller

[1]
[3]
[5]
[7]
[10] [9]
[7]
[8]
4344F2C500DA
[2]
4344F2C501DA
[4]
4344F2C502DA
[10]
[6]
4344F2C503DA
2. Periodical check
1. Open the Upper Door [1].
2. Remove two screws [2], and remove
the cover [3].
3. Remove two C-clips [4], and remove
the Pick-up Roller Assy [5].
4. Remove two levers [6].
5. Remove five C-rings [7].
6. Remove the arm [8].
7. Remove the belt [9].
8. Remove two Pick-up Rollers [10].
