9.1

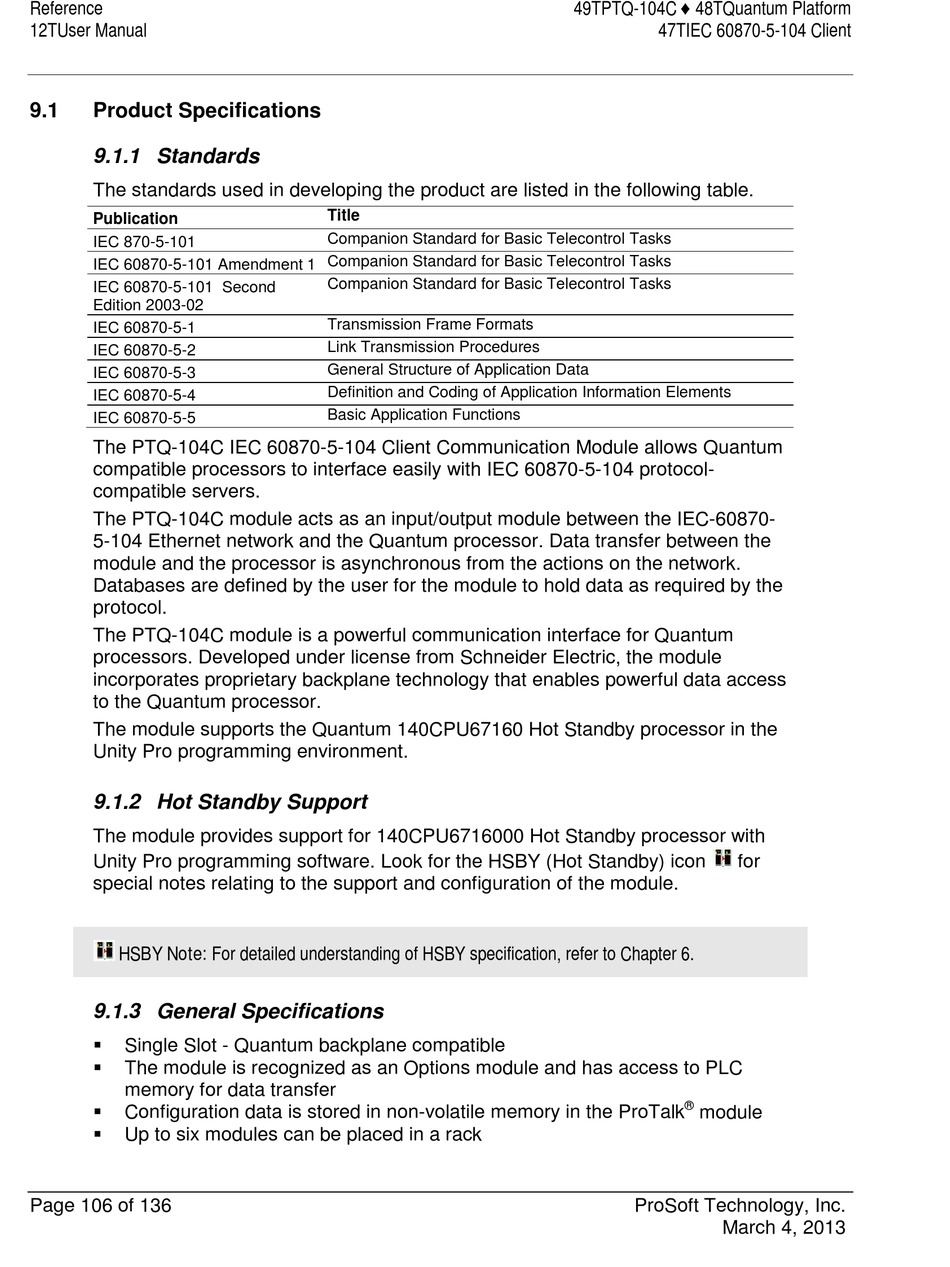

Product Specifications

9.1.1 Standards

The standards used in developing the product are listed in the following table.
Publication
IEC 870-5-101
IEC 60870-5-101 Amendment 1 Companion Standard for Basic Telecontrol Tasks
IEC 60870-5-101 Second
Edition 2003-02
IEC 60870-5-1
IEC 60870-5-2
IEC 60870-5-3
IEC 60870-5-4
IEC 60870-5-5
The PTQ-104C IEC 60870-5-104 Client Communication Module allows Quantum
compatible processors to interface easily with IEC 60870-5-104 protocol-
compatible servers.
The PTQ-104C module acts as an input/output module between the IEC-60870-
5-104 Ethernet network and the Quantum processor. Data transfer between the
module and the processor is asynchronous from the actions on the network.
Databases are defined by the user for the module to hold data as required by the
protocol.
The PTQ-104C module is a powerful communication interface for Quantum
processors. Developed under license from Schneider Electric, the module
incorporates proprietary backplane technology that enables powerful data access
to the Quantum processor.
The module supports the Quantum 140CPU67160 Hot Standby processor in the
Unity Pro programming environment.

9.1.2 Hot Standby Support

The module provides support for 140CPU6716000 Hot Standby processor with
Unity Pro programming software. Look for the HSBY (Hot Standby) icon
special notes relating to the support and configuration of the module.
HSBY Note: For detailed understanding of HSBY specification, refer to Chapter 6.

9.1.3 General Specifications


Single Slot - Quantum backplane compatible

The module is recognized as an Options module and has access to PLC
memory for data transfer

Configuration data is stored in non-volatile memory in the ProTalk

Up to six modules can be placed in a rack
Page 106 of 136
Title
Companion Standard for Basic Telecontrol Tasks
Companion Standard for Basic Telecontrol Tasks
Transmission Frame Formats
Link Transmission Procedures
General Structure of Application Data
Definition and Coding of Application Information Elements
Basic Application Functions
