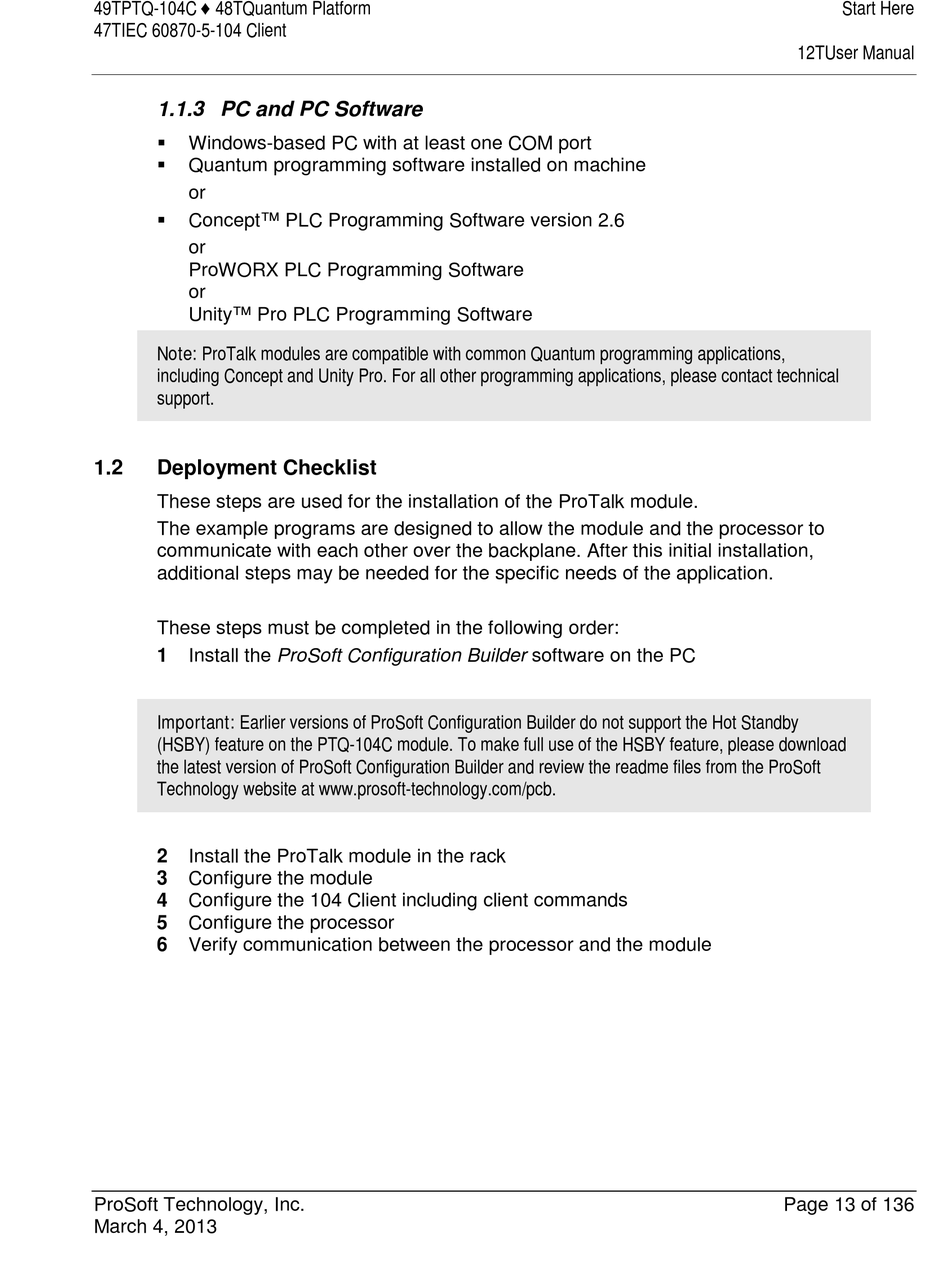

1.1.3 PC and PC Software


Windows-based PC with at least one COM port

Quantum programming software installed on machine
or

Concept™ PLC Programming Software version 2.6
or
ProWORX PLC Programming Software
or
Unity™ Pro PLC Programming Software
Note: ProTalk modules are compatible with common Quantum programming applications,
including Concept and Unity Pro. For all other programming applications, please contact technical
support.
1.2

Deployment Checklist

These steps are used for the installation of the ProTalk module.
The example programs are designed to allow the module and the processor to
communicate with each other over the backplane. After this initial installation,
additional steps may be needed for the specific needs of the application.
These steps must be completed in the following order:
1 Install the ProSoft Configuration Builder software on the PC
Important: Earlier versions of ProSoft Configuration Builder do not support the Hot Standby
(HSBY) feature on the PTQ-104C module. To make full use of the HSBY feature, please download
the latest version of ProSoft Configuration Builder and review the readme files from the ProSoft
Technology website at www.prosoft-technology.com/pcb.
2 Install the ProTalk module in the rack
3 Configure the module
4 Configure the 104 Client including client commands
5 Configure the processor
6 Verify communication between the processor and the module
