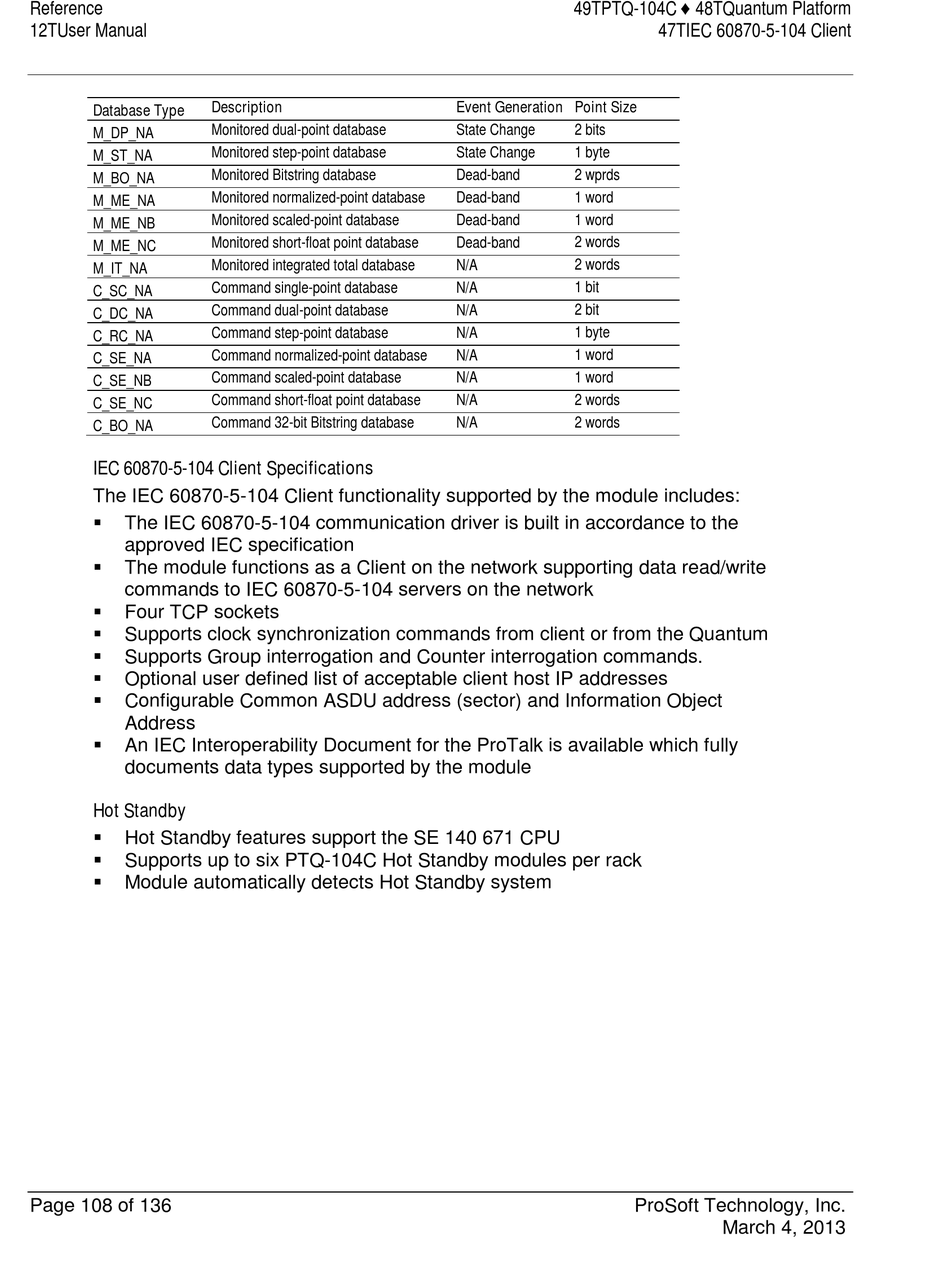

Database Type
M_DP_NA
M_ST_NA
M_BO_NA
M_ME_NA
M_ME_NB
M_ME_NC
M_IT_NA
C_SC_NA
C_DC_NA
C_RC_NA
C_SE_NA
C_SE_NB
C_SE_NC
C_BO_NA
IEC 60870-5-104 Client Specifications
The IEC 60870-5-104 Client functionality supported by the module includes:

The IEC 60870-5-104 communication driver is built in accordance to the
approved IEC specification

The module functions as a Client on the network supporting data read/write
commands to IEC 60870-5-104 servers on the network

Four TCP sockets

Supports clock synchronization commands from client or from the Quantum

Supports Group interrogation and Counter interrogation commands.

Optional user defined list of acceptable client host IP addresses

Configurable Common ASDU address (sector) and Information Object
Address

An IEC Interoperability Document for the ProTalk is available which fully
documents data types supported by the module
Hot Standby

Hot Standby features support the SE 140 671 CPU

Supports up to six PTQ-104C Hot Standby modules per rack

Module automatically detects Hot Standby system
Page 108 of 136
Description
Monitored dual-point database
Monitored step-point database
Monitored Bitstring database
Monitored normalized-point database
Monitored scaled-point database
Monitored short-float point database
Monitored integrated total database
Command single-point database
Command dual-point database
Command step-point database
Command normalized-point database
Command scaled-point database
Command short-float point database
Command 32-bit Bitstring database
49TPTQ-104C ♦ 48TQuantum Platform
Event Generation Point Size
2 bits
State Change
State Change 1 byte
Dead-band 2 wprds
1 word
Dead-band
Dead-band 1 word
2 words
Dead-band
N/A 2 words
N/A 1 bit
2 bit
N/A
N/A 1 byte
N/A 1 word
1 word
N/A
N/A 2 words
N/A 2 words
