49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
6

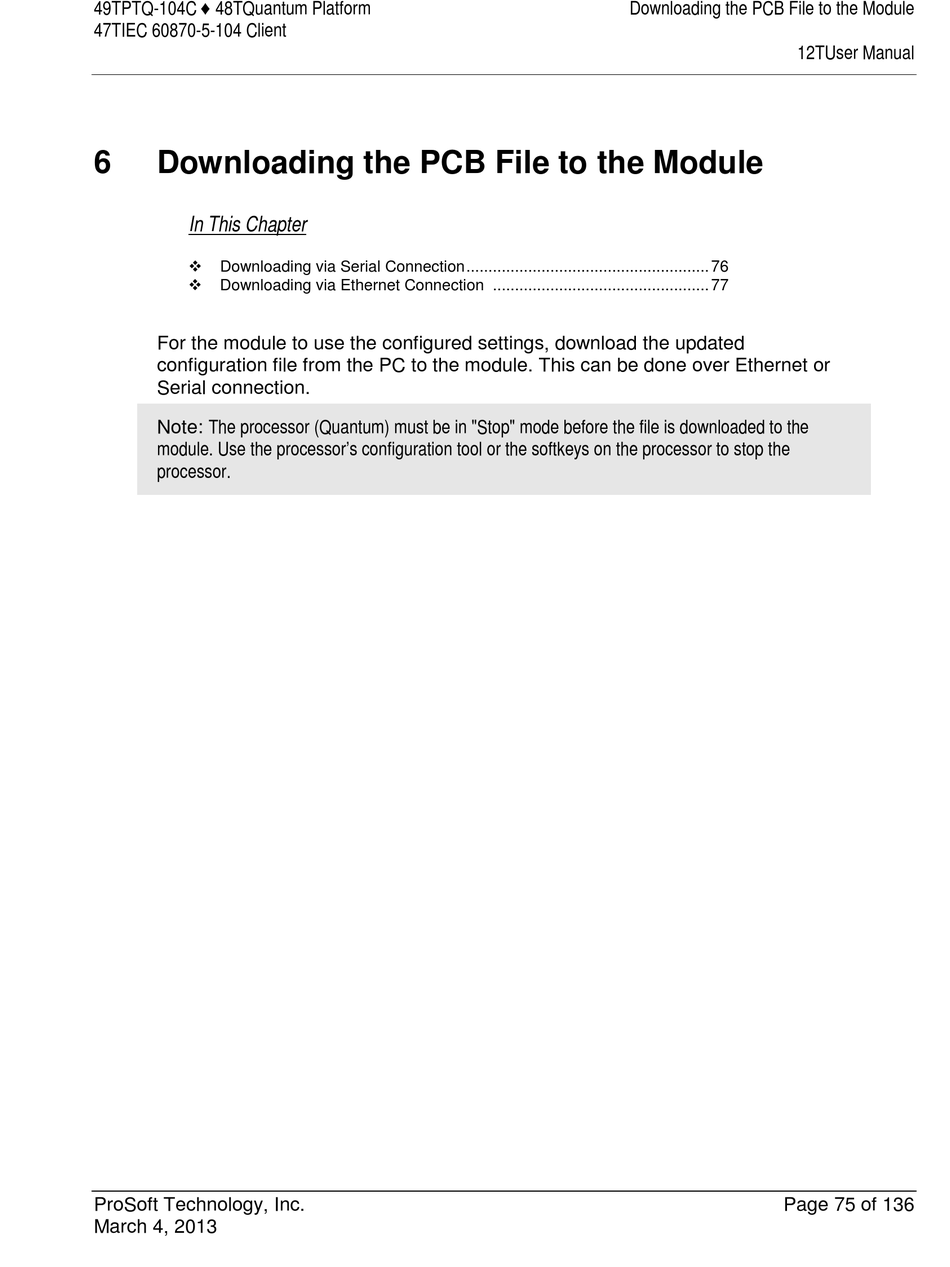

Downloading the PCB File to the Module

In This Chapter

Downloading via Serial Connection ....................................................... 76

Downloading via Ethernet Connection ................................................. 77
For the module to use the configured settings, download the updated
configuration file from the PC to the module. This can be done over Ethernet or
Serial connection.
Note: The processor (Quantum) must be in "Stop" mode before the file is downloaded to the
module. Use the processor's configuration tool or the softkeys on the processor to stop the
processor.
ProSoft Technology, Inc.
March 4, 2013
Downloading the PCB File to the Module
12TUser Manual
Page 75 of 136
