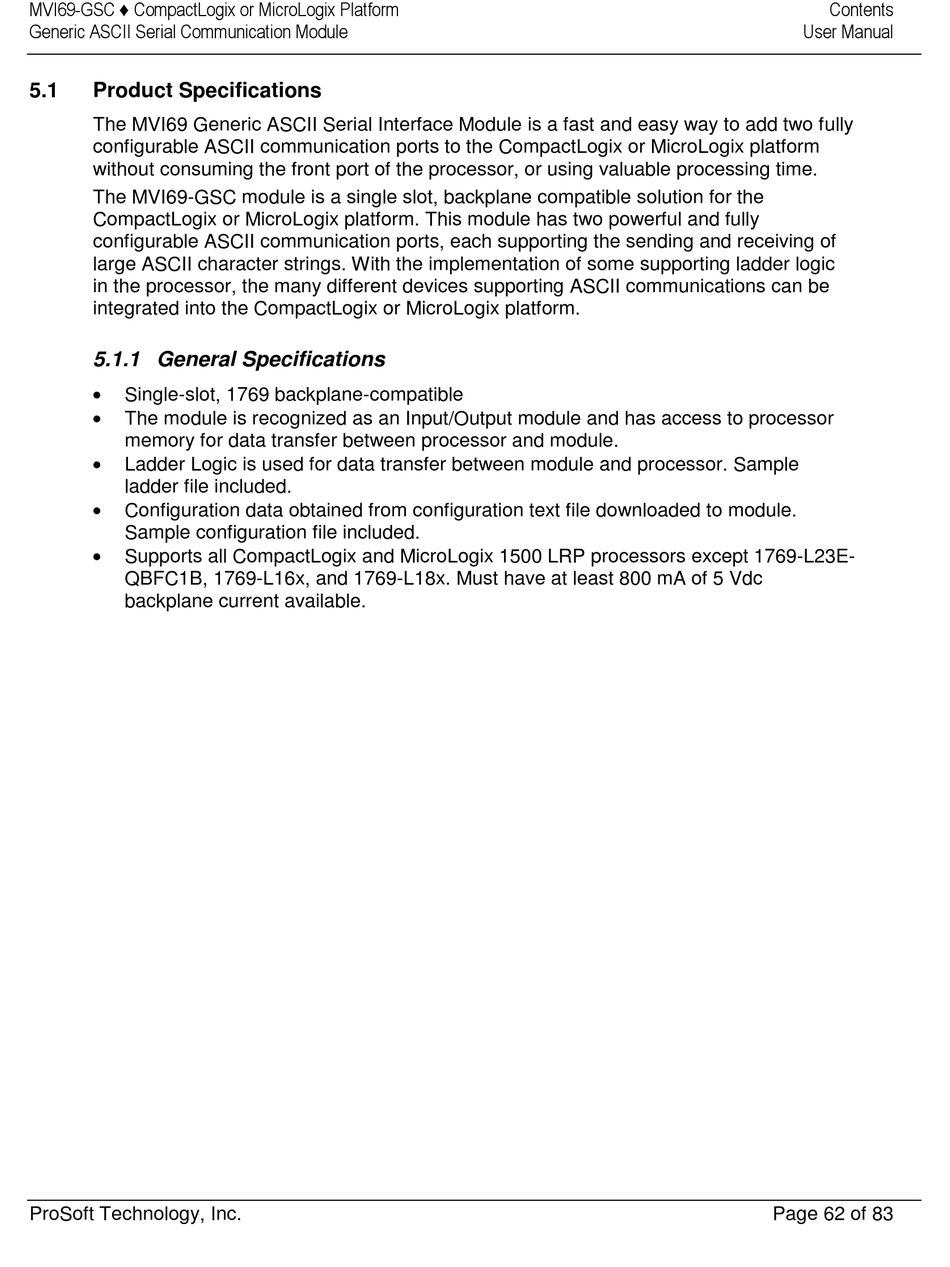

5.1

Product Specifications

The MVI69 Generic ASCII Serial Interface Module is a fast and easy way to add two fully
configurable ASCII communication ports to the CompactLogix or MicroLogix platform
without consuming the front port of the processor, or using valuable processing time.
The MVI69-GSC module is a single slot, backplane compatible solution for the
CompactLogix or MicroLogix platform. This module has two powerful and fully
configurable ASCII communication ports, each supporting the sending and receiving of
large ASCII character strings. With the implementation of some supporting ladder logic
in the processor, the many different devices supporting ASCII communications can be
integrated into the CompactLogix or MicroLogix platform.

5.1.1 General Specifications


Single-slot, 1769 backplane-compatible

The module is recognized as an Input/Output module and has access to processor
memory for data transfer between processor and module.

Ladder Logic is used for data transfer between module and processor. Sample
ladder file included.

Configuration data obtained from configuration text file downloaded to module.
Sample configuration file included.

Supports all CompactLogix and MicroLogix 1500 LRP processors except 1769-L23E-
QBFC1B, 1769-L16x, and 1769-L18x. Must have at least 800 mA of 5 Vdc
backplane current available.
