5.1.2 Setting Module Parameters

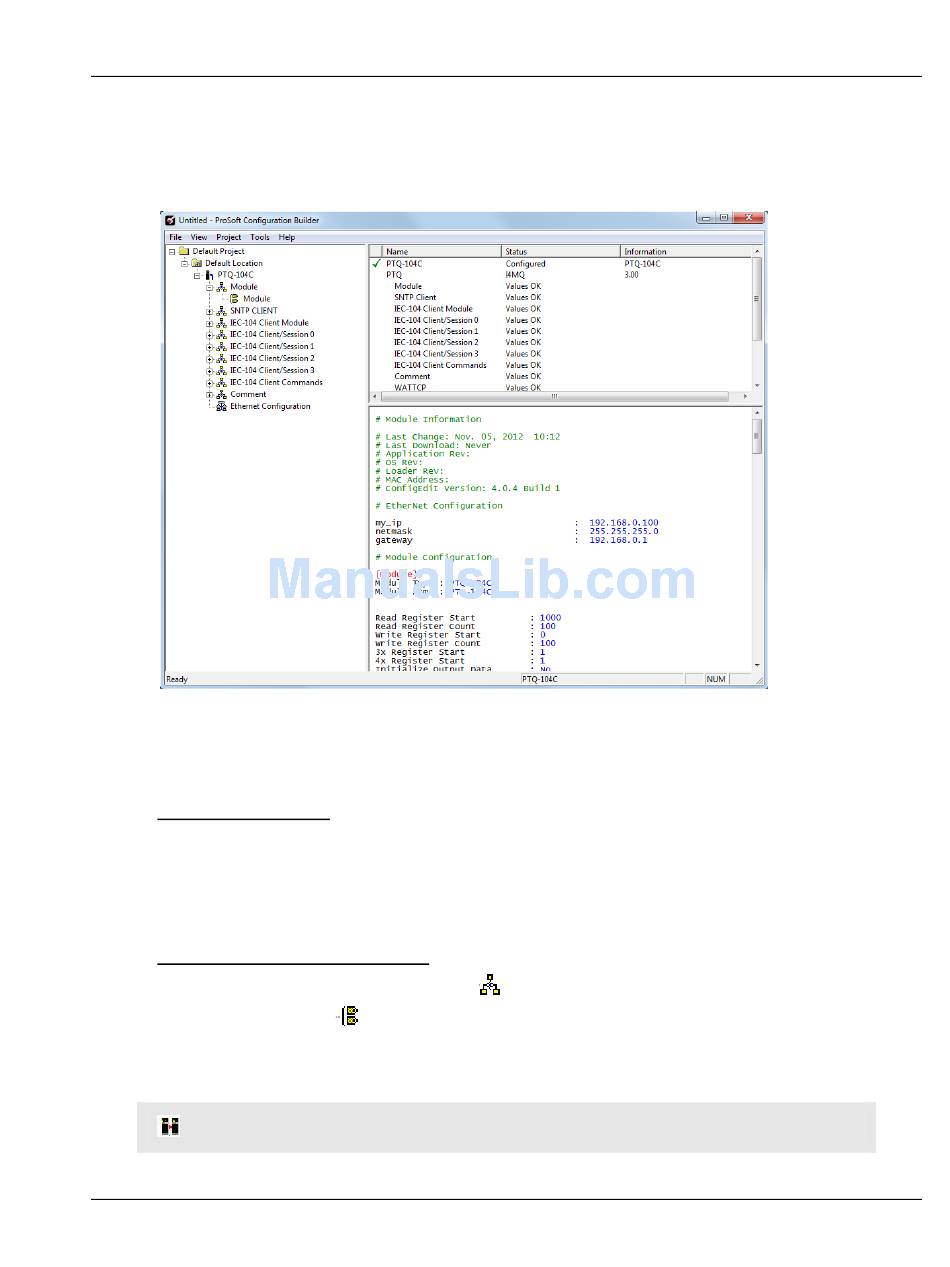

Notice the contents of the information pane and the configuration pane updated
when the PTQ-104C module was added to the project.
Renaming the "Default Project" and "Default Location" folders can be done in the
tree view.
Renaming an object
1 Select the object and click the right mouse button to open a shortcut menu.
From the shortcut menu, choose R
2 Type the name to assign to the object.
3 Click away from the object to save the new name.
Configuring module parameters
1 Click on the plus sign next to the
2 Double-click the
3 To edit a parameter, select the parameter in the left pane and make the
changes in the right pane.
4 Click OK to save the changes.
HSBY Note: For Hot Standby modules, a double module icon will be displayed.
ProSoft Technology, Inc.
March 4, 2013
.
ENAME
icon to expand module information.
icon to open the Edit dialog box.
