49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
2

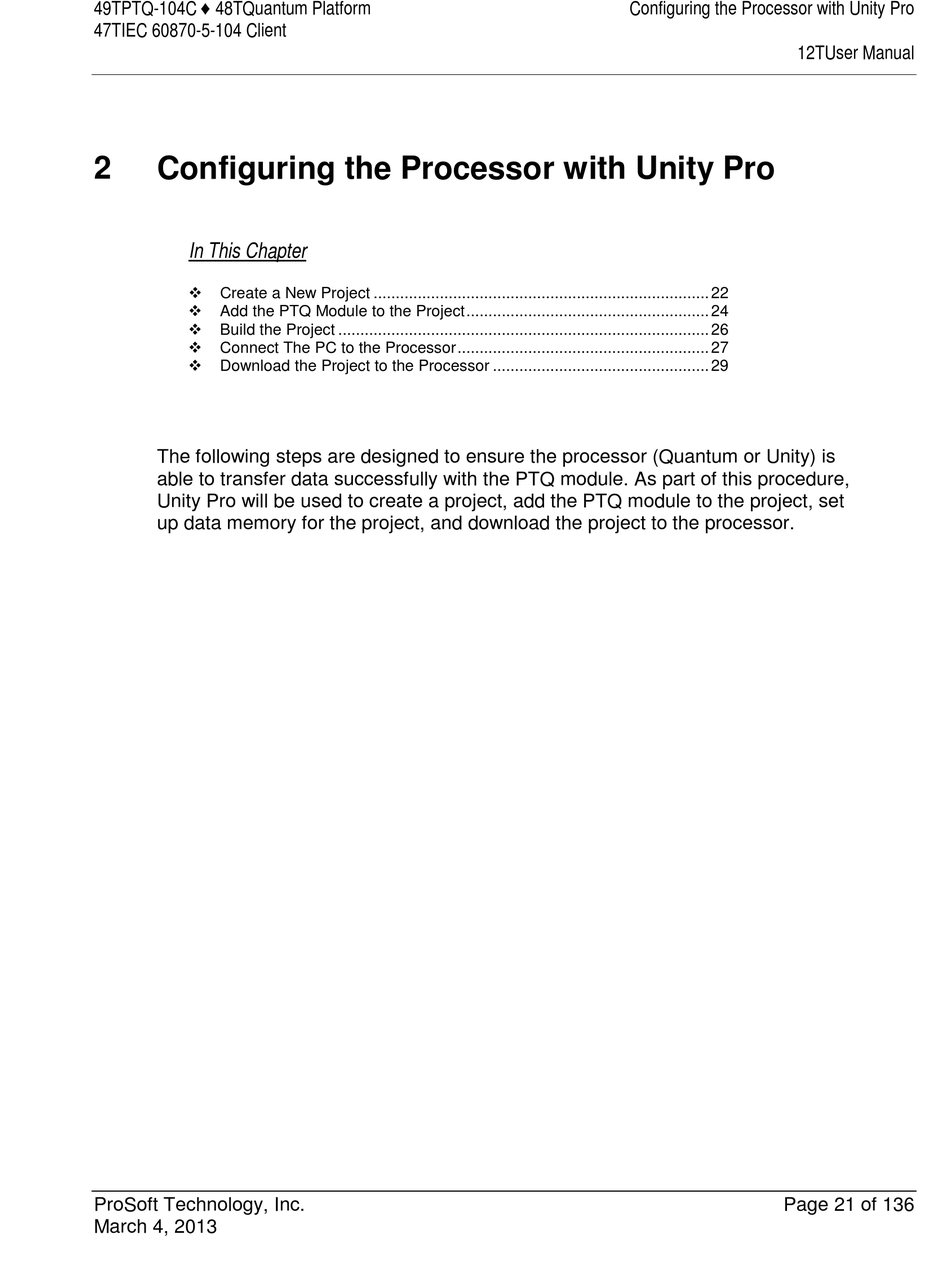

Configuring the Processor with Unity Pro

In This Chapter

Create a New Project ............................................................................ 22

Add the PTQ Module to the Project ....................................................... 24

Build the Project .................................................................................... 26

Connect The PC to the Processor ......................................................... 27

Download the Project to the Processor ................................................. 29
The following steps are designed to ensure the processor (Quantum or Unity) is
able to transfer data successfully with the PTQ module. As part of this procedure,
Unity Pro will be used to create a project, add the PTQ module to the project, set
up data memory for the project, and download the project to the processor.
ProSoft Technology, Inc.
March 4, 2013
Configuring the Processor with Unity Pro
12TUser Manual
Page 21 of 136
