Diagnostics and Troubleshooting
12TUser Manual
8.2.2 Serial Connection to Diagnostics Menu
Connect to the module's Configuration/Debug serial port.
1

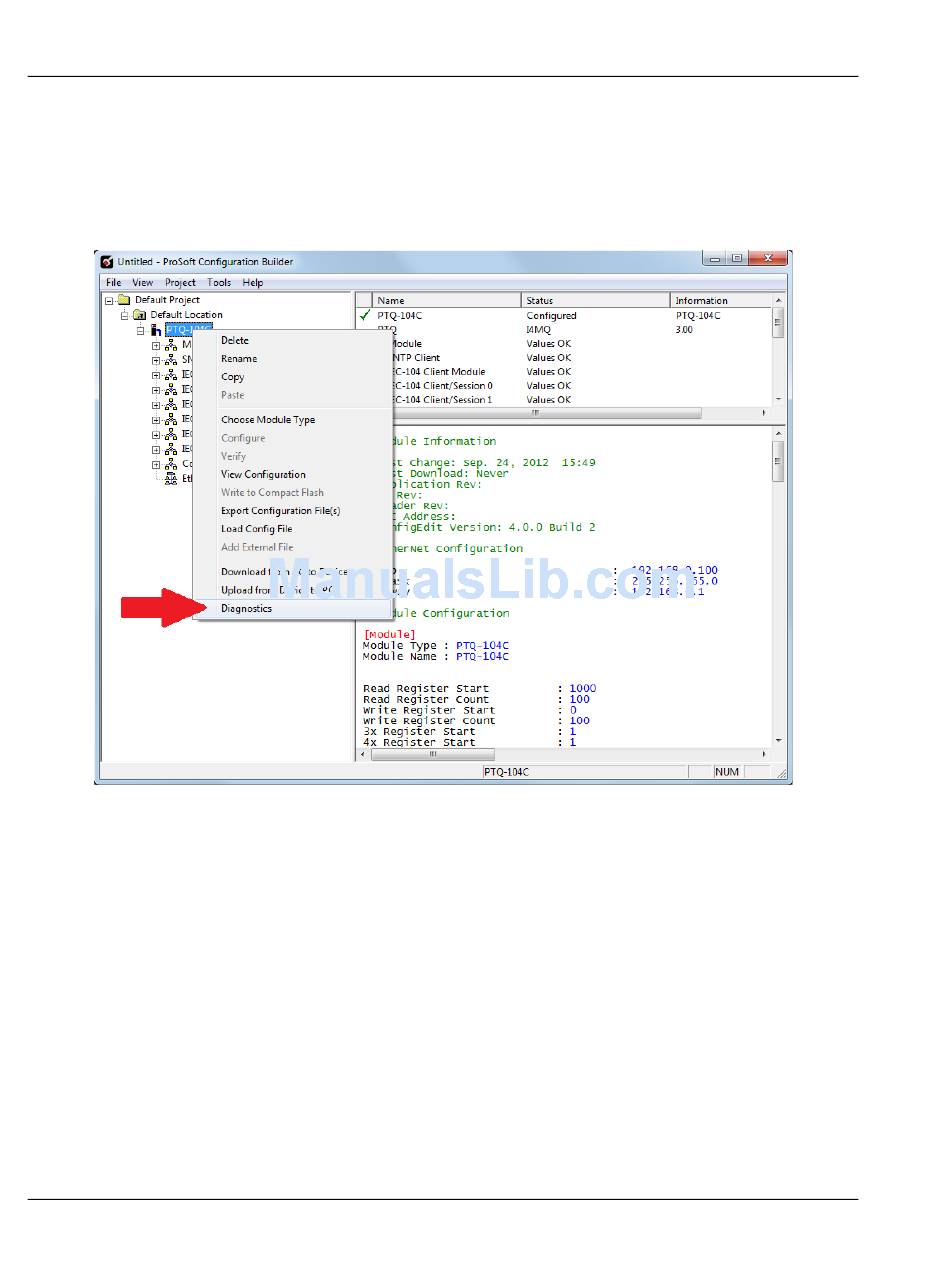

In the PCB project tree, right-click the PTQ-104C icon to open a shortcut
menu.
On the shortcut menu, choose D
This action opens the D
Page 96 of 136
.
IAGNOSTICS
dialog box.
IAGNOSTICS
49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
ProSoft Technology, Inc.
March 4, 2013
