Configuring the Processor with Unity Pro
12TUser Manual
2.1

Creating a New Project

The first step is to open Unity Pro and create a new project.

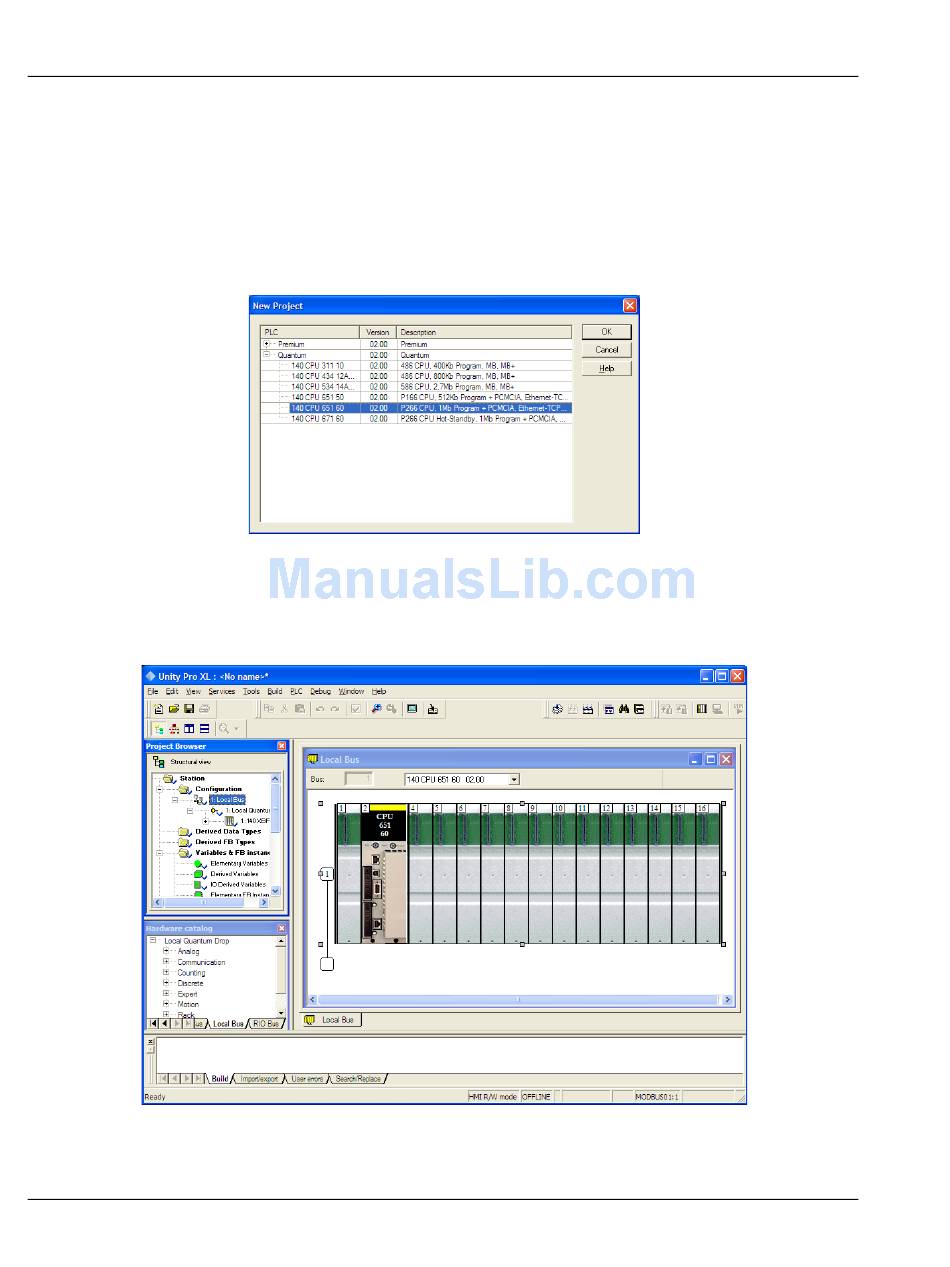

1 In the New Project dialog box, choose the CPU type. In the following
illustration, the CPU is 140 CPU 651 60. Choose the processor type that
matches the hardware configuration of the processor in the rack, if it differs
from the example.
2 Click OK to continue.
3 Next, add a power supply to the project. In the Project Browser, expand
the Configuration folder, and then double-click the 1:L
action opens a graphical window showing the arrangement of devices in the
Quantum rack.
Page 22 of 136
49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
B icon. This
OCAL US
ProSoft Technology, Inc.
March 4, 2013
