Configuring the Processor with Unity Pro
12TUser Manual
2.2

Adding the PTQ Module to the Project

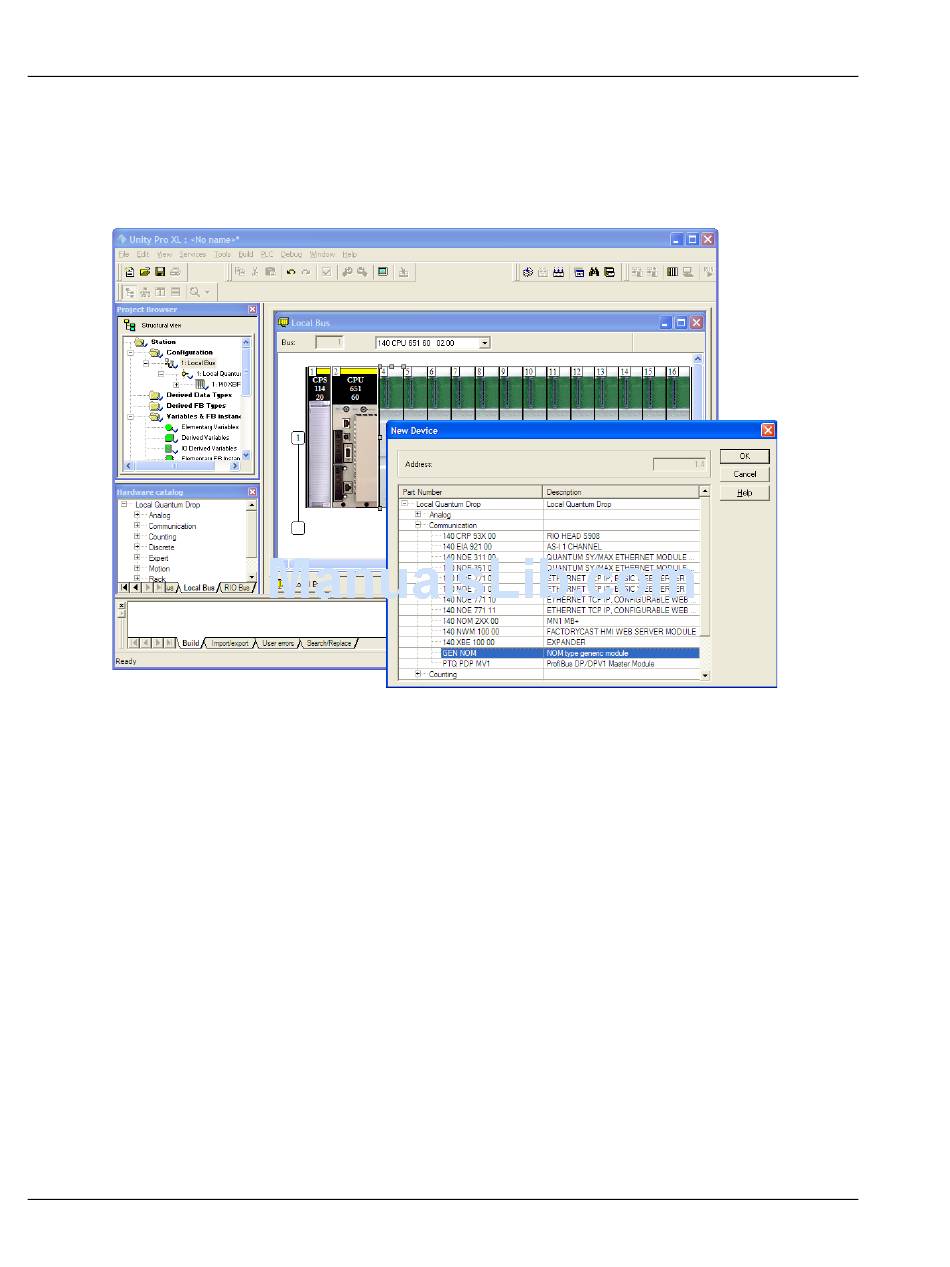

1 When adding a new device, expand the Communication tree, and select GEN
NOM. This module type provides extended communication capabilities for the
Quantum system, and allows communication between the PLC and the PTQ
module without requiring additional programming. Click OK.
