Connecting a PC to the Processor

The next step is to connect to the processor so the project file can be
downloaded. The processor uses this project file to communicate over the
backplane to modules identified in the project file.
Note: If a connection between the PC to the processor has not been established, verify the port
drivers are installed and are available to Unity Pro.
Verifying the address and driver settings in Unity Pro

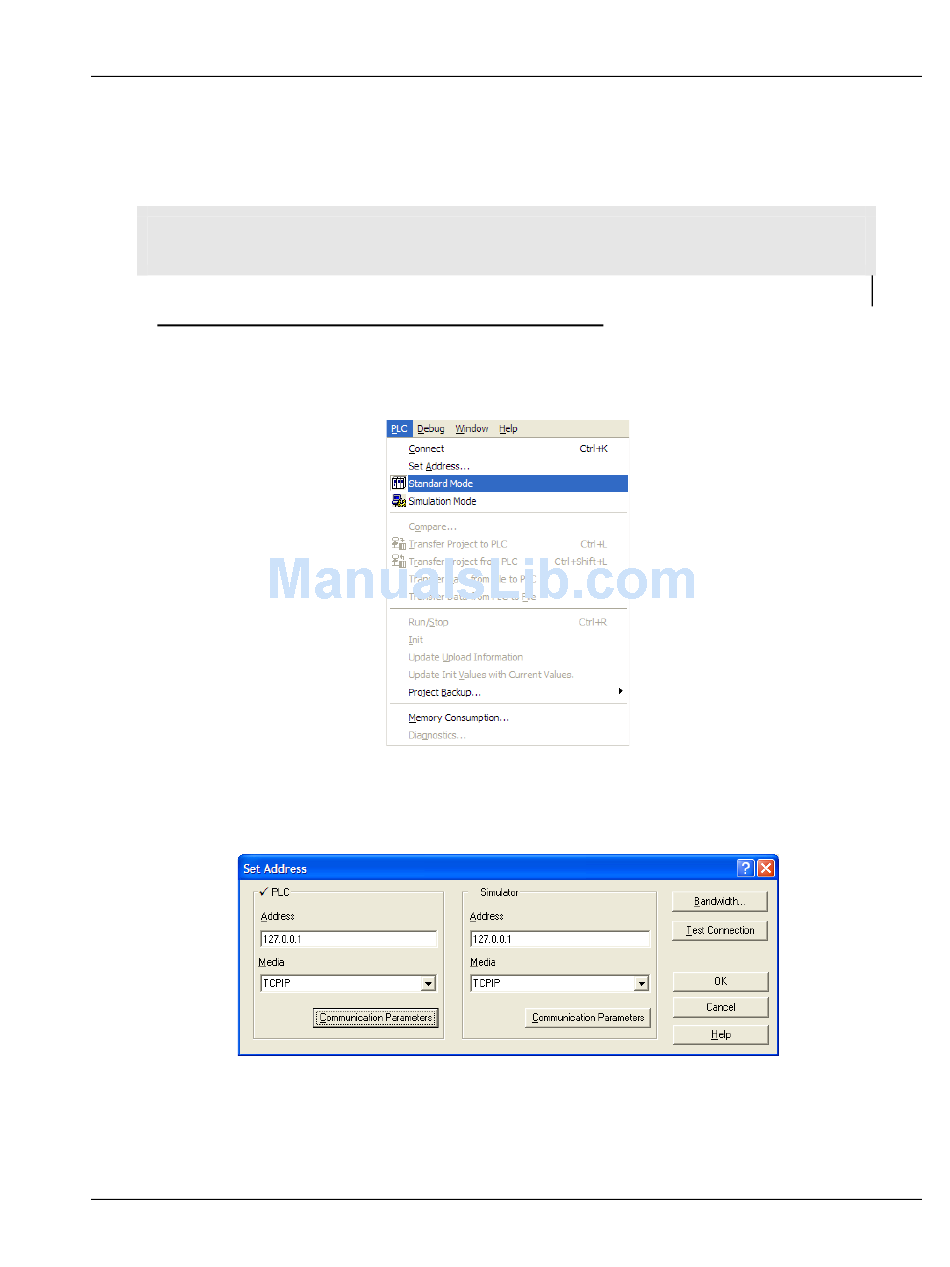

1 Open the PLC menu, and choose S
PLC Simulator. It allows the user to communicate directly with the Quantum
or Unity hardware.
2 Open the PLC menu, and choose S
Address dialog box. Open the M
connection type (TCPIP or USB).
