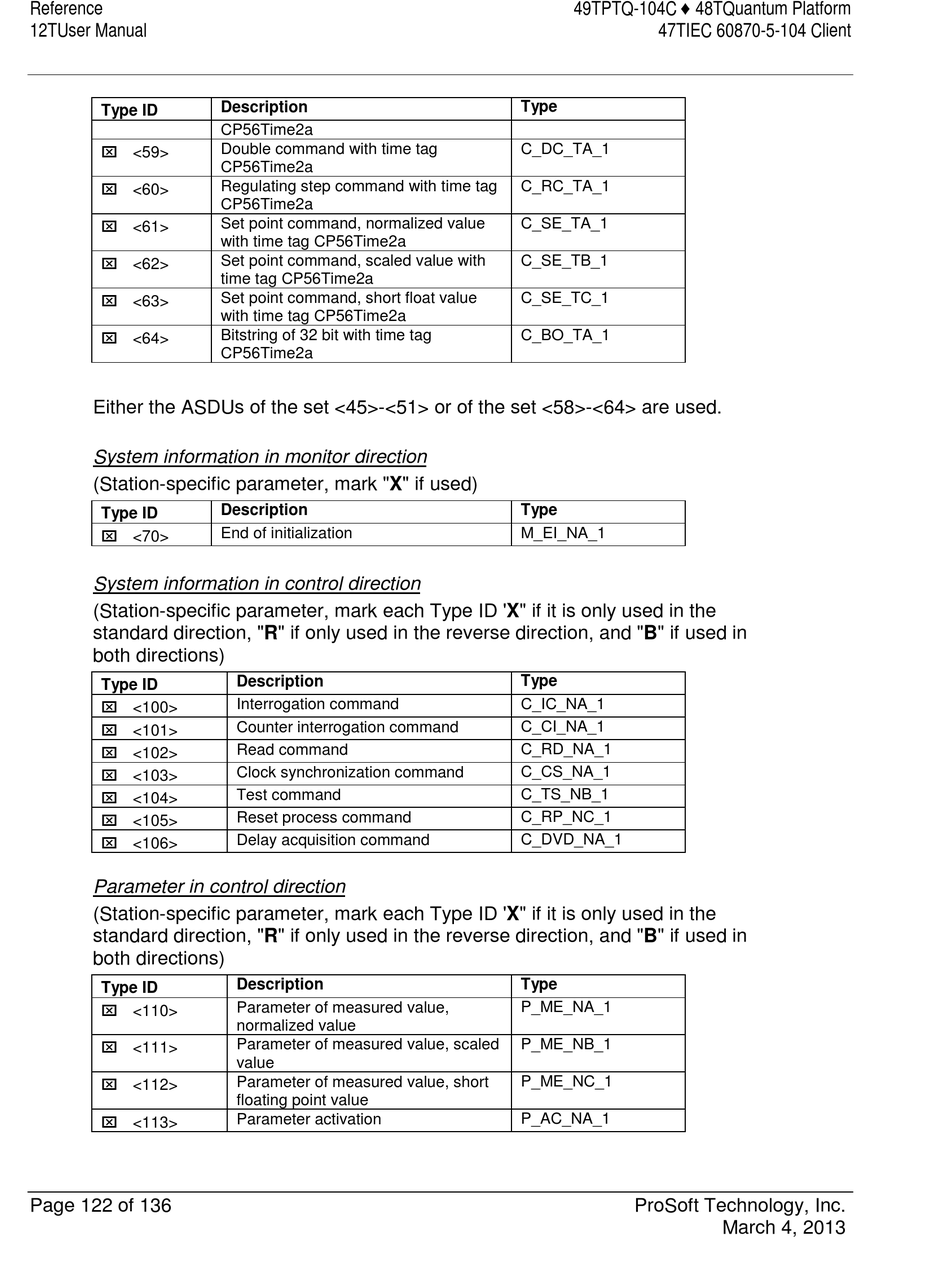

ProSoft Technology ProTalk PTQ-104C User Manual page 122

Reference
12TUser Manual
Type ID
 <59>
 <60>
 <61>
 <62>
 <63>
 <64>
Either the ASDUs of the set <45>-<51> or of the set <58>-<64> are used.
System information in monitor direction
(Station-specific parameter, mark "X" if used)
Type ID
 <70>
System information in control direction
(Station-specific parameter, mark each Type ID 'X" if it is only used in the
standard direction, "R" if only used in the reverse direction, and "B" if used in
both directions)
Type ID
 <100>
 <101>
 <102>
 <103>
 <104>
 <105>
 <106>
Parameter in control direction
(Station-specific parameter, mark each Type ID 'X" if it is only used in the
standard direction, "R" if only used in the reverse direction, and "B" if used in
both directions)
Type ID
 <110>
 <111>
 <112>
 <113>
Page 122 of 136
Description
CP56Time2a
Double command with time tag
CP56Time2a
Regulating step command with time tag
CP56Time2a
Set point command, normalized value
with time tag CP56Time2a
Set point command, scaled value with
time tag CP56Time2a
Set point command, short float value
with time tag CP56Time2a
Bitstring of 32 bit with time tag
CP56Time2a
Description
End of initialization
Description
Interrogation command
Counter interrogation command
Read command
Clock synchronization command
Test command
Reset process command
Delay acquisition command
Description
Parameter of measured value,
normalized value
Parameter of measured value, scaled
value
Parameter of measured value, short
floating point value
Parameter activation
49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
Type
C_DC_TA_1
C_RC_TA_1
C_SE_TA_1
C_SE_TB_1
C_SE_TC_1
C_BO_TA_1
Type
M_EI_NA_1
Type
C_IC_NA_1
C_CI_NA_1
C_RD_NA_1
C_CS_NA_1
C_TS_NB_1
C_RP_NC_1
C_DVD_NA_1
Type
P_ME_NA_1
P_ME_NB_1
P_ME_NC_1
P_AC_NA_1
