Reference
12TUser Manual

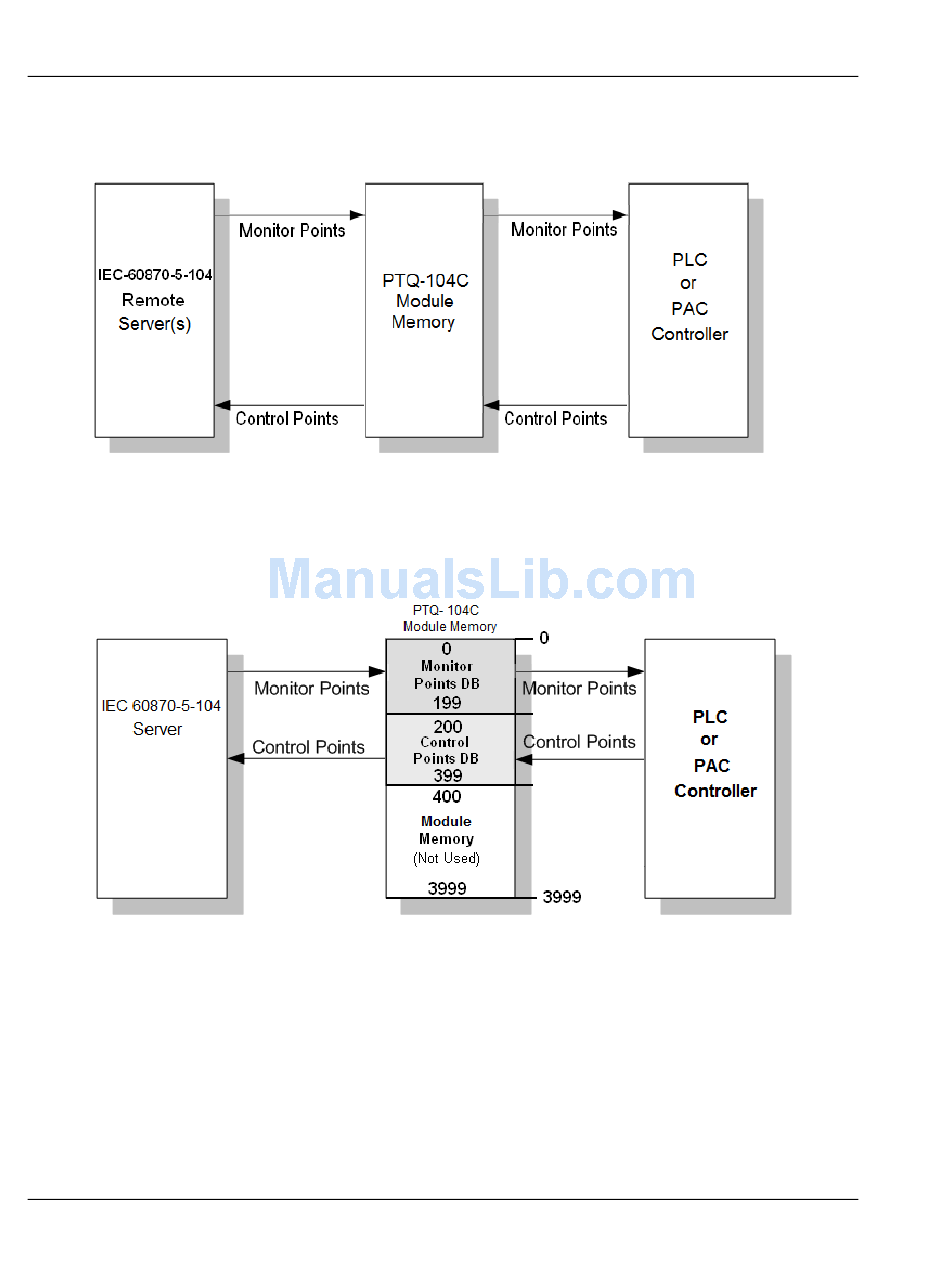

4 Make sure the other parts of the application correctly update the module
database regions associated with the configured 104C data types, as shown
in the following illustration.
All points must be configured in the correct location in the PTQ-104C database in
order to be properly updated by other parts of the application. Make sure to
configure the control points and monitor points in separate areas of the PTQ-
104C database. The following illustration shows an example configuration:
In this example, all monitor points are located between database addresses 0
and 199, and all control points are located between address 200 and 399.
