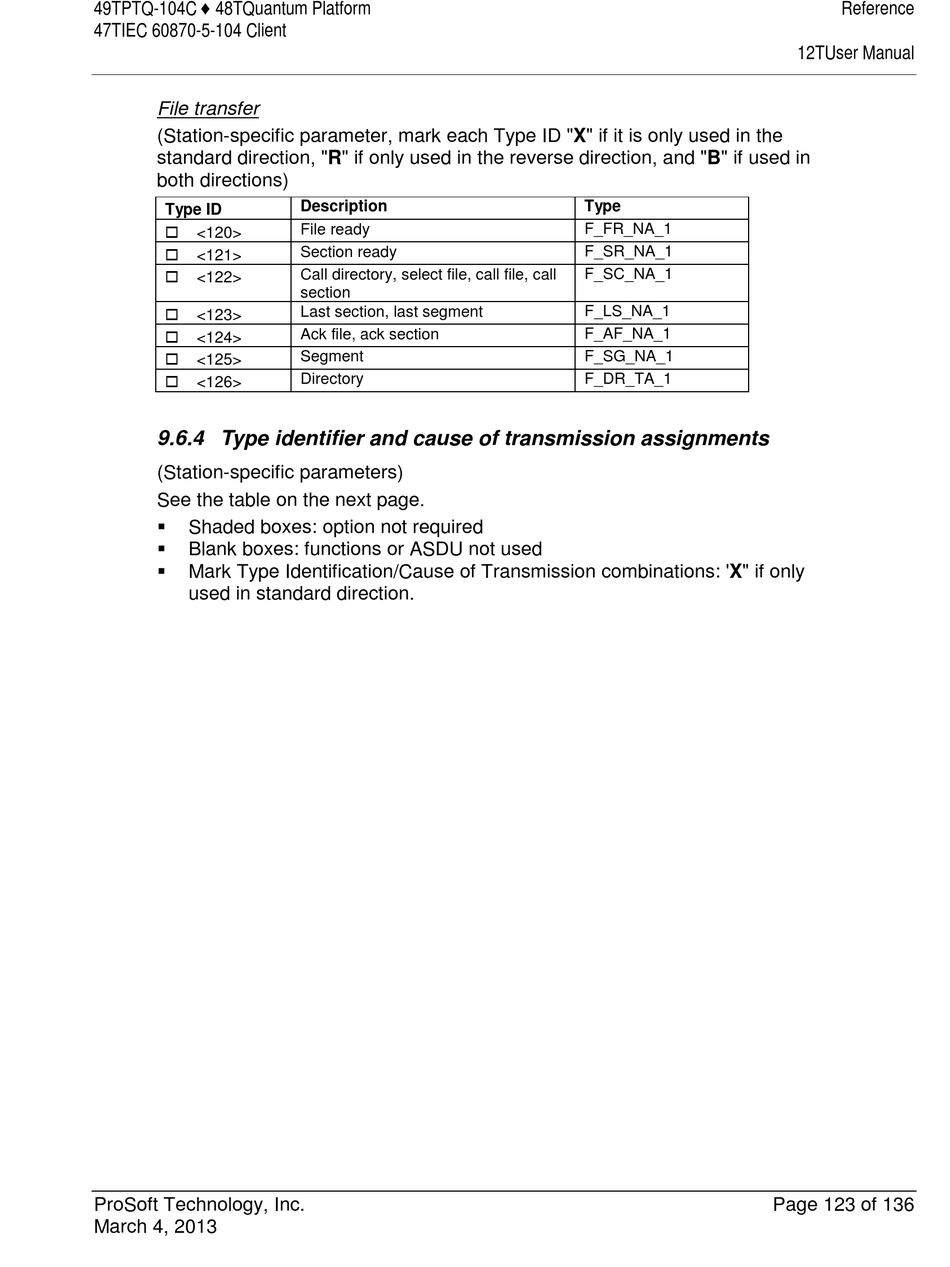

File transfer
(Station-specific parameter, mark each Type ID "X" if it is only used in the
standard direction, "R" if only used in the reverse direction, and "B" if used in
both directions)
Type ID

<120>

<121>

<122>

<123>

<124>

<125>

<126>

9.6.4 Type identifier and cause of transmission assignments

(Station-specific parameters)
See the table on the next page.

Shaded boxes: option not required

Blank boxes: functions or ASDU not used

Mark Type Identification/Cause of Transmission combinations: 'X" if only
used in standard direction.
ProSoft Technology, Inc.
March 4, 2013
Description
File ready
Section ready
Call directory, select file, call file, call
section
Last section, last segment
Ack file, ack section
Segment
Directory
Type
F_FR_NA_1
F_SR_NA_1
F_SC_NA_1
F_LS_NA_1
F_AF_NA_1
F_SG_NA_1
F_DR_TA_1
Reference
