9.3.2 RS-232 Configuration/Debug Port
This port permits the ProSoft Configuration Builder software to view configuration
and status data within the module. The (null modem) cable for communications

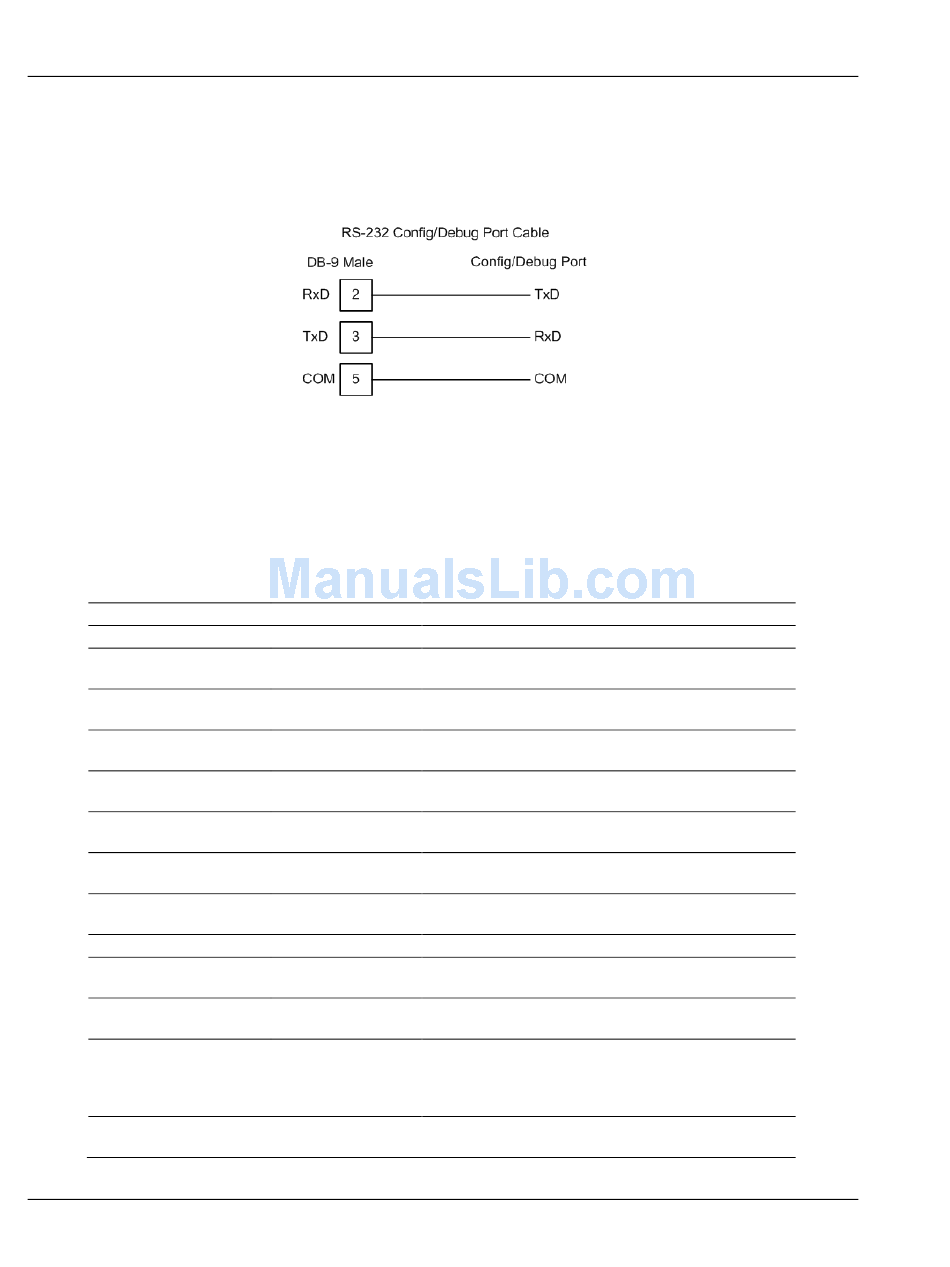

on this port is shown in the following diagram:
9.4

General Module Status (Block 9250) Table

This section contains the block structure of the PTQ-104C module's general
status data from Block 9250. This block is copied automatically to the database
starting at address 4000. To request the complete status block, refer to Read
Status (9250) (page 52).
Word Offset in Block
0
1
2 to 3
4 to 5
6 to 7
8 to 9
10
11
12
13
14
15
16
Page 116 of 136
Data Field(s) Description
Block ID Code Block Identification Code 9250
Scan Count This status value contains a counter incremented
on each scan of the module's main loop.
Product Name This two-word data area contains the text values
representing the product name.
Revision This two-word data area contains the text values
for the revision number.
Op Sys # This two-word data area contains the text values
for the operating system number.
Run Number This two-word data area contains the text values
for the run number.
Read Block Count This word contains the total number of block read
operations successfully executed.
Write Block Count This word contains the total number of block write
operations successfully executed.
Reserved Reserved
Error Block Count This word contains the total number of block
transfer errors.
Event Message This word contains the number of event messages
Count waiting to send to the processor.
Event Message This word contains a value of 0 if the event
Overflow message buffer has not overflowed. If the event
buffer overflows, this word will be set to a value of
1.
Session Count This word contains the number of sessions
configured in the module.
