Start Here
12TUser Manual

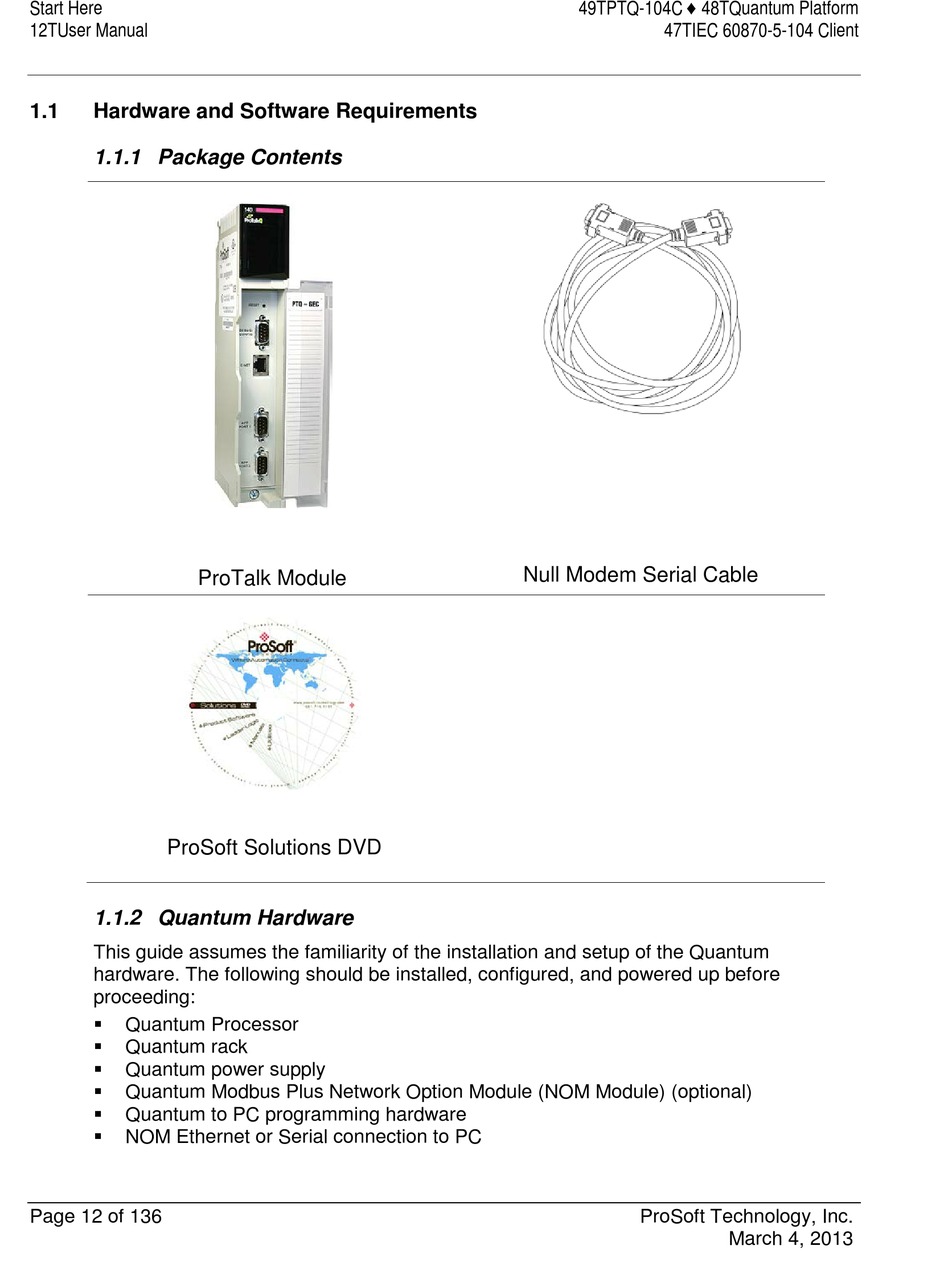

1.1

Hardware and Software Requirements

1.1.1 Package Contents

ProTalk Module
ProSoft Solutions DVD

1.1.2 Quantum Hardware

This guide assumes the familiarity of the installation and setup of the Quantum
hardware. The following should be installed, configured, and powered up before
proceeding:

Quantum Processor

Quantum rack

Quantum power supply

Quantum Modbus Plus Network Option Module (NOM Module) (optional)

Quantum to PC programming hardware

NOM Ethernet or Serial connection to PC
Page 12 of 136
49TPTQ-104C ♦ 48TQuantum Platform
47TIEC 60870-5-104 Client
Null Modem Serial Cable
ProSoft Technology, Inc.
March 4, 2013
