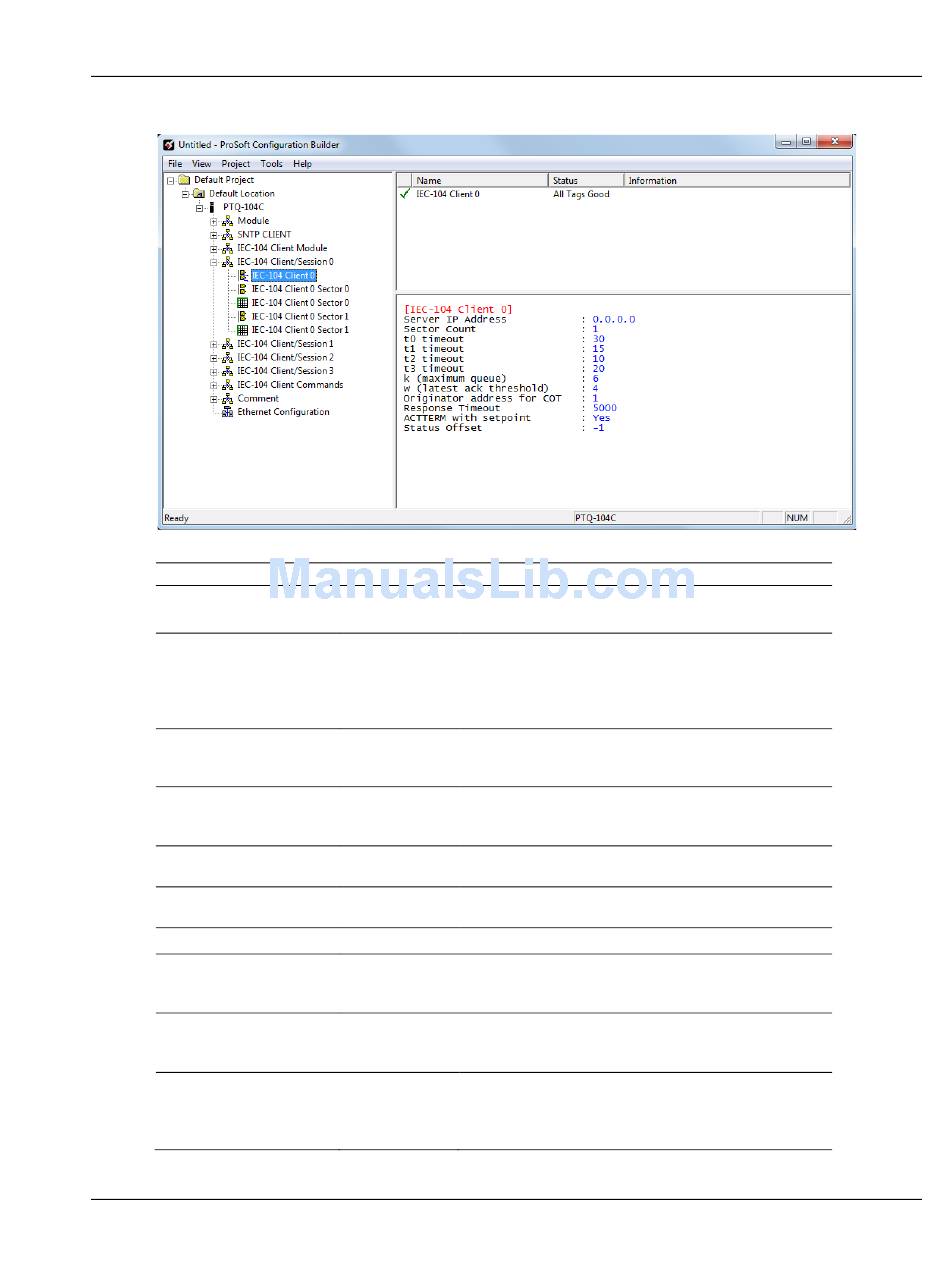

5.6.1 [IEC-104 Client/Session x > IEC-104 Client x] section
Item
Server IP Address
Sector Count
T0 timeout
T1 timeout
T2 timeout
T3 timeout
k (maximum queue)
w (latest ack threshold)
Originator address for
COT
Response Timeout
ProSoft Technology, Inc.
March 4, 2013
Description
Range
IP dotted IP address for the server to connect this client to
notation with 0.0.0.0 used to disable the client.
1 or 2 This parameter sets the number of sectors
contained in this controlled device. The range of
values is from 1 to 2. A sector section is required
for each sector in a session to define its database
and settings.
1 to 30 Number of seconds to wait for connection to be
established with server in seconds (default=30)
1 to 255 Number of seconds until a timeout occurs to send
or test APDU's (Application Protocol Data Units)
(default = 15)
1 to 255 Number of seconds until timeout for non-data
acknowledgement (t2 < t1) (default=10)
1 to 300 Timeout for test frame on idle state in seconds
(default=20)
1 to 12 Maximum number of messages to hold in queue
1 to 8 Threshold value when to send ack. This
parameter should be less than or equal to two-
thirds of k.
0 to 255 Originator address in the COT (Cause of
Transmission) to use in all messages from the
client
500 to 2^32-1 This parameter sets the maximum number of
milliseconds to wait for a confirmation from the
controlled station to a request from this module to
application level messages.
