Case Of Power Restoration Before The End Of The "Shutdown Duration" Counter; Network Management Card - Eaton Network Management Card User Manual

- Low Battery Level
- Low Battery Delay
Utility failure
Utility
Main output
NSM 1 on main
output
Output 1
NSM 2 on output 1
5.2.3

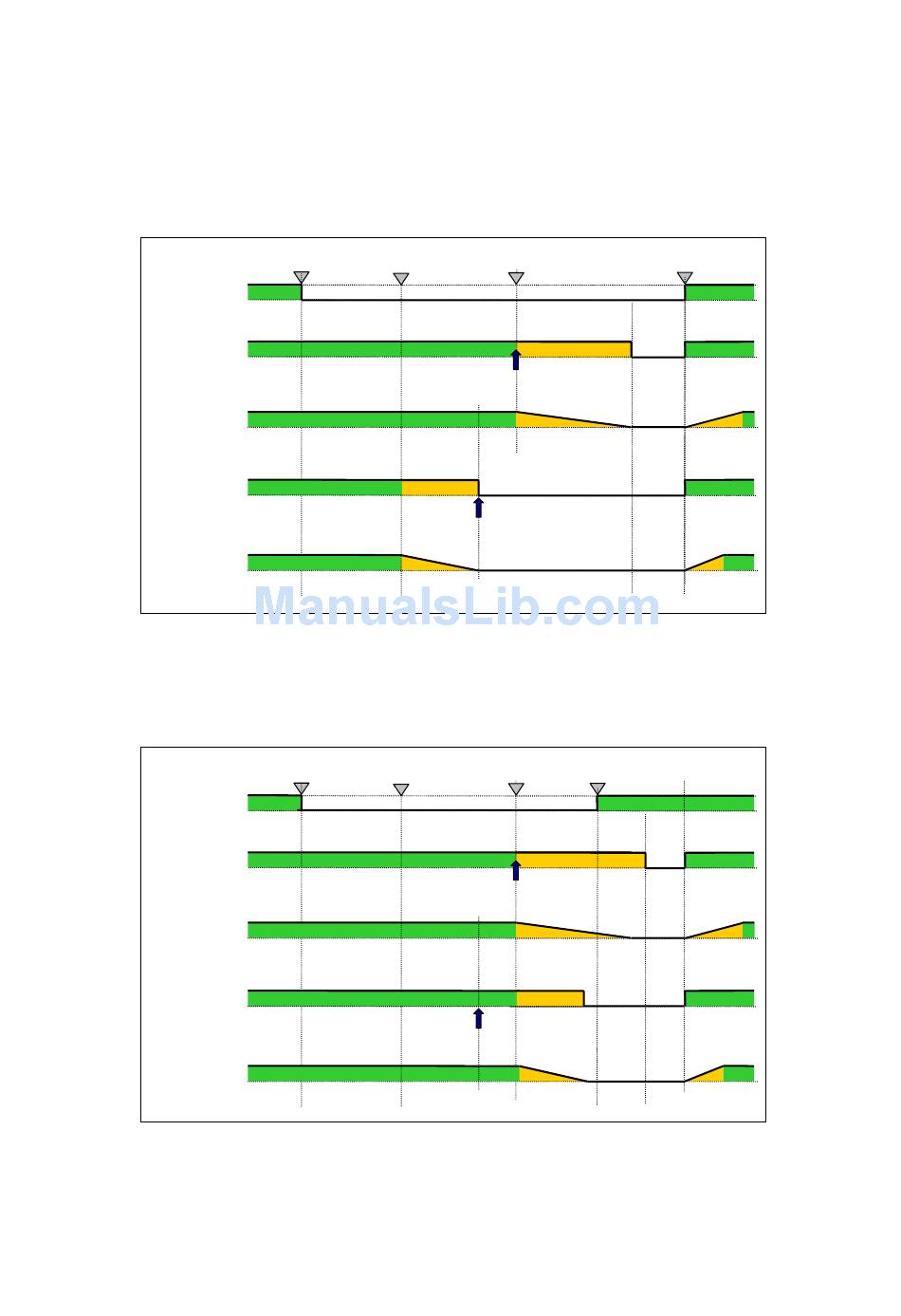

Case of power restoration before the end of the "shutdown duration" counter

If power is restored before the end of the Shutdown Duration, the UPS is shut off after the Shutdown Duration for
a time equal to the forced reboot delay (10 seconds)
Utility failure
Utility
Main output
NSM 1 on main
output
Output 1
NSM 2 on output 1

Network Management Card

Start shutdown main
Start shutdown
output
output 1
Battery capacity
Shutdown
duration output 1
Battery capacity
under: (output 1)
Start shutdown main
Start shutdown
output
output 1
Battery capacity under
Shutdown
duration output 1
Battery capacity
under: (output 1)
– User Manual 34003991XT_EN/EF
Utility restore
Shutdown duration
under:
Utility restore
Shutdown
Forced Reboot
duration
:
Page
76/127
