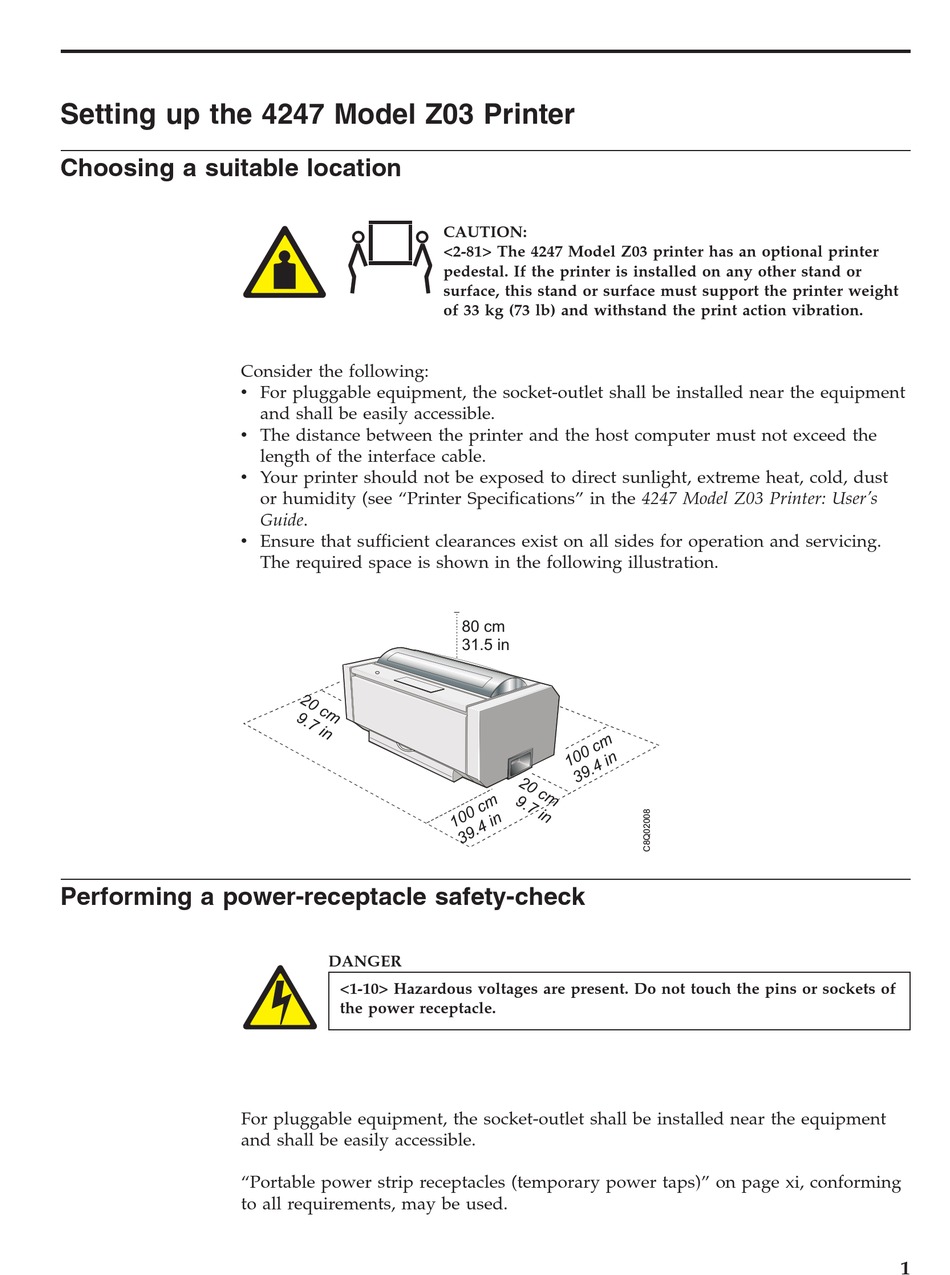

Setting up the 4247 Model Z03 Printer

Choosing a suitable location

Performing a power-receptacle safety-check

Consider the following:
v For pluggable equipment, the socket-outlet shall be installed near the equipment
and shall be easily accessible.
v The distance between the printer and the host computer must not exceed the
length of the interface cable.
v Your printer should not be exposed to direct sunlight, extreme heat, cold, dust
or humidity (see "Printer Specifications" in the 4247 Model Z03 Printer: User's
Guide.
v Ensure that sufficient clearances exist on all sides for operation and servicing.
The required space is shown in the following illustration.
DANGER
<1-10> Hazardous voltages are present. Do not touch the pins or sockets of
the power receptacle.
For pluggable equipment, the socket-outlet shall be installed near the equipment
and shall be easily accessible.
"Portable power strip receptacles (temporary power taps)" on page xi, conforming
to all requirements, may be used.
CAUTION:
<2-81> The 4247 Model Z03 printer has an optional printer
pedestal. If the printer is installed on any other stand or
surface, this stand or surface must support the printer weight
of 33 kg (73 lb) and withstand the print action vibration.
80 cm
31.5 in
1
