Memory Controller Interface; Figure 9-3. Memory Controller Drive Level And Measurement Points - AMD Geode SC1200 Data Book

Electrical Specifications
9.3.1

Memory Controller Interface

The minimum input setup and hold times described in Figure 9-3 (legend C and D) define the smallest acceptable sampling
window during which a synchronous input signal must be stable to ensure correct operation.
V
OH
SDCLK_OUT
SDCLK[3:0]
V
OL
V
OH
OUTPUTS
V
OL
V
IH
SDCLK_IN
V
IL
INPUTS
Legend: A = Maximum Output Delay
B = Minimum Output Delay
C = Minimum Input Setup
D = Minimum Input Hold

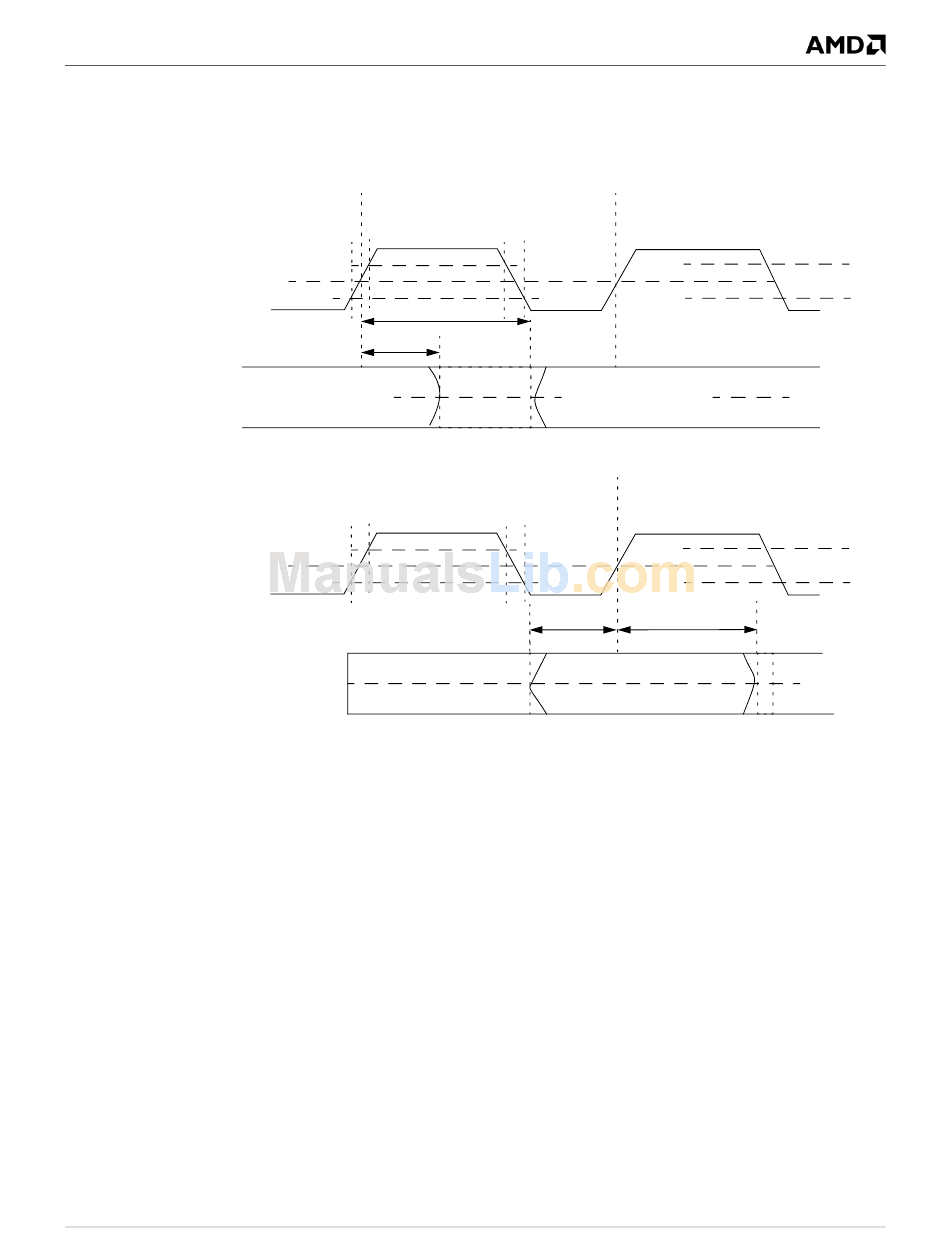

Figure 9-3. Memory Controller Drive Level and Measurement Points
