Signal Definitions
This section defines the signals and describes the external
interface of the SC1200/SC1201 processor. Figure 2-1
shows the signals organized by their functional groups.
Where signals are multiplexed, the default signal name is
System
Interface
Memory
Interface
ACCESS.bus
Interface
Parallel Port/
TFT/VOP Interface
Video Port
Interface
Note: Straps are not the default signal, shown with system signals for reader convenience. However, also listed in figure with the
appropriate functional group.
AMD Geode™ SC1200/SC1201 Processor Data Book
listed first and is separated by a plus sign (+). A slash (/) in
a signal name means that the function is always enabled
and available (i.e., cycle multiplexed).
POR#
X32I
X32O
X27I
X27O
PCIRST#
BOOT16+ROMCS#
LPC_ROM+PCICLK1
TFT_PRSNT+SDATA_OUT
Straps
FPCI_MON+PCICLK0
DID0+GNT0#, DID1+GNT1#
MD[63:0]
MA[12:0]
BA[1:0]
CS[1:0]#
AMD Geode™
RASA#
SC1200/SC1201
CASA#
WEA#
Processor
DQM[7:0]
CKEA
SDCLK[3:0]
SDCLK_IN
SDCLK_OUT
AB1C+GPIO20+DOCCS#
AB1D+GPIO1+IOCS1#
GPIO12+AB2C
GPIO13+AB2D
ACK#+TFTDE+VOPCK
AFD#/DSTRB#+TFTD2+VOPD1
BUSY/WAIT#+TFTD3+VOPD2
ERR#+TFTD4+VOPD3
INIT#+TFTD5+VOPD4
PD7+TFTD13
PD6+TFTD1+VOPD0
PD[5:0]+TFTD[11:6]+VOPD[7:5]
PE+TFTD14
SLCT+TFTD15
SLIN#/ASTRB#+TFTD16
STB#/WRITE#+TFTD17
VPD[7:0]
VPCKIN

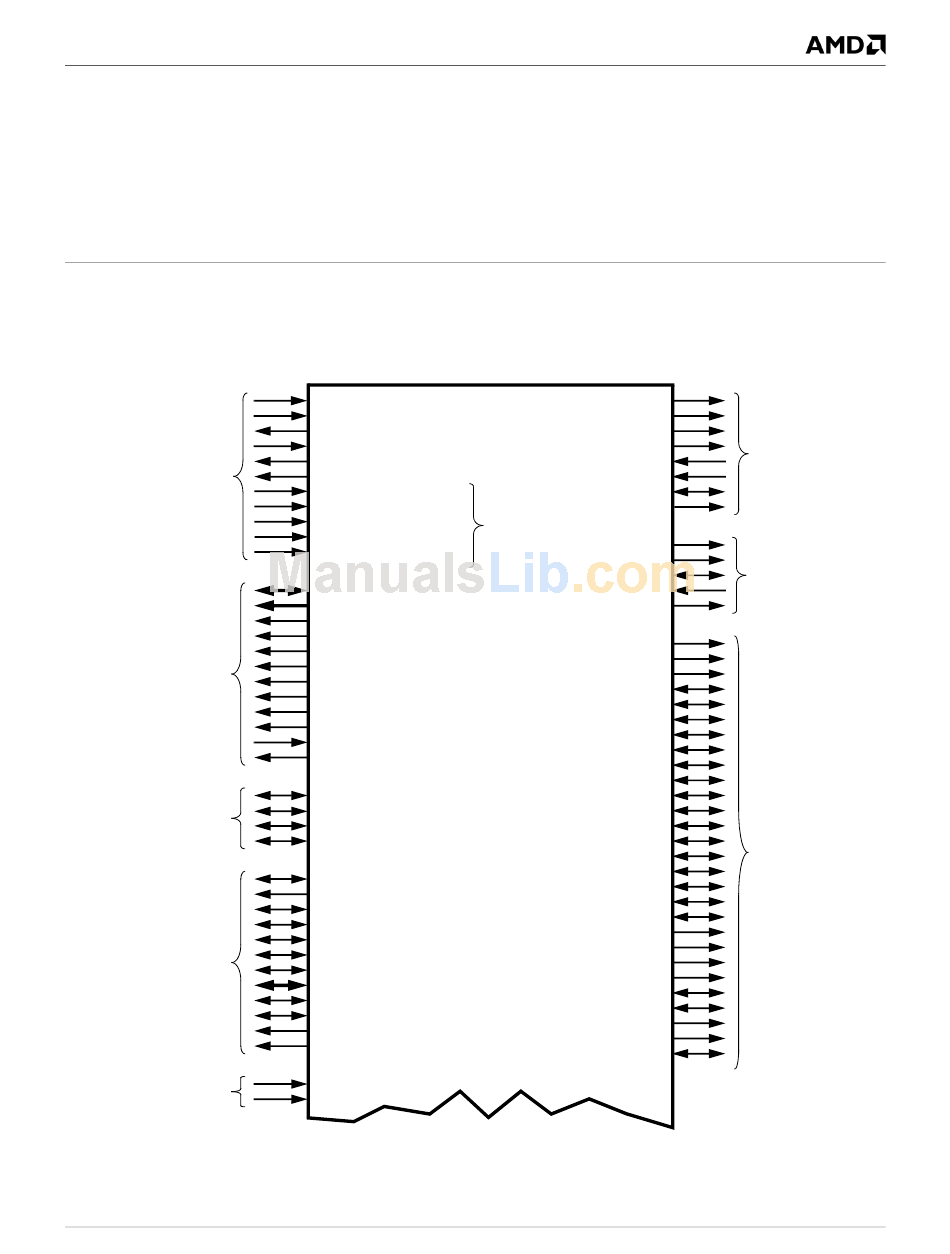

Figure 3-1. Signal Groups

32579B

3.0Signal Definitions

CVBS+Cr+TVB
SVY+Cb+TVR+CVBS
SVC+Cr+Cb+TVB+TVR
CVBS+Y+TVG
TVCOMP
TVRSET
TVREF
TVIOM
HSYNC
VSYNC
VREF
SETRES
RED, GREEN, BLUE
IDE_ADDR2+TFTD4
IDE_ADDR1+TFTD2
IDE_ADDR0+TFTD3
IDE_DATA15+TFTD7
IDE_DATA14+TFTD17
IDE_DATA13+TFTD15
IDE_DATA12+TFTD13
IDE_DATA11+GPIO41
IDE_DATA10+DDC_SCL
IDE_DATA9+DDC_SDA
IDE_DATA8+GPIO40
IDE_DATA7+INTD#
IDE_DATA6+IRQ9
IDE_DATA5+CLK27M
IDE_DATA4+FP_VDD_ON
IDE_DATA3+TFTD12
IDE_DATA2+TFTD14
IDE_DATA1+TFTD16
IDE_DATA0+TFTD6
IDE_IOR0#+TFTD10
IDE_IOW0#+TFTD9
IDE_CS0#+TFTD5
IDE_CS1#+TFTDE
IDE_IORDY0+TFTD11
IDE_DREQ0+TFTD8
IDE_DACK0#+TFTD0
IDE_RST#+TFTDCK
IRQ14+TFTD1
3
TV
Interface
CRT
Interface
IDE/TFT
Interface
