2
INSTALLATION AND CONNECTIONS

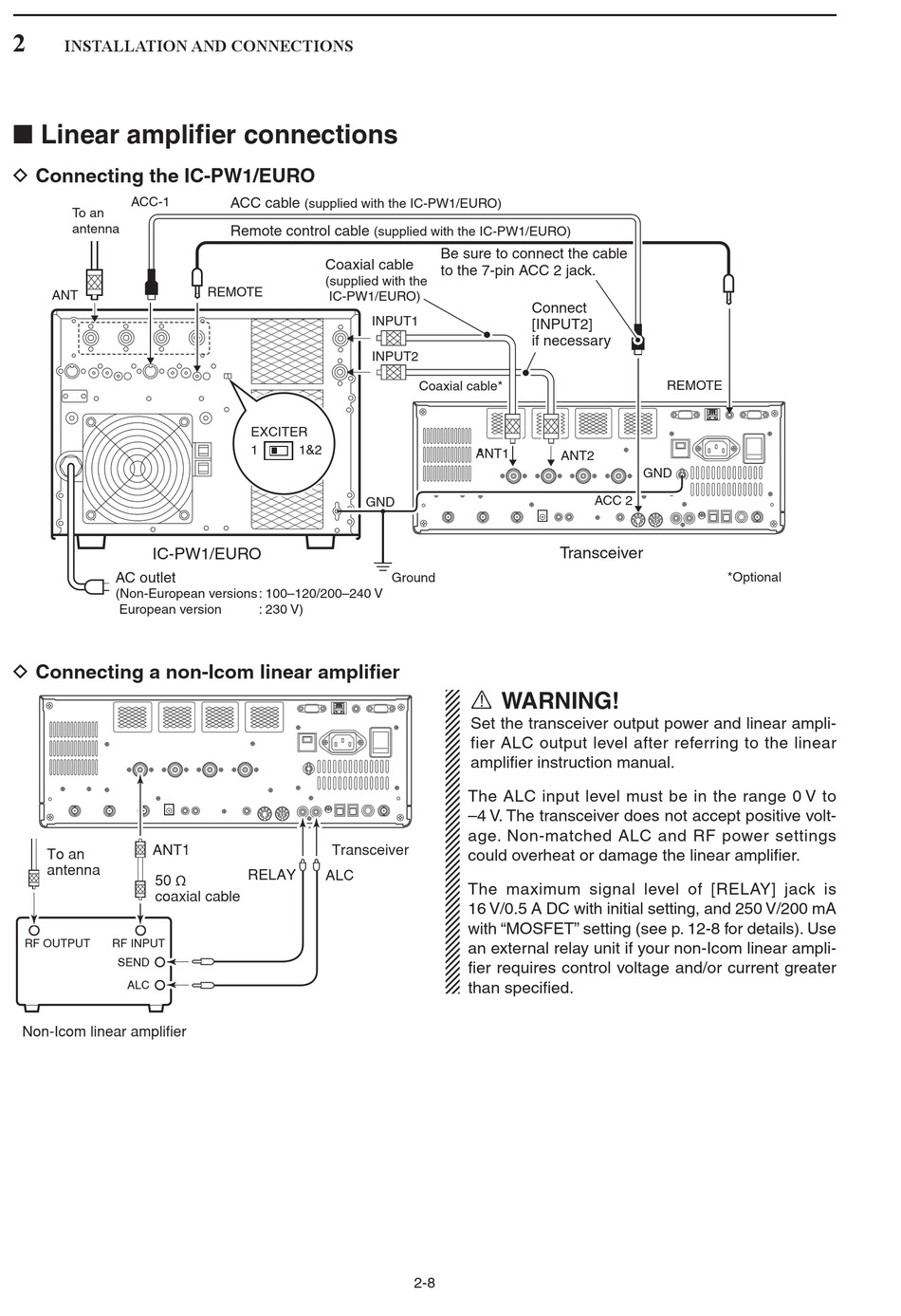

■ Linear amplifier connections

D Connecting the IC-PW1/EURO

ACC-1
To an
antenna
ANT
IC-PW1/EURO
AC outlet
(Non-European versions : 100–120/200–240 V
European version

D Connecting a non-Icom linear amplifier

ANT1
To an
antenna
50 Ω
coaxial cable
RF OUTPUT RF INPUT
SEND
ALC
Non-Icom linear amplifier
ACC cable
(supplied with the IC-PW1/EURO)
Remote control cable
Coaxial cable
(supplied with the
REMOTE
IC-PW1/EURO)
INPUT1
INPUT2
EXCITER
1 1&2
GND
: 230 V)
Transceiver
RELAY ALC
(supplied with the IC-PW1/EURO)
Be sure to connect the cable
to the 7-pin ACC 2 jack.
Connect
[INPUT2]
if necessary
Coaxial cable*
ANT1
Ground
R WARNING!
Set the transceiver output power and linear ampli-
fier ALC output level after referring to the linear
amplifier instruction manual.
The ALC input level must be in the range 0 V to
–4 V. The transceiver does not accept positive volt-
age. Non-matched ALC and RF power settings
could overheat or damage the linear amplifier.
The maximum signal level of [RELAY] jack is
16 V/0.5 A DC with initial setting, and 250 V/200 mA
with "MOSFET" setting (see p. 12-8 for details). Use
an external relay unit if your non-Icom linear ampli-
fier requires control voltage and/or current greater
than specified.
2-8
REMOTE
ANT2
GND
ACC 2
Transceiver
*Optional
