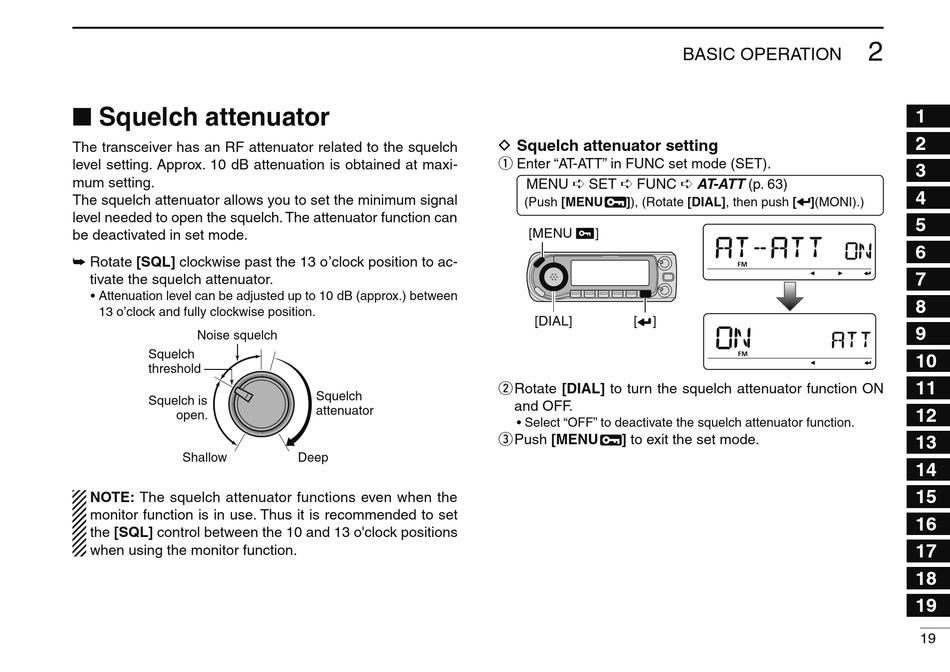

Squelch attenuator

The transceiver has an RF attenuator related to the squelch
level setting. Approx. 10 dB attenuation is obtained at maxi-
mum setting.
The squelch attenuator allows you to set the minimum signal
level needed to open the squelch. The attenuator function can
be deactivated in set mode.
Rotate [SQL] clockwise past the 13 o'clock position to ac-
tivate the squelch attenuator.
• Attenuation level can be adjusted up to 10 dB (approx.) between
13 o'clock and fully clockwise position.
Noise squelch
Squelch
threshold
Squelch is
open.
Shallow
NOTE: The squelch attenuator functions even when the
monitor function is in use. Thus it is recommended to set
the [SQL] control between the 10 and 13 o'clock positions
when using the monitor function.
Squelch
attenuator
Deep
D Squelch attenuator setting
q Enter "AT-ATT" in FUNC set mode (SET).
MENU SET FUNC
(Push [MENU ]), (Rotate [DIAL], then push [
[MENU ]
[DIAL] [ ]
w Rotate [DIAL] to turn the squelch attenuator function ON
and OFF.
• Select "OFF" to deactivate the squelch attenuator function.
e Push [MENU
] to exit the set mode.
BASIC OPERATION
AT-ATT (p. 63)
](MONI).)
