6 LEDs

In this chapter:
• "Front panel
• "Rear panel
• "Fibre Channel card
• "Beacon mode" on page 66

Front panel LEDs

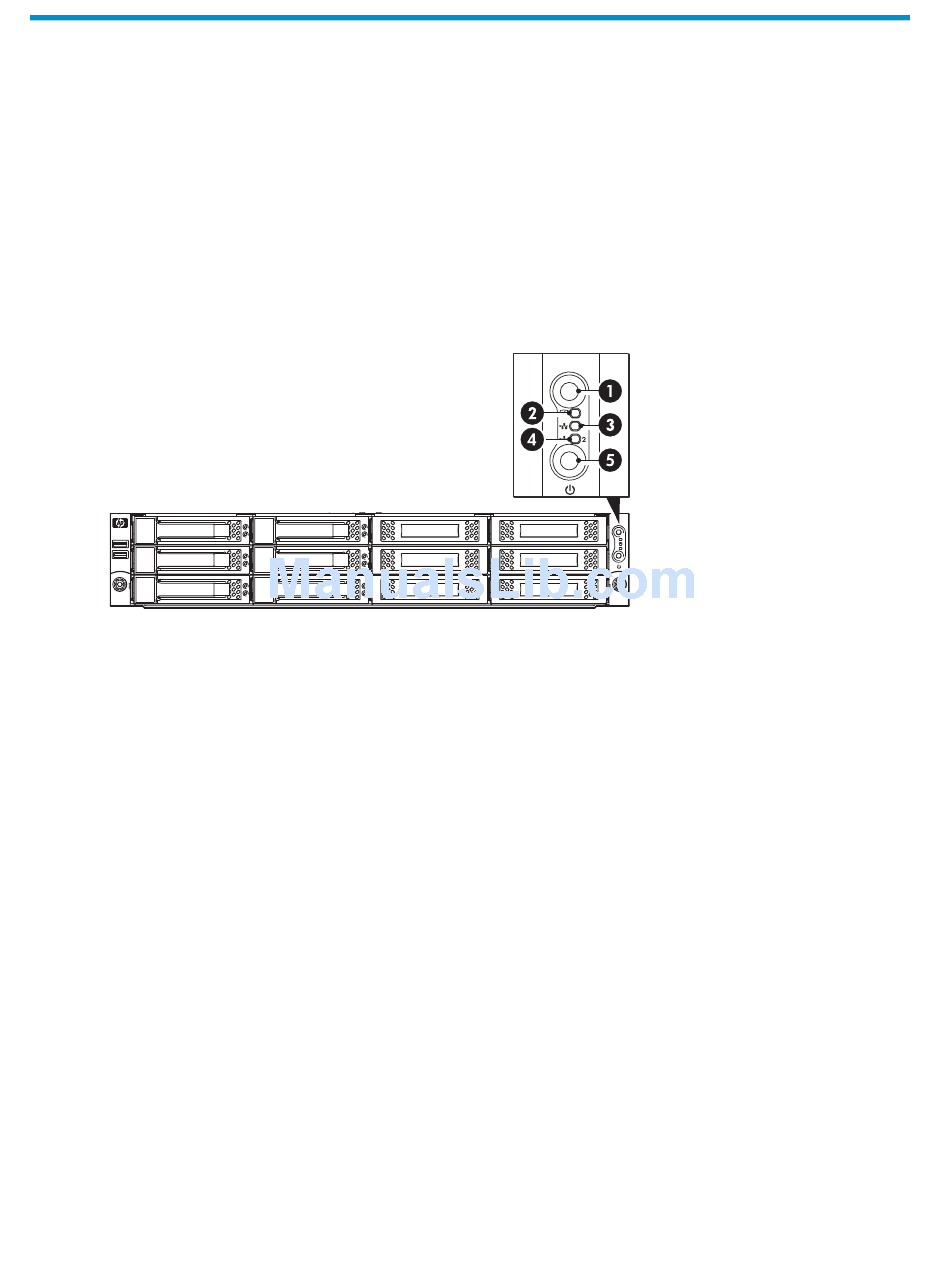

Figure 34 Front view of the HP D2D Backup System
1. HP D2D Beacon LED
2. System Health LED
3. and 4. LAN port LEDS
5. Power On button/LED

Hard drive LEDs

The status of hard drives installed in the server is indicated by the drive activity LED indicator located on
the front panel of the server.
LEDs" on page 63
LEDs" on page 64
LEDs" on page 65
Steady blue: identifies the unit
Steady green: Hardware is performing correctly
Flashing red: fault with the power supply, such as
power supply or fan failure
Flashing green: network connection
Off: no network connection or network not configured
Steady green: Power connected, device ready to use
Steady amber: Device switched off or in hibernation
with power connected
Off: No power connected
D2D Backup SystemHP D2D4004 and HP D2D4009
63
