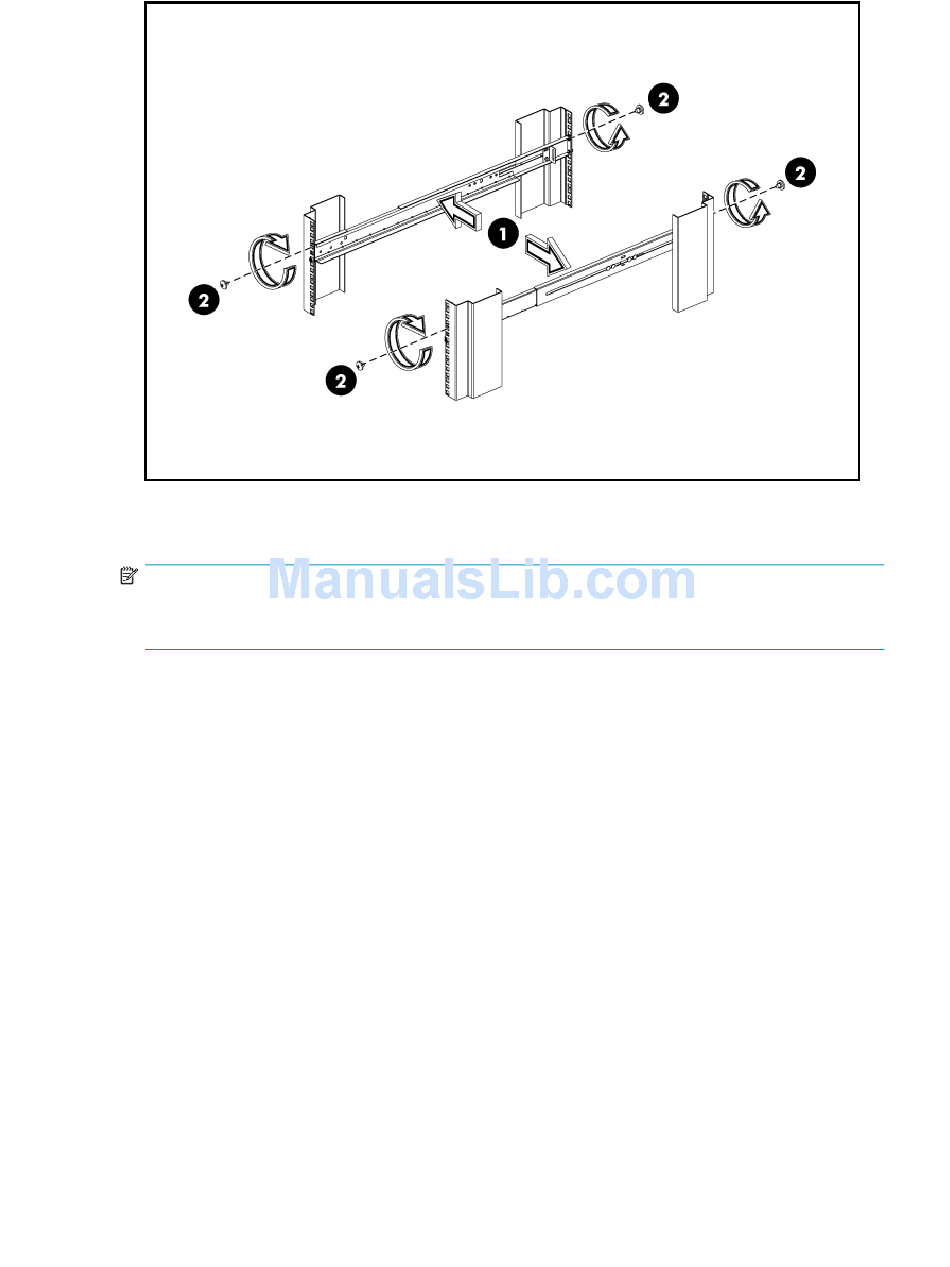

Figure 7 Attach the rails to the rack columns
3.
Slide the HP D2D into position on the rails.
NOTE:
The rear ends of the rails have a CTO bracket that must overlap the chassis tab in order to secure the
HP D2D to the rails.
27
